DN15 Brass Fire Foam Sprinkler Head Fire Fighting Equipment 0.3 MPa
DN15 Brass Fire Foam Sprinkler Head Fire Fighting Equipment 0.3 MPa
DN15 Brass Fire Foam Sprinkler Head Fire Fighting Equipment 0.3 MPa
DN15 Brass Fire Foam Sprinkler Head Fire Fighting Equipment 0.3 MPa
DN15 Brass Fire Foam Sprinkler Head Fire Fighting Equipment 0.3 MPa
DN15 Brass Fire Foam Sprinkler Head Fire Fighting Equipment 0.3 MPa
Specifications
Brand Name :
WINAN
Model Number :
PTS
Certification :
ISO
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 Pieces per month
Delivery Time :
7-15
Packaging Details :
Carton or as required
Material :
Brass
Application :
Fire protection
Inlet :
DN15
Rated Flow :
1.15 LPS
Working Pressure :
0.3 MPa
Expansion Flow :
≥6
Description

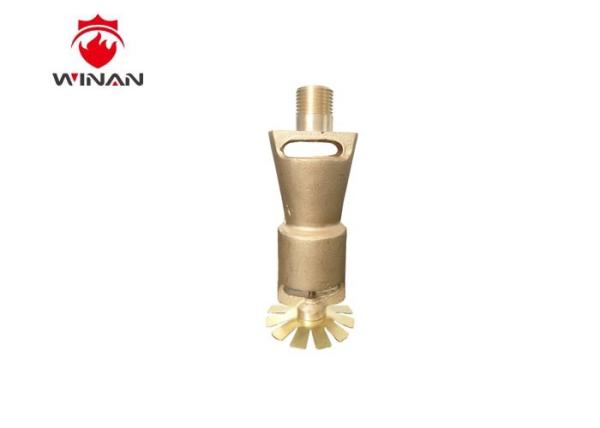

DN15 Brass Fire Foam Water Sprinkler for Foam Fire System , Fire Dual Water Foam Sprinkler Head

Fire Sprinkler Heads:

The reticular foam and water dual sprinkler (PTT/S series) is the specialized units to form and spray air foam, which is mainly used in low expansion extinguishing system. The foam solution conveyed to the nozzle by pipes and inhale the air before the outlet of the nozzle and then become foams to put out the fire. The foam/water combined nozzle can also spray water besides spraying foam.

Working principle:

When the pressure foam solution flows through the lumen of the nozzle, its pressure will be reduced because of throttling, which results in a vacuum and inhales air. The foam solution then becomes foams after dispersed by the nozzle.

Technical parameters

Model Working Pressure (Bar) Solution Flow (L/S)

Expansion

Ratio

3m Height Spray Diameter

(m)
PTS 1.15 3~5 1.15 ≥6 ≥3.3
PTS1.75 1.75
PTW 1.5 1.5
PTW 1.75 1.75

FAQ:

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity iof more than 1 container.

Q3. Do you have any MOQ limit?

A: For conventional products, Low MOQ, OEM products request 30-40days.

Q4. How do you deliver the goods and how long does it take to arrive?

A: We usually deliver mass order by sea and air, delivery time is depended on the carrier, urgent trail order usually deliver by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. The railway is also optional.

Q5. Is it OK to OEM?

A: Yes. Please inform us formally before our production and confirm the design and other requirements firstly.

Q6: Do you offer a guarantee for the products?

A: Yes, we offer 1 year warranty to our products.
