304 SS Net DN15 Fire Sprinkler Heads / Fire Suppression Sprinkler Heads
304 SS Net DN15 Fire Sprinkler Heads / Fire Suppression Sprinkler Heads
304 SS Net DN15 Fire Sprinkler Heads / Fire Suppression Sprinkler Heads
304 SS Net DN15 Fire Sprinkler Heads / Fire Suppression Sprinkler Heads
304 SS Net DN15 Fire Sprinkler Heads / Fire Suppression Sprinkler Heads
304 SS Net DN15 Fire Sprinkler Heads / Fire Suppression Sprinkler Heads
304 SS Net DN15 Fire Sprinkler Heads / Fire Suppression Sprinkler Heads
304 SS Net DN15 Fire Sprinkler Heads / Fire Suppression Sprinkler Heads
Specifications
Brand Name :
WINAN
Model Number :
PTW
Certification :
ISO
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 Pieces per month
Delivery Time :
7-15
Packaging Details :
Carton or as required
Material :
Brass
Application :
Fire protection
Inlet :
DN15
Rated Flow :
1.15 LPS
Working Pressure :
0.3 MPa
Expansion Flow :
≥6
Description

304 SS Net DN15 Fire Sprinkler Heads for Fire Fighting System , Fire Fighting Sprinkler

Fire Sprinkler Heads:

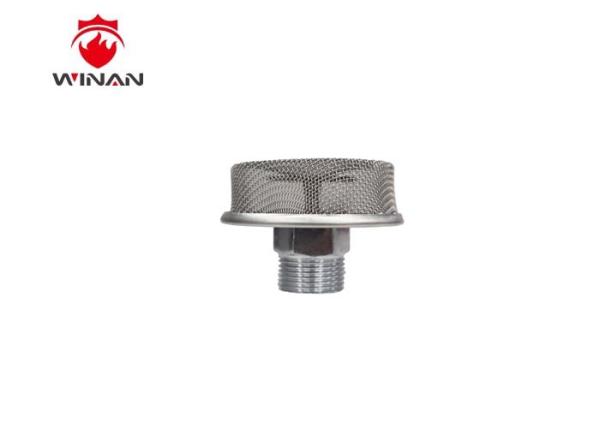

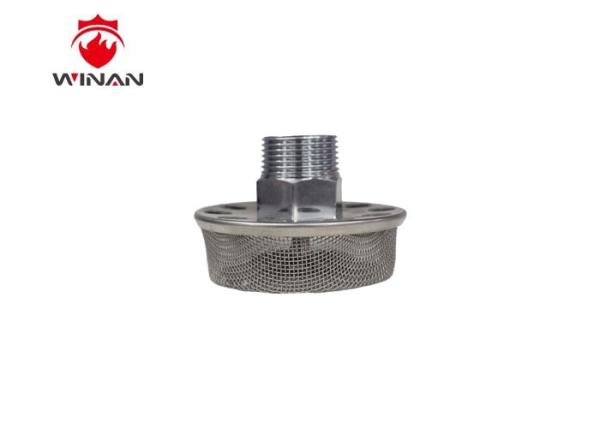

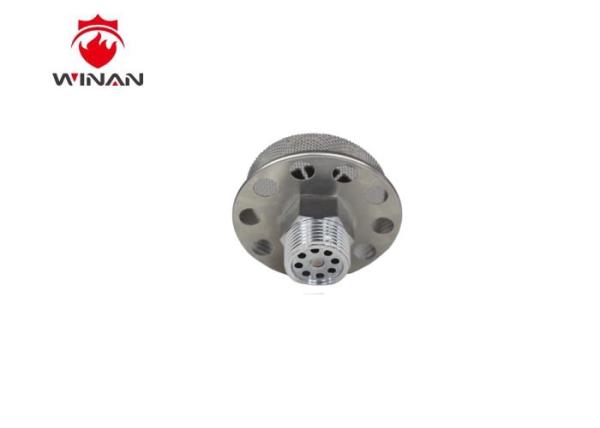

The reticular foam nozzle (PTW series) is the specialized unit to form and spray air foam, which is mainly used in low expansion extinguishing system. Foam proportionate system supply foam solution for these nozzles. When the foam solution was conveyed to nozzles by pipelines, the nozzle inhales air at the outlet to make foams and put out the fire.

Working Principle:

When pressurized foam solution flows through the cavity of the nozzle, its pressure will be reduced because of throttling. That will result in vacuum and inhale air. The foam solution then become foams after dispersed by nozzle.

Technical parameters:

Model

Working Pressure

(MPa)

Flow

(LPM)

 Flow Coefficient

3m Height Spray Diameter

(m)

 Thread Size
PTW1.0 0.3~0.5 60 30 ≥3

R 1/2"

R 3/4"

R 1"
PTW1.2 72 36
PTW1.5 90 45
PTW1.75 105 53

FAQ:

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity iof more than 1 container.

Q3. Do you have any MOQ limit?

A: For conventional products, Low MOQ, OEM products request 30-40days.

Q4. How do you deliver the goods and how long does it take to arrive?

A: We usually deliver mass order by sea and air, delivery time is depended on the carrier, urgent trail order usually deliver by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. The railway is also optional.

Q5. Is it OK to OEM?

A: Yes. Please inform us formally before our production and confirm the design and other requirements firstly.

Q6: Do you offer a guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

304 SS Net DN15 Fire Sprinkler Heads / Fire Suppression Sprinkler Heads
