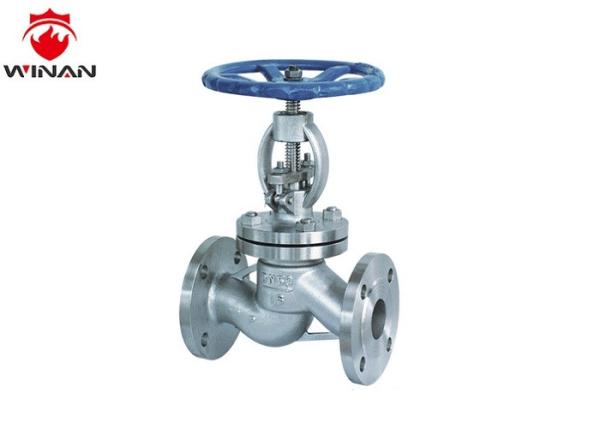

Stainless Steel Fire Fighting Valves Shut Off Globe Stop Valve Manual Operated
Stainless Steel Fire Fighting Valves Shut Off Globe Stop Valve Manual Operated
Stainless Steel Fire Fighting Valves Shut Off Globe Stop Valve Manual Operated
Stainless Steel Fire Fighting Valves Shut Off Globe Stop Valve Manual Operated
Specifications
Brand Name :
WINAN
Model Number :
J41H/Y/W
Certification :
ISO CCC
Place of Origin :
Guangdong,CHINA
MOQ :
5
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
Shipped in 12 days after payment
Packaging Details :
Carton, Pallet, Wooden case or as required
Nominal Pressure :
1.6MPa
Connection Type :
Groove
Medium :
Air , Water , Oil
Drive Way :
Manual
Materia :
Stainless
Port Size :
2-10 Inch
Description

Stainless Steel Shut Off Stop Globe Valve for Firefighting System Manual Operated

Technical parameters

Model Nominal Pressure
(MPa)		 Test Pressure Applicable Temperature
(℃)		 Applicable Medium
Intensity
(Water)(MPa)		 Seal(Water)(MPa)
J41H-16 1.6 2.4 1.8 ≤200 Water,Steam,Oil
J41Y-16 ≤100
J41W-16 ≤200

Features

1. Flat type seat, soft-sealing gate valve at the bottom of the whole basin straight-through flow design, no stranded concave cavity structure, small flow resistance, ensure smooth flow, not easy to deposit sundry, will not cause secondary pollution to the medium.

2. The gate is fully covered with high performance rubber, which completely insulates the core from the fluid.

3. The valve stem nut and the gate are two body type structure, ensure sufficient freedom, open and close agile and have no card resistance phenomenon.

Stainless Steel Fire Fighting Valves Shut Off Globe Stop Valve Manual Operated

Stainless Steel Fire Fighting Valves Shut Off Globe Stop Valve Manual Operated

Company Information

Our company now has a large area of industrial workshops of more than 10000 square meters. We possess all kinds of advanced producing equipments, sophisticated manufacturing process and modernized testing center. Our products contain foam system, sprinkler system, fire monitors, fire hydrant, water mist system and valves.Winan fire-fighting passed the ISO9001:2000 Quality Management System Certification in 2001 and we also passed the CCC Product Quality Certification of Ministry of Public Security fire products in 2004. Products manufactured by Winan fire-fighting were assessed as the “Chinese high-quality brand-name products" by Chinese Quality Management Juries. The company was assessed as the “AAA" honest enterprise by Ministry of Commerce Economic Academy and it is the member of Chinese Fire Protection Association.

FAQ

1. Do you offer a free sample for your clients?

Yes, we can offer you a free sample.

2. What's the MOQ of your products?

MOQ is ONE pcs/set.

3. Are you a manufacturer with your own factory?

Yes, we are the manufacturer for more than 20 years

4. What's your payment terms?

We accept T/T, L/C, Western Union, Paypal, etc.

5. How long is the delivery time?

Usually around 12 days after payment.

6. Can you accept OEM?

Yes, we do customized design for our clients.
