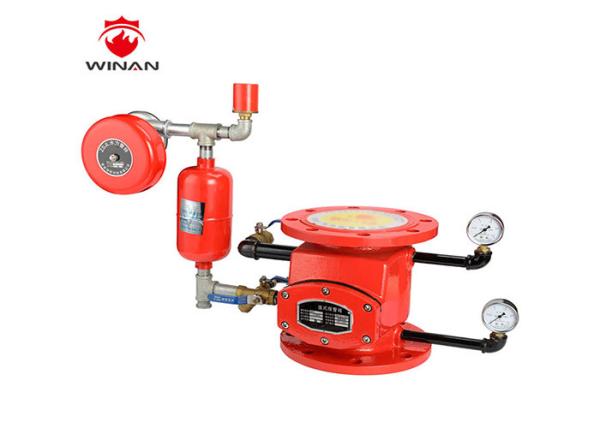

Wet Alarm Check Valve With Pressure Switch For Fire Alarm System
Wet Alarm Check Valve With Pressure Switch For Fire Alarm System
Wet Alarm Check Valve With Pressure Switch For Fire Alarm System
Wet Alarm Check Valve With Pressure Switch For Fire Alarm System
Specifications
Brand Name :
WINAN
Certification :
CCCF/ISO
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
30-45
Packaging Details :
crate
Nominal Diameter :
Dn80 Dn100, Dn150, Dn200
Rated Working Pressure :
1.2MPa or 1.6MPa
Sprinkler System Type :
Wet Type
Matched Sprinkler :
Closed
Model Number :
ZSFZ
Color :
Red
Description

Wet Alarm Check Valve For Fire Alarm System

Wet Alarm Check Valve Introduction:

The ZSFZ series wet alarm valve is a check valve that only allows water flows unidirectionally and
drive the matching part to alarm at prescribed pressure and flow. It constitutes the sprinkler
system with water flow inductor, pressure switch and sprinklers. This valve is divided into two sides
by a valve flap. The above side is connected with system pipeline ant the underside is connected
with water supply. The valve flap will open only when the pressure between the two parts reach a
certain level.


Working Principle:
The alarm valve is always on a set condition the system side is full of pressurized water. The heat
sensitive component on the sprinkler will blast and spray automatically when there is fire
somewhere. Thus the pressure at system side will reduce and then valve flap opens because of
pressure difference. One hand the water supplied to system side, on the other hand a small part of
water flows to delayer and reach water motor alarm finally to make it alarm. The pressure switch
turns pressure signal to electric signal and start fire pump and auxiliary fire-fighting equipments to
put out the fire. Water flow inductor will also work and show the position of fire.

Advantages

1. Widely use in office, school, kitchen and warehouse;
2. Work by temperature sensitive;
3. Vairous types to choose;
4. Easy install and use.
5. OEM and ODM available

Characteristics and Functions:

Model ZSFZ
Type Wet fire alarm valve
Material Brass, Cast Iron
Norminal diameter DN100,DN150, DN200.
Norminal working pressure 12bar~16bar
Strength test pressure 4.8Mpa
Flux(l/min) 15s
Structure Safety fire alarm system
Power Hydraulic fire alarm system
Pressure High Pressure fire alarm system

Parameters:

Model Norminal Diameter(mm) Norminal Working Pressure(MPa) Body Height(mm) Flange Outer Diameter (mm) Water Pressure Reduced Drive Time(s)
ZSFZ100 DN100 1.2~1.6 250 220 <0.07
<15

ZSFZ150		 DN150 1.2~1.6 270 285 <0.07
<15

ZSFZ200		 DN200 1.2~1.6 370 340 <0.07
<15

Wet Alarm Check Valve With Pressure Switch For Fire Alarm System

FAQ

1. Do you offer free sample for your clients?

Yes, we offer free sample for many of the products

2. What's the MOQ of your products?

Our MOQ is one (1) piece/set.

3. Are you manufacturer with your own factory?

Yes, we are the manufacturer for more than 20 years

4. What's your payment terms?

We accept T/T, L/C, Western Union, Paypal,etc.

5. How long is the delivery time?

Usually around 15 days after payment.

6. Do you have technical support?

Yes, we have a professional engineering team.

7. Do you have warranty?

Yes, all products have one year warranty.

8. Can you accept OEM?

Yes, we do customized design for our clients.

What we can do for you?

1)Brass fire hydrant valve;
2)Professional manufacturer;
3) We can supply these prodocts in different sizes
4) Good fire hydrant price

(5) We can offer ISO 9001-2015 certification.

(6) We can offer fast delivery time and good service.
