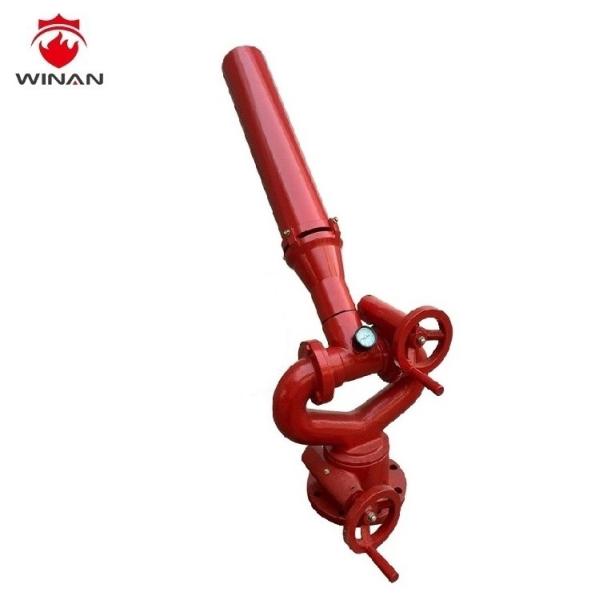

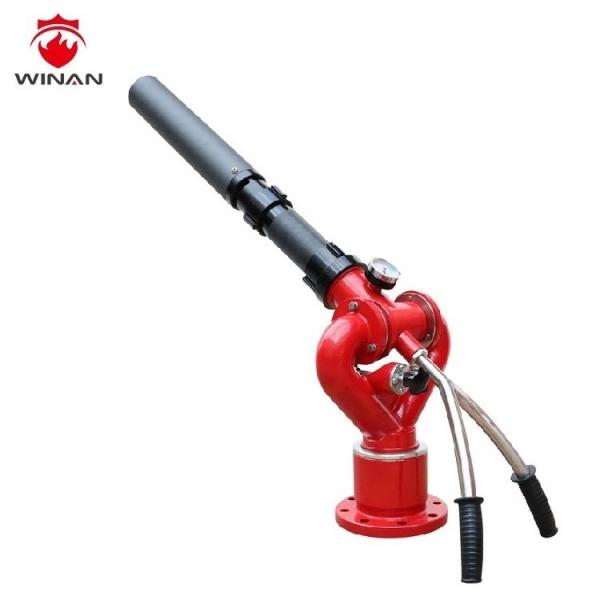

Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range
Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range
Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range
Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range
Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range
Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range
Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range
Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range
Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range
Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range
Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range
Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range
Specifications
Brand Name :
WINAN
Model Number :
PLKD
Certification :
ISO CCC
Place of Origin :
Guangdong, China
MOQ :
1 Set/Sets customized
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Set/Sets per Month
Delivery Time :
Shipped in 10 days after payment
Packaging Details :
Carton, Pallet, Wooden case or as required
Product name :
Electric Control Foam/Water Dual Fire Monitor
Working pressure :
5~16Bar
Pitching Rotation :
-70~80 Degree
Horizontal Rotation :
330 Degree
Flow Range :
30-200L/S
Range :
50~110m
Color :
Red
Application :
Fire fighting emergency rescue
Description

Electric Control Foam / Water Dual Fire Monitor / Cannon , Foam Fire Fighting Equipment

Product Description

PLKD series fire water cannon is a new type of multi-functional fire extinguishing equipment with high pressure and high strength material combination. It can be equipped on various fire trucks, fire boats, fixed fire turrets and fire pipes. The gun nozzle adopts the principle of diversion flow, large flow, concentrated water flow, long range and many functions. It can be used for DC and spray injection. The flow rate can be adjusted within the range of (20~50L/S) according to requirements. Convenient, the gun body can be horizontally rotated and tilted up and down, and can realize the functions of positioning and locking, which is beneficial for the operator to evacuate the scene and implement unmanned operation.

Technical parameters

Model No. Working Pressure (Mpa) Flow
(L/S)		 Range Pitching Rotation Horizontal Rotation
Foam (m) Water (m)
PLKD 30 0.5~1.2 30 ≥55 ≥50 -70°+80° 330°
PLKD 40 40 ≥60 ≥55
PLKD 50 50 ≥65 ≥60
PLKD 60 0.7~1.4 60 ≥70 ≥65
PLKD 70 70 ≥75 ≥70
PLKD 80 80 ≥80 ≥75
PLKD 90 0.8~1.4 90 ≥85 ≥80
PLKD 100 100 ≥90 ≥85
PLKD 120 120 ≥95 ≥90
PLKD 150 0.8~1.6 150 ≥100 ≥95
PLKD 180 180 ≥105 ≥100
PLKD 200 200 ≥110 ≥105

Applicable places:
These products was widely use in big shopping mall office,hospital,air,port, train station,convention center,library,cinema,gymnasium,warehouse, wholesale market and other tall and big space.

Features


1) Rotating the flow regulating sleeve 8, the hook of the throttle positioning block can be inserted into the corresponding slot of the flow value to adjust the flow rate;
2) Rotate the spray water spray adjustment sleeve 7 clockwise to adjust to the DC injection state and counterclockwise to adjust to the spray state;
3) Turn the operating handle 1 to adjust the spray direction. If the person leaves, just lock the handle 4;
4) When spraying, it should be sprayed by the wind, and the fire performance is better and fully exerted.

Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow RangeRescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow RangeRescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow RangeRescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow RangeRescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range

Company Information

The Shenzhen Winan Industrial Development Co., Ltd. was set up in 1995 with registered capital of 13,680,000RMB. We specialized in manufacturing fire-fighting Equipment for 20 years and we devote to provide clients with high quality & reliable products.

The company now has a large area of industrial workshops of more than 10000 square meters. We possess all kinds of advanced producing equipments, sophisticated manufacturing process and modernized testing center. Our products contain foam system, sprinkler system, fire monitors, fire hydrant, water mist system and valves.

Winan fire-fighting passed the ISO9001:2000 Quality Management System Certification in 2001 and we also passed the CCC Product Quality Certification of Ministry of Public Security fire products in 2004. Products manufactured by Winan fire-fighting were assessed as the “Chinese high-quality brand-name products" by Chinese Quality Management Juries. The company was assessed as the “AAA" honest enterprise by Ministry of Commerce Economic Academy and it is the member of Chinese Fire Protection Association.

Products made by Winan fire-fighting had won a number of national patents after decades of innovation and we believe that we can do better in our industry!

Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range

Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range

Certification

Rescue Ground Monitor Fire Fighting Water Cannon 30-200L/S Flow Range

FAQ:

1. Do you offer free sample for your clients?

?????Yes, we can offer you free sample.

2. What's the MOQ of your products?

?????MOQ is ONE pcs/set.

3. Are you manufacturer with your own factory?

?????Yes, we are the manufacturer for more than 20 years

4. What's your?payment terms?

?????We accept T/T, L/C, Western Union, Paypal,etc.

5. How long is the?delivery time?

?????Usually around 15 days after payment.

6.?Can you accept OEM?

????Yes, we do customized design for our clients.
