Specifications
Brand Name :
WINAN
Model Number :
PLKD
Certification :
ISO CCC
Place of Origin :
Guangdong, China
MOQ :
1 Set/Sets customized
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Set/Sets per Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Carton, Pallet, Wooden case or as required
Product name :
Electric Control Foam/Water Dual Fire Monitor
Working pressure :
0.5~1.6MPa
Flow Range :
30-200L/S
Range :
50~110m
Horizontal Rotation :
330 Degree
Pitching Rotation :
-70~80 Degree
Color :
Red
Application :
Fire fighting emergency rescue
Description

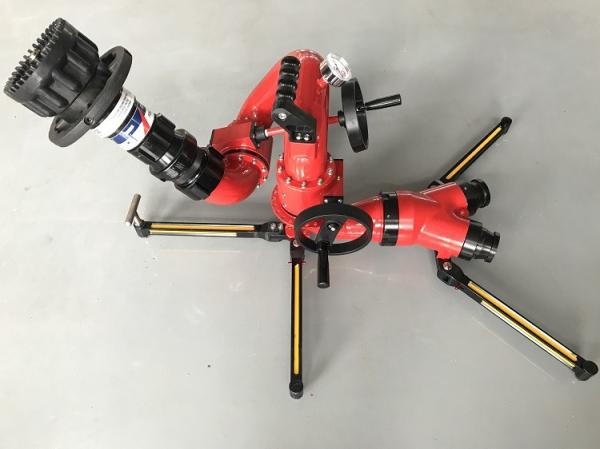

PLKD series Electric Control Fire Fighting Water Cannon , Fire Fighting Monitors
Product Description
PLKD series fire water cannon is a new type of multi-functional fire extinguishing equipment with high pressure and high strength material combination. It can be equipped on various fire trucks, fire boats, fixed fire turrets and fire pipes. The flow rate can be adjusted within the range of according to requirements. Convenient, the gun body can be horizontally rotated and tilted up and down, and can realize the functions of positioning and locking, which is beneficial for the operator to evacuate the scene and implement unmanned operation.The gun nozzle adopts the principle of diversion flow, large flow, concentrated water flow, long range and many functions.

Technical parameters

Model No. Working Pressure (Mpa) Flow
(L/S)		 Range Pitching Rotation Horizontal Rotation
Foam (m) Water (m)
PLKD 30 0.5~1.2 30 ≥55 ≥50 -70°+80° 330°
PLKD 40 40 ≥60 ≥55
PLKD 50 50 ≥65 ≥60
PLKD 60 0.7~1.4 60 ≥70 ≥65
PLKD 70 70 ≥75 ≥70
PLKD 80 80 ≥80 ≥75
PLKD 90 0.8~1.4 90 ≥85 ≥80
PLKD 100 100 ≥90 ≥85
PLKD 120 120 ≥95 ≥90
PLKD 150 0.8~1.6 150 ≥100 ≥95
PLKD 180 180 ≥105 ≥100
PLKD 200 200 ≥110 ≥105



Features


1) Rotate the spray water spray adjustment sleeve 7 clockwise to adjust to the DC injection state and counterclockwise to adjust to the spray state;
2) Rotating the flow regulating sleeve 8, the hook of the throttle positioning block can be inserted into the corresponding slot of the flow value to adjust the flow rate;
3) Turn the operating handle 1 to adjust the spray direction. If the person leaves, just lock the handle 4;
4) When spraying, it should be sprayed by the wind, and the fire performance is better and fully exerted.


Red Fire Fighting Monitors Monitor Nozzle Fire Protection PLKD Series
Red Fire Fighting Monitors Monitor Nozzle Fire Protection PLKD SeriesRed Fire Fighting Monitors Monitor Nozzle Fire Protection PLKD Series

Company Information:

With a history of more than 20 years, Shenzhen Winan Industrial Development Co. Ltd. is a professional manufacturer and exporter who are focusing on designing, developing and manufacturing all kinds of Fire fighting equipment. The company now has a large area of industrial workshops of more than 10000 square meters, located in Shenzhen, China, with convenient transportation access.

All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network around the world.

Certificates:

All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network around the world.

FAQ:

1. Do you offer free sample for your clients?

Yes, we can offer you free sample.

2. What's the MOQ of your products?

MOQ is ONE pcs/set.

3. Are you manufacturer with your own factory?

Yes, we are the manufacturer for more than 20 years

4. What's your?payment terms?

We accept T/T, L/C, Western Union, Paypal,etc.

5. How long is the?delivery time?

Usually around 15 days after payment.

6.Can you accept OEM?

Yes, we do customized design for our clients.
