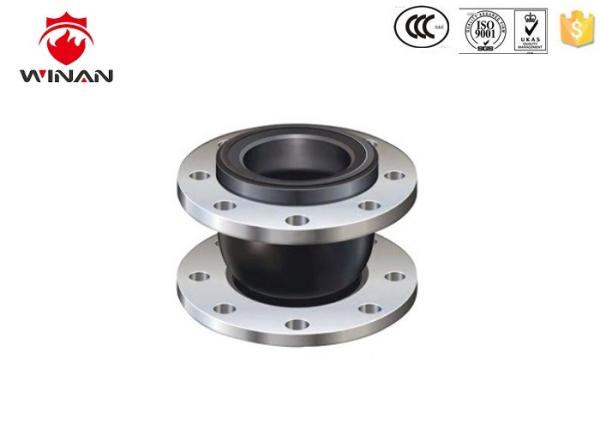

High Pressure Fire Check Valve Single Spheroid Rubber Joint Flange Connection
High Pressure Fire Check Valve Single Spheroid Rubber Joint Flange Connection
High Pressure Fire Check Valve Single Spheroid Rubber Joint Flange Connection
High Pressure Fire Check Valve Single Spheroid Rubber Joint Flange Connection
Specifications
Brand Name :
WINAN
Model Number :
KXT
Certification :
CCC ISO
Place of Origin :
Guangdong, China
MOQ :
10
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Set/Sets per Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Carton, Pallet, Wooden case or as required
Nominal Diameter :
DN32-DN3000
Working Pressure :
300PSI
Nominal Pressure :
1.0MPa or 1.6MPa
Connection :
Flange
Material :
Cast Iron, Ductile Iron, Stainless Steel, Carbon Steel
Color :
blue, red, purple or Customer Requied
Description

Single Spheroid Rubber Joint Flange Connection , High Pressure , Good Flexibility

Introduction:

Of the product from within the gel, nylon cord fabric, the gel outside the compound rubber ball and metal-flange component sets. Pressure is high with gocxJ flexibility and displacement shock-absorbing noise, the installation of flexible, and can be widely used in water drainage, Circxilating water, HVAC, and paper, petrochemicals, shipbuilding, cxxnpressors, pumps, fans and other pipeline systems.

This vavle is suitable on system such as petroleum, chemical industry, foodstuff, medicine, papemaking, water and electricity, shipping, plumbing, the smelting and sources of energy etc the pipe route. Can regard on gas, liquid, semifluid as well as solid powder pipes and power lines and the container of many kinds of corrosiveness and non-corrosiveness adjusts and dams a river the equipment use. Especially extensively being in high layer of building fire protection system reaches other to show in the pipes and power lines system of valve of vavle switch state.

Technical data

Model Work pressure MPa(kg.f/cm2)

Blasting pressure MPa(kg.f/cm2)

Vacuum

kPa(mmHg)

 ℃ Apply temperature

Applicable medium
JGD( I ) 1.6 4.8 100(750)

-20—115 (-30+250 > -20 ~+115

(-30 Up to +250 special)

Air, compressed air, water, water, water, oil, acid and other chemical substances
JGD(II) 1.0 3.0 86.7(650)
JGD(III) 0.6 1.8 53.3(400)

Parameter:

High Pressure Fire Check Valve Single Spheroid Rubber Joint Flange Connection

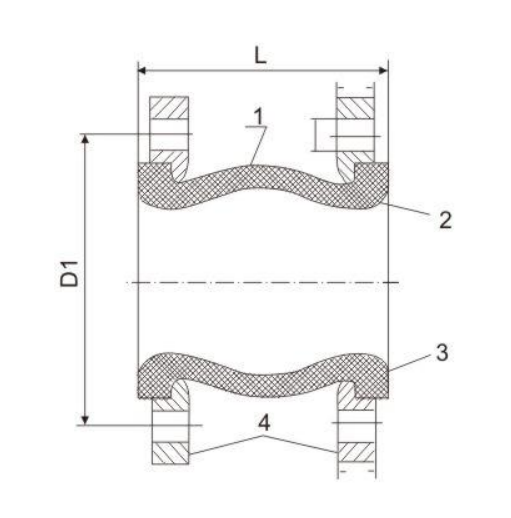

Main dimensions

DN(mm) L Length L (mm)

Axial displacement (mm)

 Radial displac- ement (mm) D (mm)

Actuators

(a,.a2)

 Pressure level cxxrespondlng flange bolts from the center hole size
伸长 Elongation Compresaon 0.6MPa 1.0MPa 1.6MPa
32 95 6 9 9 150 90 100 100
40 95 6 10 9 150 100 110 110
50 105 7 10 10 150 110 125 125
65 115 7 13 11 150 130 145 145
80 135 8 15 12 150 150 160 160
100 150 10 19 13 150 170 180 180
125 165 12 19 13 150 200 210 210
150 180 12 20 14 150 225 240 240
200 210 16 25 22 150 280 295 295
250 230 16 25 22 150 335 350 355
300 245 16 25 22 150 395 400 410
350 255 16 25 22 150 445 460 470
400 255 16 25 22 150 495 515 525
450 255 16 25 22 150 550 565 585
500 255 16 25 22 150 600 620 650
600 260 16 25 22 150 705 725 770
700 320 16 25 22 150 810 840 840
800 340 16 25 22 150 920 950 950
900 370 16 26 22 150 1020 1050 1050
1000 400 18 26 24 150 1120 1160 1170
1200 420 18 28 24 150 1340 1380 1390
1400 456 20 28 26 150 1560 1590
1600 500 20 28 26 150 1760 1820
1800 550 20 35 40 150 1970 2020
2000 550 25 35 40 150 2180 2230
2200 550 25 35 30 150 2390
2400 550 25 35 30 150 2600
2600 550 25 35 30 150 2810
2800 550 25 35 30 150 3020
3000 550 25 35 30 150 3220

Main Material:

Product Name
Single Spheroid Rubber Joint
Material
Cast Iron, Ductile Iron, Stainless Steel, Carbon Steel
Color
Blue, red, purple or customer require
Standard
API609, AWWA C504, DIN3354 F4, GB/T12238, JIS 10K, BS5155
Connection
Flange
Media
water, gas, oil etc.
Size
1 1/4''-- 120''
Certificate
ISO9001-2008

FAQ:

Q1. What is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.

Q2: What is your main market?
A: Western Europe, North America, Janpan,,

Q3: Can I get samples from your factory?
A: Yes, sample is free, but the express charge is yours.

Q4: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.

Q5.Are you manufacturer or trading company?
A.We are manufacture(cast iron) and trade company.

Q6. what’s the payment term?
A. We accept T/T, L/C,WESTERN UNION

Q7. What’s the delivery time ?
Pattern needs 30-60 days, sample need 30-50 days.
The first order need 60 days

Q8. What is the standard of package?
A. Export standard package or special package according to customer requirement.

Q9. Do you accept OEM business?
A. Yes, we are OEM supplier.

Q10. what kind of certificate you have ?
A .We have ISO9001, ISO14001,PED,SGS
