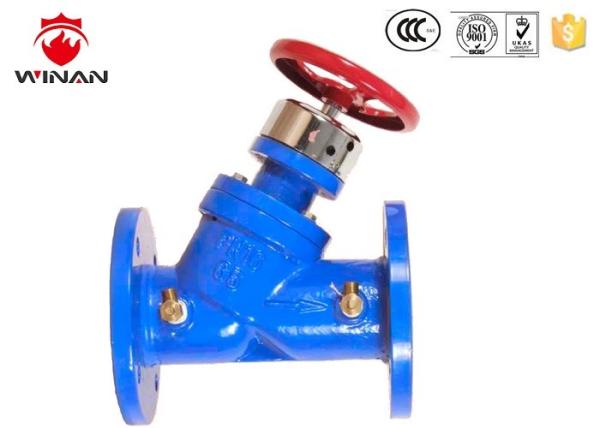

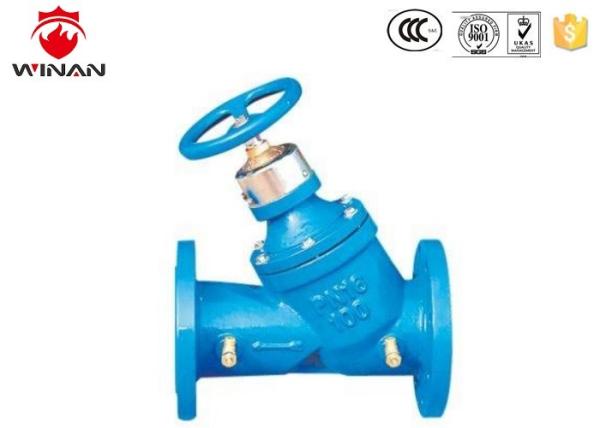

Energy Saving Fire Fighting Valves Lock Show Word Balanced Cast / Ductile Iron Material
Energy Saving Fire Fighting Valves Lock Show Word Balanced Cast / Ductile Iron Material
Energy Saving Fire Fighting Valves Lock Show Word Balanced Cast / Ductile Iron Material
Energy Saving Fire Fighting Valves Lock Show Word Balanced Cast / Ductile Iron Material
Specifications
Brand Name :
WINAN
Model Number :
SP
Certification :
CCC ISO
Place of Origin :
Guangdong, China
MOQ :
10
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 Set/Sets per Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Carton, Pallet, Wooden case or as required
Nominal Diameter :
DN20-DN500
Working Pressure :
300PSI
Nominal Pressure :
1.0MPa or 1.6MPa
Connection :
Flange
Color :
blue, red, purple or Customer Requied
Material :
Cast Iron, Ductile Iron, Stainless Steel, Carbon Steel
Standard :
ANSI BS DIN JIS
Application :
General
Description

New Energy Saving Valve , Lock Show Word Balanced Valve Flange Connection

Introduction:

The valve is a kind of balance valve, suitable for all kinds of liquid pipeline system, is a kind of more ideal new energy saving valve. The valve is equipped with a digital display, can be directly transferred to any location, the valve is mainly used in industrial and civil building heating pipeline system. Currently in some network system there is a hydraulic imbalance, balance valve provides means for understanding this problem, it can accurately adjust pressure drop and flow, to improve the flow condition of liquid in the pipe network system, achieve balance of liquid pipeline and energy conservation. In the transformation of dual network engineering, application of this valve can save energy and achieve better results.

This vavle is suitable on system such as petroleum, chemical industry, foodstuff, medicine, papemaking, water and electricity, shipping, plumbing, the smelting and sources of energy etc the pipe route. Can regard on gas, liquid, semifluid as well as solid powder pipes and power lines and the container of many kinds of corrosiveness and non-corrosiveness adjusts and dams a river the equipment use. Especially extensively being in high layer of building fire protection system reaches other to show in the pipes and power lines system of valve of vavle switch state.

Technical data

PN(MPa) Nominal pressure 1.6
C Working temperature <80
Suitable mediums Water

Meterial of main parts

Part name Meterial
Body,bonnet Cast iron, cast steel
Disc Copper, stainless steel, cast iron, cast steel
Stem Stainless steel

Parameter:

Energy Saving Fire Fighting Valves Lock Show Word Balanced Cast / Ductile Iron Material

Main dimensions and weight

DN (mm) D D1 D2 n-Фd b L H
20 105 75 55 4-Ф14 15 150 120 2.5
25 115 85 65 4-Ф14 15 160 125 3.5
32 140 100 78 4-Ф18 18 180 130 4.8
40 150 110 85 4-Ф18 18 200 140 7
50 160 125 100 4-Ф18 20 230 195 9.5
65 185 145 120 4-Ф18 20 270 220 13.5
80 200 160 135 4-Ф18 22 310 260 15
100 220 180 155 4-Ф18 24 320 320 18
125 250 210 185 4-Ф18 26 380 350 25
150 285 240 210 8-Ф23 28 410 380 41
200 340 295 265 12-Ф23 30 533 400 55
250 405 355 320 12-Ф25 30 620 450 85
300 460 410 375 12-Ф25 30 698 480 125
350 520 470 435 16-Ф25 34 787 500 180
400 580 525 485 16-Ф30 36 864 550 380
450 640 585 - 20-Ф30 40 914 580 580
500 705 650 608 20-Ф30 45 978 610 675

Main Material:

Product Name
Lock Show Word Balanced Valve
Material
Cast Iron, Ductile Iron, Stainless Steel, Carbon Steel
Color
Blue, red, purple or customer require
Standard
API609, AWWA C504, DIN3354 F4, GB/T12238, JIS 10K, BS5155
Connection
Flange
Media
water, gas, oil etc.
Size
1/2''-- 20''
Certificate
ISO9001-2008

Energy Saving Fire Fighting Valves Lock Show Word Balanced Cast / Ductile Iron Material

FAQ:

Q1. What is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.

Q2: What is your main market?
A: Western Europe, North America, Janpan,,

Q3: Can I get samples from your factory?
A: Yes, sample is free, but the express charge is yours.

Q4: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.

Q5.Are you manufacturer or trading company?
A.We are manufacture(cast iron) and trade company.

Q6. what’s the payment term?
A. We accept T/T, L/C,WESTERN UNION

Q7. What’s the delivery time ?
Pattern needs 30-60 days, sample need 30-50 days.
The first order need 60 days

Q8. What is the standard of package?
A. Export standard package or special package according to customer requirement.

Q9. Do you accept OEM business?
A. Yes, we are OEM supplier.

Q10. what kind of certificate you have ?
A .We have ISO9001, ISO14001,PED,SGS
