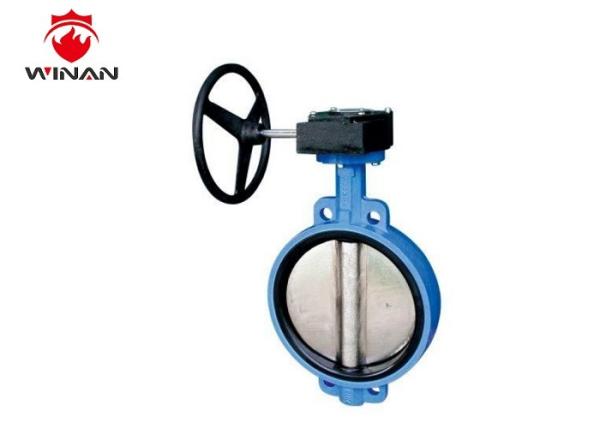

Worm Actuated Fire Fighting Valves Wafer Connection With Worm Gear Operated
Worm Actuated Fire Fighting Valves Wafer Connection With Worm Gear Operated
Specifications
Brand Name :
WINAN
Model Number :
DF
Certification :
CCC ISO
Place of Origin :
Guangdong,CHINA
MOQ :
10
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000 Set/Sets per Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Carton, Pallet, Wooden case or as required
Nominal Diameter :
DN50-DN1200
Working Pressure :
300PSI
Item name :
Wafer Type Butterfly Valve
Nominal Pressure :
1.0MPa or 1.6MPa
Design Standard :
API609
Test Standard :
API598
Connection :
Wafer
Color :
blue, red, purple or Customer Requied
Description

Worm Actuated Wafer Type Butterfly Valve With Worm Gear Operated Slim Disc Cast Iron

Introduction:

The disc of the wafer type butterfly valve is installed in the diameter direction of the pipe. In the cylindrical passage of the butterfly valve body, the disc-shaped disc rotates around the axis, and the rotation angle is between 0°-90°, which can play the role of flow regulation. When the disc rotates to 90°, the valve reaches the maximum. Opening degree.

The clip-on butterfly valve is simple in structure, small in size and light in weight, and consists of only a few parts. Moreover, it can be quickly opened and closed by only rotating 90°, and the operation is simple, and the valve has good fluid control characteristics.

Parameter:

Worm Actuated Fire Fighting Valves Wafer Connection With Worm Gear Operated

主要尺寸表Main dimensions

DN L L1 D D1 D2 D3 D4 4> H1 H2 H3 Z- Ф d
(mm) 1.0 1.6 1.0 1.6
50 42 160 52.9 125 125 92 77 57 12.6 70 147 60 4-Ф23 4-Ф23
65 44.7 160 64.5 145 145 110 77 57 12.6 76 155 60 4-Ф23 4-Ф23
80 45.2 160 78.8 160 160 121 77 57 12.6 92 164 60 8-Ф20 8-Ф20
100 52.1 160 104 180 180 153 92 70 15.78 106 175 60 4-Ф23 4-Ф23
125 54.4 160 123.3 210 210 176 92 70 18.92 119 194 60 4-Ф23 4-Ф 23
150 55.8 160 155.6 240 240 207 92 70 18.92 132 206 60 4-Ф25 4-Ф25
200 60.6 210 202.5 295 295 259 115 89 22.10 162 237 72 4-Ф25 4-Ф25
250 65.6 210 250.5 350 355 316 115 89 28.45 200 282 72 4-Ф28 4-Ф28
300 77 210 301.6 400 410 370 140 108 31.6 225 311 75 4-Ф28 4-Ф 28
350 76.5 210 333.3 460 470 405 140 108 31.6 263 335 75 4-Ф30 4-Ф30
400 86.5 320 389.6 515 525 470 197 159 33.15 309 400 126 4-Ф30 4-Ф30
450 105.6 320 440.5 565 585 522 197 159 38 328 420 126 4-Ф30 4-Ф30
500 132 320 491.6 620 650 566 197 159 41.15 361 480 126 4-Ф30 4-Ф33
600 152 340 592.5 725 770 693 276 216 50.65 459 560 127 4-Ф30 4-Ф36
700 163 380 695 840 840 801 300 254 63.5 520 624 167 24-Ф30 24-Ф36
800 188 380 794.7 950 950 907 300 254 63.5 590 680 167 24-Ф33 24-Ф39
900 203 400 864.7 1050 1050 1016 300 254 75 656 720 193 28-Ф33 28-Ф39
1000 216 400 965 1160 1170 1123 300 254 85 720 800 193 28-Ф36 28-Ф42
1200 276 450 1158 1380 1390 1455 350 298 105 844 941 28- Ф40 28-Ф49

Main Material:

Product Name
worm actuated butterfly valve
Material
Cast Iron, Ductile Iron, Stainless Steel, Carbon Steel
Color
Blue, red, purple or customer require
Standard
API609, AWWA C504, DIN3354 F4, GB/T12238, JIS 10K, BS5155
Connection
Wafer/Clamp
Media
water, gas, oil etc.
Size
2''-- 48''
Certificate
ISO9001-2008

Worm Actuated Fire Fighting Valves Wafer Connection With Worm Gear Operated

FAQ:

1. Do you offer a free sample for your clients?

Yes, we can offer you a free sample.

2. What's the MOQ of your products?

MOQ is ONE pcs/set.

3. How long is the delivery time?

Usually around 15 days after payment.

4. Can you accept OEM?

Yes, we do customized design for our clients.

5. Are you a manufacturer with your own factory?

Yes, we are the manufacturer for more than 20 years.

6. What's your payment terms?

We accept T/T, L/C, Western Union, Paypal, etc.
