MAN Chemical Decontamination fire fighting vehicles Single row cabin 90km/H
MAN Chemical Decontamination fire fighting vehicles Single row cabin 90km/H
MAN Chemical Decontamination fire fighting vehicles Single row cabin 90km/H
MAN Chemical Decontamination fire fighting vehicles Single row cabin 90km/H
MAN Chemical Decontamination fire fighting vehicles Single row cabin 90km/H
MAN Chemical Decontamination fire fighting vehicles Single row cabin 90km/H
MAN Chemical Decontamination fire fighting vehicles Single row cabin 90km/H
MAN Chemical Decontamination fire fighting vehicles Single row cabin 90km/H
Specifications
Brand Name :
CXFIRE
Model Number :
SXF5201TXFXX40
Certification :
CCC, CE, EN, NFPA
Place of Origin :
China
MOQ :
1 Unit
Price :
USD300,000-USD350,000
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
1000 units per year
Delivery Time :
8-10 months
Packaging Details :
Standard Export Package and Delivery by Bulk Carrier or Ro-Ro Ship
Total Dimensions :
10350mm×2500mm×3680mm
Total Weight :
20100Kgs with Full Load
Chassis :
6x4 Germany MAN
Engine Power :
480Kw
Seats :
2+4
Superstructure :
Aluminum Alloy Welded Structure
Water Pump :
30L/s at 10bar and 7L/s at 40bar
Water Tank :
4000L
Description

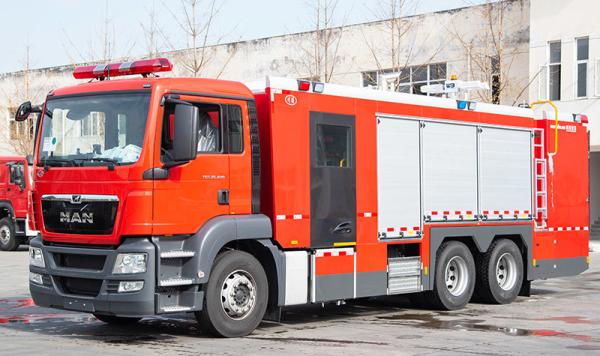

MAN Chemical Decontamination Fire Truck With Generator And Telescopic Light

  • CXFIRE is located in Chengdu of China with an area of 200,000 square meters and 600 staff. The annual output is 1000 units fire fighting vehicles. Through 60 years' development, CXFIRE has become the biggest manufacturer and one-stop solution supplier of fire fighting products in China.

1. Sinotruk HOWO Special Fire Truck with Rescue Equipment

1.1 Dimensions: 10350mm×2500mm×3680mm
1.2 The total mass of full load: 20100kg
1.3 Number of crew: 6
1.4 Maximum speed: 90km/h
1.5 Volume of decontamination tank: 4000kg

2. Chassis

2.1 Manufacturer: Germany MAN Commercial Vehicle AG
2.2 Model: MAN TGS 26.480
2.3 Drive form: 6×4
2.4 Wheelbase: 4500mm+1400mm
2.5 Seats: 2+4
2.6 Engine power: 353/1900 (kW/rpm)
2.7 Rated torque: 2300/1050-1400 (Nm/rpm)
2.8 Gearbox: 16-speed manual gearbox, gear
2.9 Power take-off: full power power take-off
2.10 Fuel tank capacity: 300L fuel tank

3. Superstructure

No. Main Items Technical Parameters
3.1 Cabin
3.1.1 Structure Single row cabin+crew cabin
3.1.2 Seats 2+4, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats
3.2 Standardized Sub-frame
3.2.1 Material High-strength rectangular tube made of special steel
3.2.2 Performance The liquid tank and the sub-frame are connected by elastic connecting seats

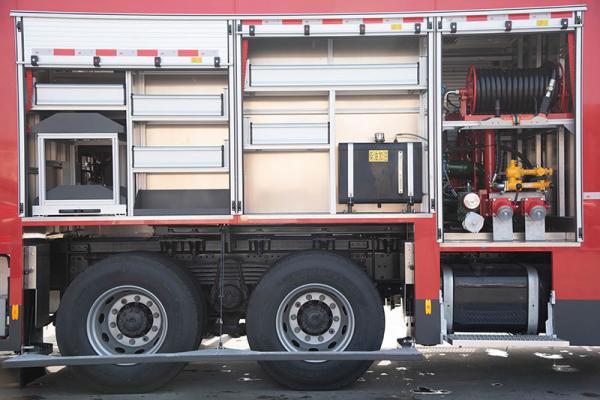

3.3 Compartment
3.3.1 Material High-strength aluminum alloy profiles (Never Rust)
3.3.2 Structure Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear
3.4 Roller Shutter Door
3.4.1 Material Aluminum alloy profiles with anodized surface
3.4.2 Structure With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
3.5 Foot Pedals
3.5.1 Material High quality aluminum alloy
3.5.2 Structure 50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment.
3.6 Superstructure Electric Appliance
3.6.1 Warning Light and Siren Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
3.6.2 Strobe Light Mounted on the both sides of the compartment
3.6.3 External Lighting LED lights are mounted on the both sides of the compartment
3.6.4 Roof Lighting LED lights are mounted on the inside of the roof
3.6.5 Side Indicator Light Inline yellow warning light is mounted on the side of the compartment and pedals
3.7 Generator
3.7.1 Brand Optional
3.7.2 Model Optional
3.7.3 Drive Type Gasoline Generator
3.7.4 Rated Power

12VA
3.7.5 Rated Frequency 50Hz
3.7.6 Rated Voltage 220V/380V
3.7.7 Location In storage compartment
3.8 Telescopic Light
3.8.1 Brand Optional
3.8.2 Model Optional
3.8.3 Power 4x1000W
3.8.4 Lamp Quartz halogen lamp
3.8.5 The Max. Height 7.6m from the ground
3.8.6 Rotation Angle Horizontal:360°, Pitch 120°
3.8.7 Working Voltage 220V
3.8.8 Installation Type On the roof

4. Company Pictures
MAN Chemical Decontamination fire fighting vehicles Single row cabin 90km/H MAN Chemical Decontamination fire fighting vehicles Single row cabin 90km/H MAN Chemical Decontamination fire fighting vehicles Single row cabin 90km/H
