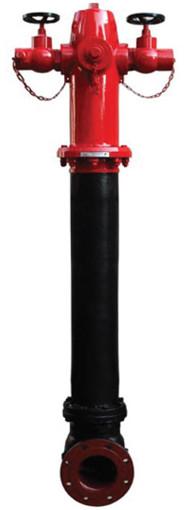

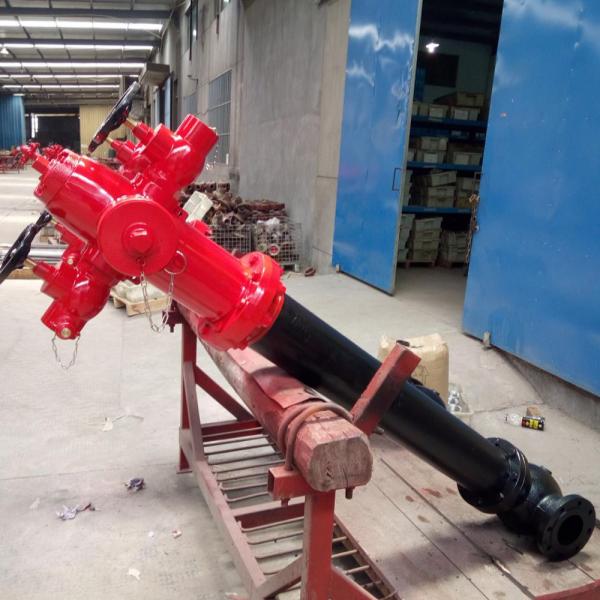

3 Way Dry Hydrant Fire Coupling Cast Iron Material 100mm Flanged Inlet
3 Way Dry Hydrant Fire Coupling Cast Iron Material 100mm Flanged Inlet
3 Way Dry Hydrant Fire Coupling Cast Iron Material 100mm Flanged Inlet
3 Way Dry Hydrant Fire Coupling Cast Iron Material 100mm Flanged Inlet
Specifications
Brand Name :
J&M
Place of Origin :
CHINA
MOQ :
50 PCS
Payment Terms :
L/C, T/T
Delivery Time :
30 Days
Inlet :
100mm, 150mm
Material :
Cast Iron
Description

3 Way Dry Hydrant Fire Coupling Cast Iron Material 100mm Flanged Inlet

Specification:


Inlet:100mm, 150mm

outlet:2x2.5" straight through landing valve+1x4" BSP male thread adaptor

Body material:Cast Iron

Dry barrel design eliminates damage to the hydrant caused by freezing or corrosion of the upper part.

Breakway design to prevent accidents to the hydrants,where only the upper part of the flange will be broken upon impact.

Externally sandblasted for smooth finish,painted red with electrostatic powder coating on the section above ground and double coated with black bituminous paint on the section below the ground.

Barrel length extension kit in different lengths is available on request.

Item no Specification
Model No HY010-006A-00
Inlet 100mm flanged
Outlet 2x21/2”Straight through Landing Valve with cap & chain+1x4”Pumper thread with cap and chain
Test pressure Working pressure 16 bar
Seat Test Pressure 20 bar
Body Test Pressure 30 bar
Paint details Externally sandblasted for smooth finish,painted red with manual
Body material Ductile iron or grey cast iron
