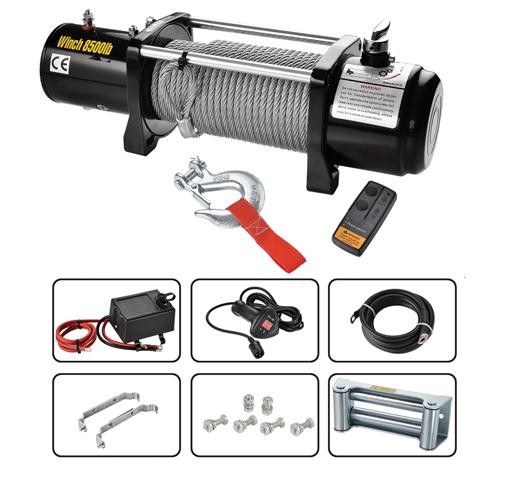

8500lb Sc8500 Truck Garage Equipment Remote Switch Control Two Way
8500lb Sc8500 Truck Garage Equipment Remote Switch Control Two Way
Specifications
Brand Name :
J&M
Model Number :
SC8500
Place of Origin :
China
MOQ :
100 SETS
Payment Terms :
L/C, T/T
Delivery Time :
30 DYAS
Rated line pull: :
8500LBS(3856kgs) single line
Control :
Remote switch,12ft(3.7m)lead
Braking Action :
Two-Way, Automatic In-The-Drum
Fairlead :
4-Way Roller Fairlead
Cable(Dia X L) :
Φ5/16" x94' (Φ8.1mmx28m)
Drum Dimensions :
Φ2.5"x8.8"(Φ63.5mmx224mm)
Description

8500lb Sc8500 Truck Garage Equipment Remote Switch Control Two Way

Specifications:

Rated line pull 8500LBS(3856kgs) single line
Motor 4.0KW/5.5HP 12V, 4.8KW/6.44HP 24V,Series Wound
Control Remote switch,12ft(3.7m)lead
Gear train 3 Stage Planetary Gear reduction ratio 195.8:1
Clutch Sliding Ring Gear
Braking Action Two-way, Automatic In-The-Drum
Drum Dimensions Φ2.5"x8.8"(Φ63.5mmx224mm)
Cable(Dia X L) Φ5/16" x94' (Φ8.1mmx28m)
Fairlead 4-Way Roller Fairlead
Wireless Remote Control Optional
Battery Recommended 650CCA minimum for winching
Battery Leads 2 gauge,72"(183mm) Finish Black powder coat
Overall Dimensions 21.1"x6.3"x8.6"(537mmx160mmx218mm)
Mounting Bolt Pattern 254mmx114.3mm
Packing size 57x19x34.5cm 1PC/CTN
Weight N.W. 35kgs G.W. 37Kgs
Export Markets Europe,North America etc
Standard Met CE
