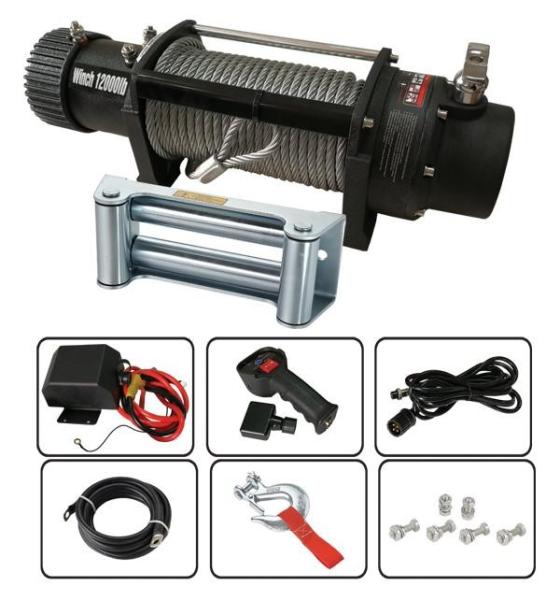

Heavy Duty Electric Winch 12000lbs SC12000X Hawse Fairlead Φ10mmx26m Rope
Heavy Duty Electric Winch 12000lbs SC12000X Hawse Fairlead Φ10mmx26m Rope
Specifications
Brand Name :
J&M
Model Number :
SC12000X
Place of Origin :
China
Rated line pull: :
12000LBS(5443kgs)
Control :
Remote switch,12ft(3.7m)lead
Braking Action :
Two-Way, Automatic In-The-Drum
Fairlead :
4-Way Roller Fairlead/Hawse Fairlead
Cable(Dia X L) :
Φ23/64" x90' (Φ9.1mmx27.5m)
Rope(Dia X L) :
Φ10mmx26m
Description

Heavy Duty Electric Winch 12000lbs SC12000X Hawse Fairlead Φ10mmx26m Rope

Specifications︰
Rated line pull 12000LBS(5443kgs)
Single line Motor 5.2KW/7.2HP 12V, Series Wound
Control Remote switch,12ft(3.7m)lead
Gear train 3 Stage Planetary Gear reduction ratio: 187.2:1
Clutch KeyWAY Cam
Braking Action Two-Way, Automatic In-The-Drum
Drum Dimensions Φ64mmx224mm
Cable(Dia X L) Φ23/64" x90' (Φ9.1mmx27.5m)
Rope(Dia X L) Φ10mmx26m
Fairlead 4-Way Roller Fairlead/Hawse Fairlead
Wireless Remote Control Optional
Battery Recommended: 650CCA minimum for winching
Battery Leads 2 gauge,72"(183mm) Finish: Dark gray powder coat
Overall Dimensions 536.5mmx155mmx205mm
Mounting Bolt Pattern 254mmx114.3mm
Packing size 57x19x34.5cm 1PC/CTN
Weight(cable winch) N.W/G.W : 37kgs/39Kgs
Weight(rope winch) N.W/G.W: 27kgs/29Kgs
Advantages︰ 1. 12000lb truck winch
2. waterproofed motor and gearbox
3. wired and wireless remote control
Export Markets︰ Europe ,Noth America, Austrilia,Asian region
Payment Details︰ T/T
Min Order︰ NEGOTIABLE
Standard Met︰ CE
