100L/Min 0.35L Tank 2.2KW Four Stage Compressor For Shooting
100L/Min 0.35L Tank 2.2KW Four Stage Compressor For Shooting
100L/Min 0.35L Tank 2.2KW Four Stage Compressor For Shooting
100L/Min 0.35L Tank 2.2KW Four Stage Compressor For Shooting
100L/Min 0.35L Tank 2.2KW Four Stage Compressor For Shooting
100L/Min 0.35L Tank 2.2KW Four Stage Compressor For Shooting
Specifications
Brand Name :
J & M
Model Number :
JMS100
Certification :
CE, CCS
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, T/T, L/C
Delivery Time :
15-30 working days
Product Name :
JMS100 compressor Special for shooting (Italian version)
Model :
JMS100
Tank capacity :
0.35L
IP Protection level :
IP55
Drive :
220V Single phase motor
Lubricating oil model :
BS750（food grade special oil）
Air quality :
EN12021
Working medium :
air
Dimension :
640×490×805
Oil / water separation :
Final stage oil water separator
Final filter group :
Purification and filtration of activated carbon, molecular sieve and alumina
Power KW :
2.2KW
RPm r/min :
2800
Net weight Kg :
53
Displacement :
100L/min
Compressor stages :
Four stage compression
Working pressure Mpa :
20-30
Control system :
PLC control (automatic blowdown, automatic shutdown, automatic pressure control)
Description

JMS100 Compressor Special For Shooting (Italian Version)

JMS100 Compressor Special For Shooting (Italian Version ) Describe

JMS100 Compressor Special For Shooting (Italian Version) is an intelligent product, safe and reliable product.

The compressed air meets the EU EN12021 respiratory standard. It is mainly used in gas detection, pressure detection and other fields.

It can also provide clean, safe and reliable gas source for other industries.

It is composed of reliable and long service life components, with compact structure, simple maintenance, easy to use and pure outlet gas.

The air filling pump, as a kind of machine for increasing gas pressure or conveying gas, can directly compress the free air to the compressed air with gauge pressure of 225bar / 330bar.

After passing through the separator, filter and cooling in the unit, the oil and impurities contained in the high-pressure air are removed, and the clean and odorless gas pressure is discharged It is a reliable high-pressure gas supply device when it is retracted into a high-pressure gas cylinder or container.

JMS100 Compressor Special For Shooting (Italian Version ) Parameter

Name JMS100 compressor Special for shooting (Italian version)
Model JMS100
IP Protection level IP55
Tank capacity L 0.35
Drive 220V Single phase motor
RPm r/min 2800
Displacement L/min 100
Power KW 2.2
Net weight Kg 53
Working medium Air
Working pressure Mpa 20-30

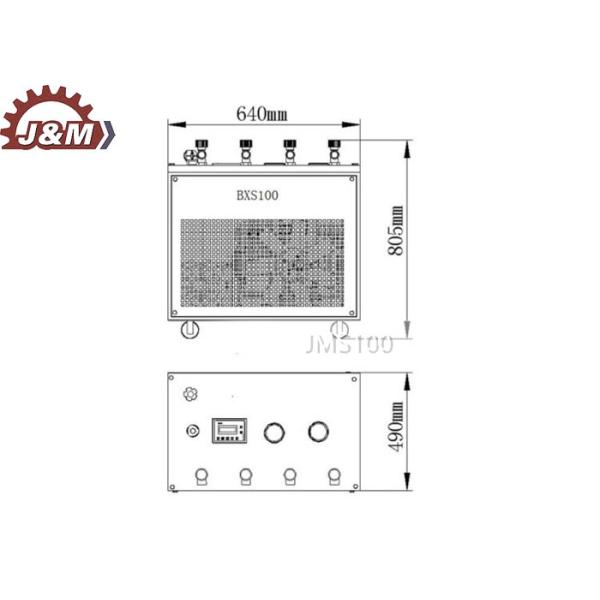

Size mm 640×490×805
Compressor stages Four stage compression
Oil / water separation Final stage oil water separator
Lubricating oil model BS750(food grade special oil)
Noise dB ≤76
Air quality Comply with European EN 12021 "international compressed air standard"
Final filter group Purification and filtration of activated carbon, molecular sieve and alumina
Control system PLC control (automatic blowdown, automatic shutdown, automatic pressure control)

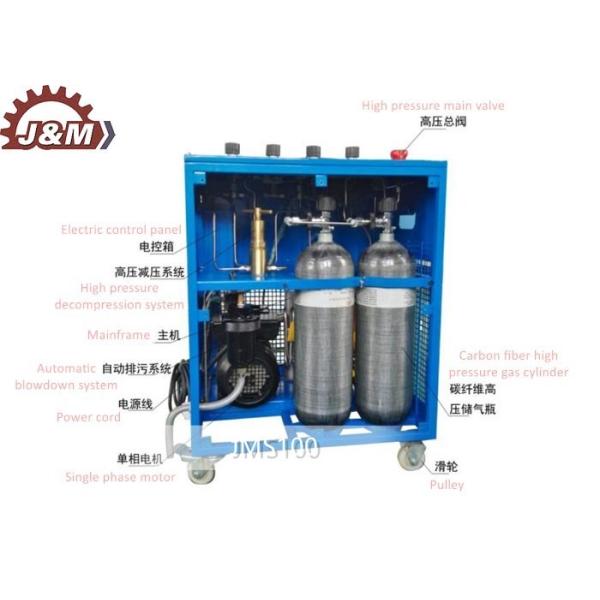

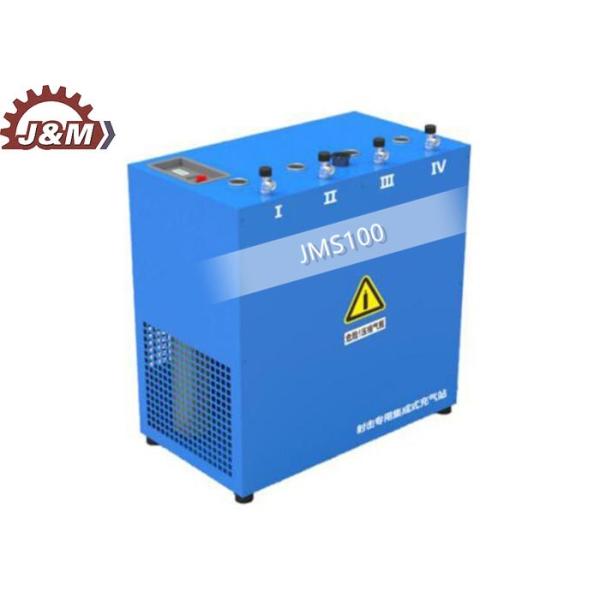

JMS100 Compressor Special For Shooting (Italian Version ) Real picture

100L/Min 0.35L Tank 2.2KW Four Stage Compressor For Shooting

100L/Min 0.35L Tank 2.2KW Four Stage Compressor For Shooting

JMS100 Compressor Special For Shooting (Italian Version ) Packaging & Delivery

Packaging Details
Plywood case
Port
Shanghai/Ningbo
Lead Time :
30~40 days after order confimation

100L/Min 0.35L Tank 2.2KW Four Stage Compressor For Shooting

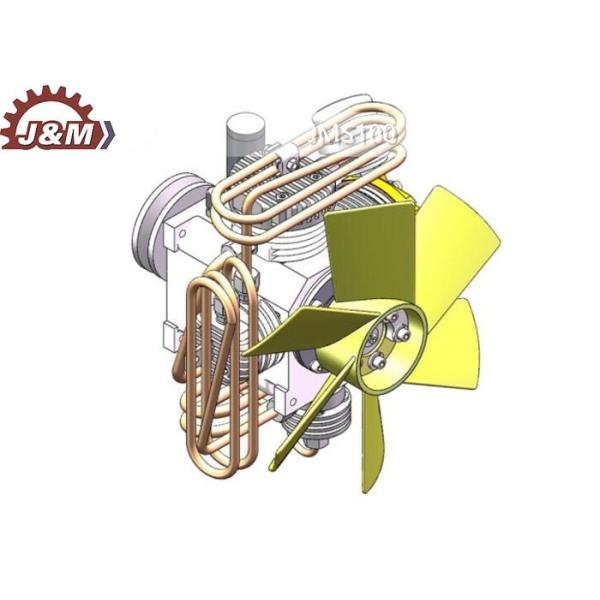

JMS100 Compressor Special For Shooting (Italian Version ) Details

100L/Min 0.35L Tank 2.2KW Four Stage Compressor For Shooting

100L/Min 0.35L Tank 2.2KW Four Stage Compressor For Shooting
