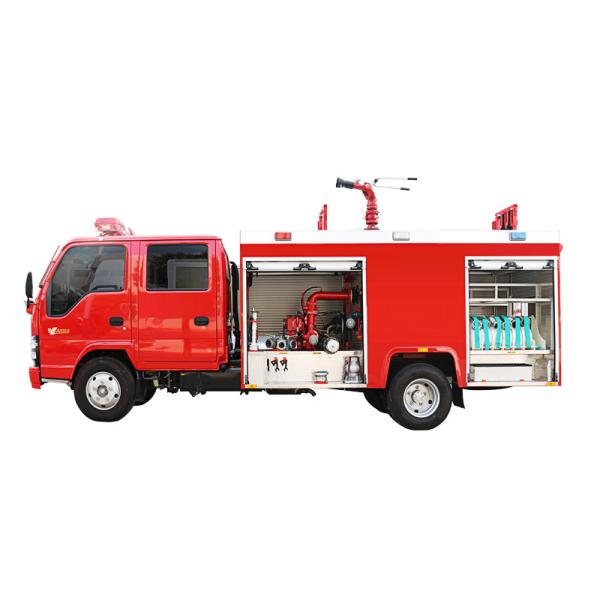

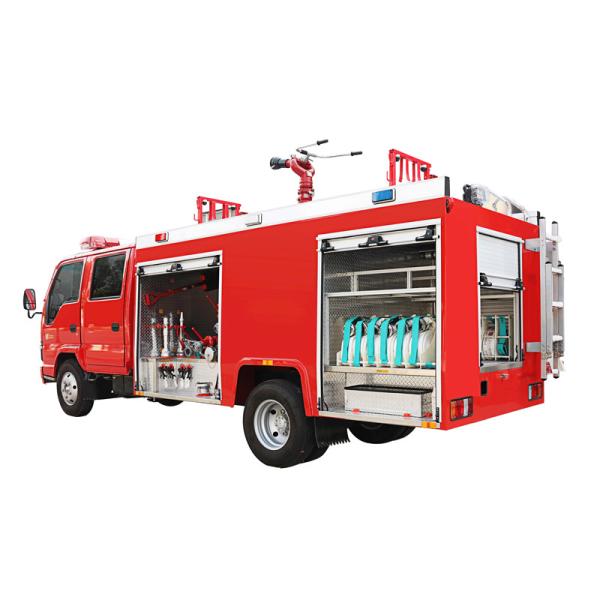

ISUZU 2000L Fire Truck Parts Water Tank Fire Truck Horsepower < 150hp
ISUZU 2000L Fire Truck Parts Water Tank Fire Truck Horsepower < 150hp
ISUZU 2000L Fire Truck Parts Water Tank Fire Truck Horsepower < 150hp
ISUZU 2000L Fire Truck Parts Water Tank Fire Truck Horsepower < 150hp
ISUZU 2000L Fire Truck Parts Water Tank Fire Truck Horsepower < 150hp
ISUZU 2000L Fire Truck Parts Water Tank Fire Truck Horsepower < 150hp
ISUZU 2000L Fire Truck Parts Water Tank Fire Truck Horsepower < 150hp
ISUZU 2000L Fire Truck Parts Water Tank Fire Truck Horsepower < 150hp
Specifications
Brand Name :
J&M
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
L/C, T/T
Delivery Time :
30 Days
Horsepower :
< 150hp
Tank Capacity :
< 3000L
Fire distance :
Water ≥48meter
Engine model :
4KH1CN5HS
Diversion time :
≤60s
Tire :
Steel tire
Description

ISUZU 2000L Fire Truck Parts Water Tank Fire Truck Horsepower < 150hp

Quick Details
Place of Origin:
Anhui, China
Size:
6540*1910*2900mm
Type:
Rescue, Sandwich Full Power PTO
Transmission Type:
Automatic
Condition:
New
Horsepower:
< 150hp
Emission Standard:
Euro 4
Drive Wheel:
6x4
Fuel Type:
Diesel
Tank Capacity:
< 3000L
Product Name:
water tank fire truck
Gross weight:
6810kg
Fire distance:
Water ≥48meter
Engine model:
4KH1CN5HS
Tire:
Steel tire
Color:
Red
Diversion time:
≤60s
Material:
Carbon steel,thickness: 4mm
Output form:
Flange output, same steering as engine


Product Description:

Base specification
Item Technical parameters
dimension 6540×1910×2900mm
Gross weight 6810kg
water tank capacity Water :2000kg.
Engine power rating 96kW
Max speed 100km/h
Emission standard EURO 4
Pump rating 30L/s1.0MPa;
Flow 20L/s,
Fire distance Water ≥48meter
The number of crew Double row cab 6 people
Specific power 96/6.8=14.1
approach angle ≥23°
departure angle ≥18°
chassis:
Type: Engine(motor) QL1070A5KWY
manufacturer Qingling Automobile Co., LTD
Engine model 4KH1CN5HS
engine power rating 96kw
wheelbase 3815mm
gross weight 6810kg
max speed 100km/h
Tire Steel tire
Cabin
Structure
Equipment

Fire control instrument panel and police light control box are installed at the instrument panel of the original vehicle

1. Alarm; 2. Power take-off switch; 3. Additional power switch;

4. Compartment lighting, rear lighting, strobe light switch, rolling door lighting, etc.
PTO
Type Sandwich Full Power PTO
Output form Flange output, same steering as engine
Material Carbon steel,thickness: 4mm
Capacity water:2000kg;
FIRE PUMP
Mode CB10/30
Type flow pressure maximum suction depth Atmospheric centrifugal pump 30L / s 1.0MPa 7m
Water diversion device Built-in water ring pump
Diversion time ≤60s

ISUZU 2000L Fire Truck Parts Water Tank Fire Truck Horsepower < 150hp
