70L 90L 100L Carbon Steel Fm200 Nitrogen Gas Cylinder For 4.2MPa / 5.6MPa Fire Suppression System
70L 90L 100L Carbon Steel Fm200 Nitrogen Gas Cylinder For 4.2MPa / 5.6MPa Fire Suppression System
70L 90L 100L Carbon Steel Fm200 Nitrogen Gas Cylinder For 4.2MPa / 5.6MPa Fire Suppression System
70L 90L 100L Carbon Steel Fm200 Nitrogen Gas Cylinder For 4.2MPa / 5.6MPa Fire Suppression System
Specifications
Brand Name :
RUIGANG
Model Number :
70L/90L/100L/120L/150L/180L
Certification :
CCC/ISO9001/ISO14001/ISO10012/ISO45001
Place of Origin :
Guangzhou, GuangDong, China
MOQ :
2set system
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal,Credit card
Supply Ability :
30000 sets per month
Delivery Time :
15~20 working days
Packaging Details :
Plywood outer box with bubble bag or pape
Capacity :
70L/90L/100L/120L/150L/180L
Color :
Red
Filling medium :
FM200+nitrogen
Material :
Carbon steel
Description

Red Color Fm200 Gas Cylinder For 4.2 / 5.6MPa Fire Suppression System

The fm200 gas cylinder is made with carbon steel and used to store the fm200 agent that is in liquid condition. This cylinder is different in size, volume as well as the storage pressure. No matter which size of cylinder, there are only two kinds of storage pressures -- 4.2MPa and 5.6MPa. Besides, all these cylinders can be used in all kinds of fire suppression system not just for fm200 fire suppression system.

Cylinder Parameter

Nominal volume(L) 70L 90L 100L 120L 150L 180L 180L
Diameter(mm) 350 350 350 350 400 400 450
Cylinder height(mm) 911±5 1119±5 1221±5 1429±5 1388±5 1630±5 1328±5
Filling medium FM200+nitrogen
Filling capacity(kg) 950kg/m3
Material standard GB6653-2008
Designed thickness of cylinder(mm) 6.3 6.3 6.3 6.3 6.3 7.2 7.7
Specified value of chemical ingredients of material

C≤0.20% Si≤0.35% Mn≤1.50%

P≤0.025% S≤0.015% P+S≤0.04%
Material strength specified value

Rm 510~620MPa

Rel ≥345MPa
Test of hydraulic pressure 8.4MPa
Test of sealing pressure 5.6MPa

70L 90L 100L Carbon Steel Fm200 Nitrogen Gas Cylinder For 4.2MPa / 5.6MPa Fire Suppression System

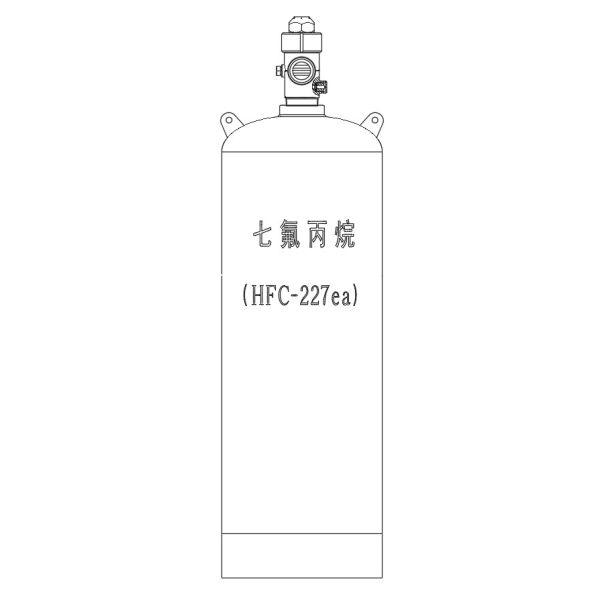

The bottle part is composed of steel cylinder and cylinder valve


Why Choose Us

  • 100,000 sq.meter working plant
  • More reliable patented technologies
  • Intelligent production and advanced management Professional R&D team and product testing centers
  • Complete product range
  • Fast solution design and quick delivery.
  • We provide 8×6 hrs technical support and service.

We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

70L 90L 100L Carbon Steel Fm200 Nitrogen Gas Cylinder For 4.2MPa / 5.6MPa Fire Suppression System
