Anchor Rotary Kiln Refractory Material Lining Good Thermal Stability Yellow Color
Anchor Rotary Kiln Refractory Material Lining Good Thermal Stability Yellow Color
Anchor Rotary Kiln Refractory Material Lining Good Thermal Stability Yellow Color
Anchor Rotary Kiln Refractory Material Lining Good Thermal Stability Yellow Color
Specifications
Brand Name :
Jundao(Henan)
Model Number :
High-Al anchor refractory brick
Certification :
ISO9001:2015
Place of Origin :
Henan China
MOQ :
20
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3500Ton/mon
Packaging Details :
Fumigated wooden pallet, plastic or steel bandages strapped and the whole outside is wrapped with thermoplastic film.
Material :
Higg grade bauxite
Size :
Customized
Bulk Density :
≥2.60g/cm3
AL2O3 content :
65%
Property :
Good thermal stability
Certificate :
ISO9001
Description

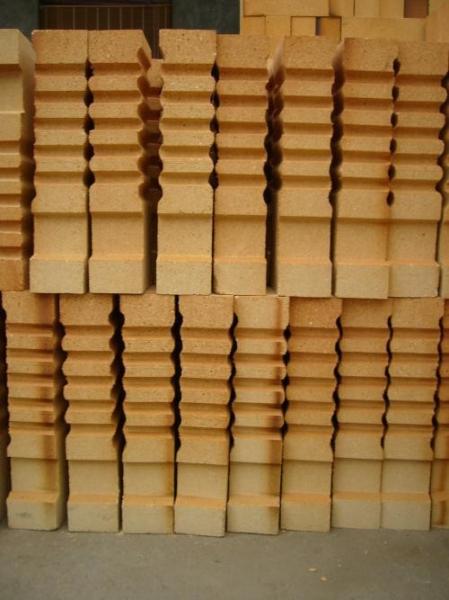

Special shaped High-Al anchor refractory brick for kiln roof Good thermal stability Yellow

High Alumina anchor refractory brick is mainly used for furnace top to support the stress between the roof structure. Because of the furnace reactive gas and heat leakage, will damage the metal hanging pieces, resulting in roof collapse accident. There's strick requirement of hanging brick quality, the brick

manufacturered by our factory takes high grade bauxite, fused alumina, sintered mullite as raw material and combines additives with feature of good thermal stability and good thermal shock resistance, high strength to support high stress, good slag eronsion resistance, high temp performance and high refractoriness under load etc.

High Alumina anchor refractory brick has the following masonry points:

1. The hanging part of the brick should not be damaged that can give full play to the role of hanging metal parts and between the furnace body and anchor brick should be set aside

2, Bricks from both sides should be coated with mud carefully, to prevent leakage of gas from the roof of the furnace

3. Usually uses air setting mud to prevent the mud from the furnace caused by gas leakage

4. Between the furnace body and anchor brick should be set aside

High alumina

hanging Brick

Al2O3

(Min,%)

C.C.S

(Mpa,Min)

R.U.L

(℃,Min)

Thermal

conductivity

(W/mk,Max)

Resistance to

Thermal shock

Times

(1000℃,water-cooling)

 Serving Temp(℃,Max)
0.2MPa
DG-75 75 60 1500 1.5 20 1500
DG-85 85 65 1550 1.5 30 1500
Remark ISO Certificated; Customized
