Fireclay Checker Fire Proof Brick / Lattice Insulating Refractory Brick For Stove
Fireclay Checker Fire Proof Brick / Lattice Insulating Refractory Brick For Stove
Fireclay Checker Fire Proof Brick / Lattice Insulating Refractory Brick For Stove
Fireclay Checker Fire Proof Brick / Lattice Insulating Refractory Brick For Stove
Specifications
Brand Name :
Jundao(Henan)
Certification :
ISO9001:2015
Place of Origin :
Henan China
MOQ :
20
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Packaging Details :
Fumigated wooden pallet, plastic or steel bandages strapped and the whole outside is wrapped with thermoplastic film.
Model Number :
Checker fire proof brick​
Price :
Negotiate
Supply Ability :
3000Ton/mon
Material :
Fireclay
Color :
Yellow
Shape :
Customized
Performance :
Heat storage
Application :
Hot blast stove
Certificate :
ISO9001
Description

Customized Fireclay Checker fire proof brick, Lattice insulating brick for hot blast stove

Fireclay Checker fire proof brick​ is widely recognized and accepted by the world's iron industry, a heat exchange capacity, heat storage area, smooth ventilation, resistance and many other excellent thermal characteristics of the heat storage body. Lattice brick is a heat transfer medium, mainly used in the hot stove in the upper part of the regenerator, from the heat storage effect. In the cold air into the hot air process, plays an extremely important role.

The hot blast stove is a periodic working device, which has two working periods: the burning period and the air supply period, and the two working periods are periodically rotated. During the burning period, the gaseous fuel is burned in the burner of the hot air stove to produce high temperature flue gas. The high temperature flue gas passes through the pores of the hot stove checker brick, passing the heat to the checker bricks, while the flue gas is heating the lchecker bricks while itself.The temperature drops, the flue gas is cooled by the checker brick, through the flue pipe from the chimney into the atmosphere. In the air supply period, from the blower out of the cold wind into the hot air stove, checker brick heated into hot air, the hot air duct sent to the blast furnace.
Fireclay Checker fire proof brick​ Features:
Good volume stability
Low creep property
Low apparent porosity
High density
Strong heat exchange capability

Fireclay Checker
fire proof brick

 Al2O3
(%,Min)		 B.D
(g/cm3,Max)		 Refractoriness
(℃,Max)

C.C.S
(MPa,Min)

 A.P
(%,Max)		 R.U.L
(℃,0.2MPa)		 P.L.C(%)
(2h*1450℃) (2h*1350℃)
RN-42 42 2.0~2.2 1750 35 24 1410 0~-0.4 /
RN-40 40 1730 30 24 1350 / 0~-0.5
RN-36 36 1690 25 24 1300 / 0~-0.5
Remark ISO Certificated; Customized
Application Regenerator

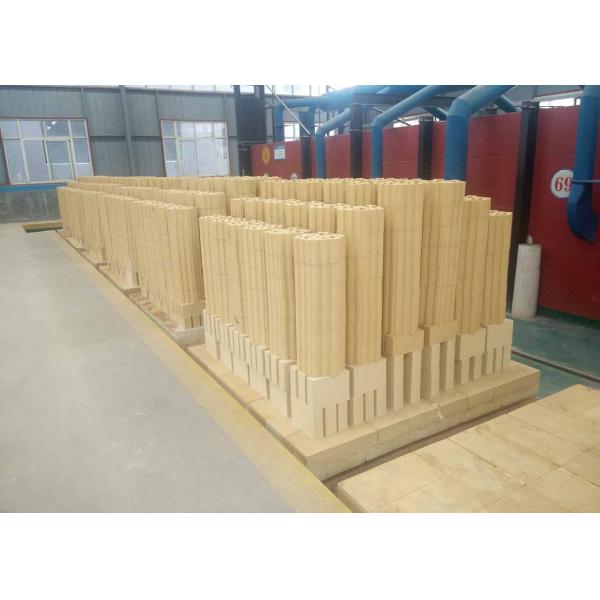

Production site
