19 Holes Yellow Fire Clay Bricks For Hot Blast Stove High Density Customized
19 Holes Yellow Fire Clay Bricks For Hot Blast Stove High Density Customized
19 Holes Yellow Fire Clay Bricks For Hot Blast Stove High Density Customized
19 Holes Yellow Fire Clay Bricks For Hot Blast Stove High Density Customized
Specifications
Brand Name :
Jundao(Henan)
Model Number :
Fire Clay Checker Brick
Certification :
ISO9001:2015
Place of Origin :
Henan China
MOQ :
20
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
400Ton/mon
Packaging Details :
Fumigated wooden pallet, plastic or steel bandages strapped and the whole outside is wrapped with thermoplastic film.
Material :
Fire Clay
AL2O3 content(%) :
30~48
Bulk Density :
2.0~2.2g/cm3
Color :
Yellow
Application :
Hot blast stove
Performance :
Heat storage
Description

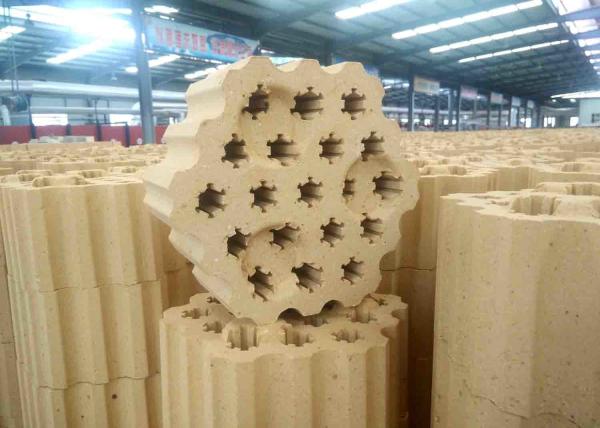

19 holes Yellow Fire Clay Checker Bricks customized refractory brick for hot blast stove

Fireclay Checker refractory brick​ manufactured by us takes high grade clay clinker as main raw materia, special shaped with holes that has many good thermal characteristics. It is widely recognized and accepted by the world's steel industry as a heat exchange body. As a heat transfer medium, the bricks are mainly used in the hot stove in the upper part of the regenerator, in the process of exchange cold air into the hot air , plays an extremely important role.

Fireclay Checker refractory brick​​ Features:

1, Low apparent porosity
2, Good volume stability at high temperature.
3, Low creep property, the fireclay checker bricks have excellent thermal characters at high temperature.

4, Strong heat exchange capability, In the air supply period, from the blower out of the cold wind into the hot air stove, checker brick heated into hot air, the hot air duct sent to the blast furnace.

Fireclay

Checker

refractory brick

 Al2O3
(%, Min)		 B.D
(g/cm3,Max)		 Refractoriness
(℃,Max)

C.C.S

(MPa,Min)

 A.P
(%, Max)		 R.U.L
(℃,0.2MPa)		 P.L.C(%)
(2h*1450℃) (2h*1350℃)
RN-42 42 2.0~2.2 1750 35 24 1410 0~-0.4 /
RN-40 40 1730 30 24 1350 / 0~-0.5
RN-36 36 1690 25 24 1300 / 0~-0.5
Remark ISO Certificated; Customized
Application Regenerator
