Specifications
Brand Name :
CH Refractories
Model Number :
CH
Certification :
ISO
Place of Origin :
China
MOQ :
5 tons
Price :
400-600USD/T FOB
Payment Terms :
L/C, T/T
Supply Ability :
3000 tons per month
Delivery Time :
15-30 working days
Packaging Details :
Pallet or wooden carton
name :
High Temp Fire Brick Phosphate-Bonded High Alumina Brick
type :
Factory
application :
Rotary Kiln, Electric Furnace Top and other furnace parts
Color :
Yellow
Size :
Support customization
Al2o3 content (%) :
55~80%
Description

High Temp Fire Brick Phosphate-Bonded High Alumina Brick Support Customization

High Temp Fire Brick Phosphate-Bonded High Alumina Brick

The manufacturing technique of phosphate refractory bricks is same as phosphate castable. With rapid development recent years, phosphate refractory brick is remarkably effective in cement kiln and electric furnace roof.

The high Temp Fire Brick Phosphate-Bonded High Alumina Brick has good high temperature resistance, fire resistance temperature is more than 1770 degrees, can withstand relatively high temperature, in the case of high temperature fluctuation does not have a great impact. Good thermal stability, rapid cold and rapid heat resistance, in the temperature change does not appear stratified spalling. Chemical corrosion resistance, at 400-600 temperature intensity CO atmosphere is, does not occur bursting spalling. Good wear resistance, high compressive strength. Mainly used in cement rotary kiln kiln and cooling belt, cooling machine and cement machine shaft kiln bell mouth and other thermal equipment.

Zhengzhou Caihua Kiln Masonry Installation Co., Ltd has near 30 years experience is manufacturing refractory products and do installation for various furnace, The products exported to middle east, africa, Europe, South America.,etc, which have built long-term cooperation with customers and helped them improved the production efficiency. We sincerely hope the long-term cooperation with you!

Brands Ordinary phosphate brick Phosphate combined wear-resistant brick Special phosphate brick Phosphate composite brick
Items CH-PZ75 CH-PA75 CH-PT80 Heavy part Lightweight part
AL2O3/% 75 75 80 75 55
Fe2O3%≤ 2.1 2.1 1.8 2 1.5
Refractoriness / 1770 1770 1790 1770 ----
Bulk density (110℃×24h) g/cm3 2.7 2.75 2.9 2.8 1
Compressive strength/ MPa ≥ 70 75 80 75 5.5
0.2Mpa refractoriness under load /℃≥ 1350 1300 1520 1350 ---
Thermal shock resistance(1100℃)/time 20 20 15 ---- -----

Advantages of Phosphate Refractory Brick
Higher strength and good wear resistance.
Good chemical resistance. (The alkali resistance is better than clay bricks and high alumina bricks)
Good thermal shock resistance.
The load softening temperature is higher.
Customerize mould according to different size requirements for free

Application of Phosphate Refractory Brick:
Transition zone of the rotary kiln, the kiln mouth, the kiln door cover, the lining of the cooler and other parts of the refractory brick that are easy to loose and fall.

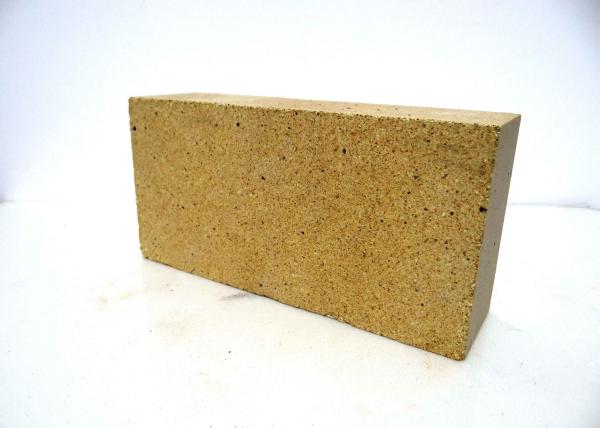

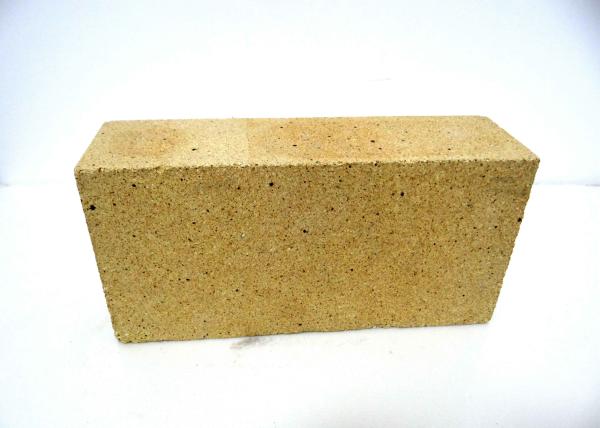

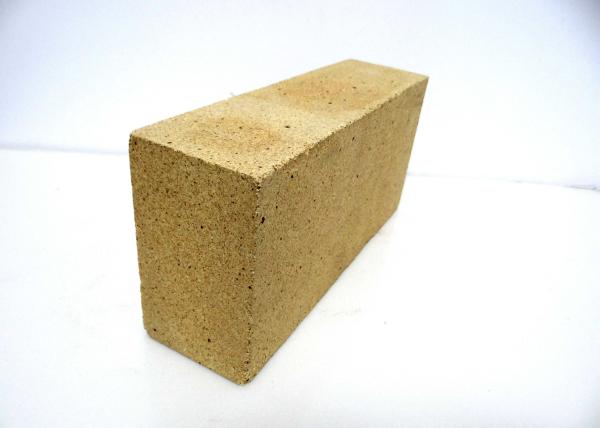

Photos of Phosphate Refractory Brick:

Phosphate Bonded 80% High Alumina Fire Bricks Support Customization

Packages and delivery

Phosphate Bonded 80% High Alumina Fire Bricks Support Customization

Plants view

CH Refractories has been major in fire bricks, castable and ramming mass manufacturer for more than 30 years. Products have been exported to many countries, such as Pakistan, Korea, Malaysia, Indoneisa, Germany and so on. There are more than 100 professional engineers to make sure stable product quality. We care high quality and safety of refractories.

Phosphate Bonded 80% High Alumina Fire Bricks Support Customization

Phosphate Bonded 80% High Alumina Fire Bricks Support Customization
