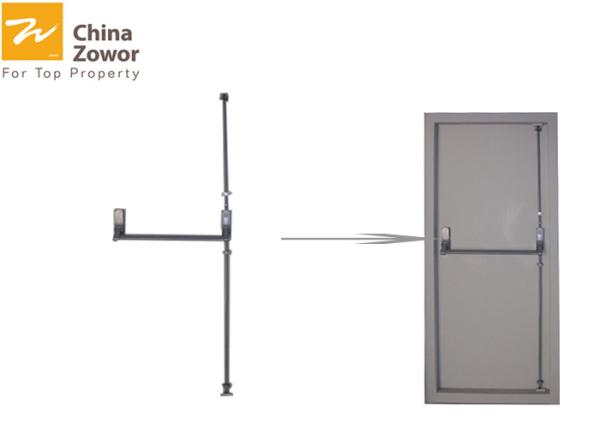

90 minute Fire Rated Steel Insulated Fire Door With Panic Bar/ Powder Coated Finish
90 minute Fire Rated Steel Insulated Fire Door With Panic Bar/ Powder Coated Finish
90 minute Fire Rated Steel Insulated Fire Door With Panic Bar/ Powder Coated Finish
90 minute Fire Rated Steel Insulated Fire Door With Panic Bar/ Powder Coated Finish
90 minute Fire Rated Steel Insulated Fire Door With Panic Bar/ Powder Coated Finish
90 minute Fire Rated Steel Insulated Fire Door With Panic Bar/ Powder Coated Finish
90 minute Fire Rated Steel Insulated Fire Door With Panic Bar/ Powder Coated Finish
90 minute Fire Rated Steel Insulated Fire Door With Panic Bar/ Powder Coated Finish
90 minute Fire Rated Steel Insulated Fire Door With Panic Bar/ Powder Coated Finish
90 minute Fire Rated Steel Insulated Fire Door With Panic Bar/ Powder Coated Finish
Specifications
Brand Name :
ZHONGWO
Model Number :
ZW-GM02
Certification :
BS， WHI， UL, CCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
western union, moneygram,cash, l/c, t/t
Supply Ability :
800 sets per day
Packaging Details :
PEP Paper on both sides+ Foam Channel Around 4 Edges and Corners + Foam Plate on both sides on PEP Paper + Strong Carton
Delivery Time :
30 days after reception of down payment
Fire Rating :
1.5 Hours
Thickness of Door Leaf :
55mm
Thickness of Door Frame :
120mm
Thickness of Steel plate for Door Leaf :
0.8mm
Thickness of Steel plate for Door Frame :
1.2mm
Thickness of Fire Glass (mm) :
32mm
Material :
Galvanized Steel
Finish :
Powder Coating, Wood Grain
Weight :
35Kg/m2
Color :
Customized
Description

Steel Insulated Fire Door

Hardware fittings:The famous high-grade fire lock, door closer, fire prevention hinge, sequencer, latch etc.with characteristics that flexible, safe, reliable, and so on. They are approved by the national recognized inspection authority, and the performance meet GB12955-2008 appendix A, B, C, D.

Product Description
Material: The door frame adopts cold rolled galvanized steel plate with thickness of no less than 1.2mm.
The door leaf adopts cold rolled galvanized steel plate with thickness of no less than 0.8mm.
Hardware fitting backboard adopts ordinary steel plate with thickness of no less than 3.0mm.

Fire Resistance Rating(FRR):

Grade A: 1.5 Hours

Grade B: 1.0 Hour

Grade C: 0.5 Hour

Door Leaf

Material options Galvanised Steel; Stainless Steel

Sheet thickness: 1.0 mm; 0.8 mm;

20 gauge 22 gauge

Infill : Magnesium Oxide Board;

Fireproof Perlite Board;

Honeycomb Kraft Paper;

Polyurethane Foam

Technical Data for door leaf

Single Leaf Double Leaf

Door thickness 45 mm —

Min. door opening width 400 mm 800 mm

Max. door opening width 1219 mm 2400 mm

Max. door opening height 2400 mm 2400 mm

Note: The sizes mentioned above are for the door leaf and do not include the frame.

Fire Resistance Rating Classification

Name Fire Resistance Performance Code

Fully Heat Insulated Doorsets(Class A)

Fire Insulation ≥0.50h

Fire Integrity ≥0.50h

A0.50

(Grade C)

Fire Insulation ≥1.00h

Fire Integrity ≥1.00h

A1.00

(Grade B)

Fire Insulation ≥1.50h

Fire Integrity ≥1.50h

A1.50

(Grade A)

Fire Insulation ≥2.00h

Fire Integrity ≥2.00h

 A2.00

Fire Insulation ≥3.00h

Fire Integrity ≥3.00h

 A3.00

Partially Heat Insulated Doorsets(Class B)

Fire Insulation ≥0.50h

 Fire Integrity ≥1.00h B1.00
Fire Integrity ≥1.50h B1.50
Fire Integrity ≥2.00h B2.00
Fire Integrity ≥3.00h B3.00

No Heat Insulated Doorsets(Class C)

 Fire Integrity ≥1.00h C1.00
Fire Integrity ≥1.50h C1.50
Fire Integrity ≥2.00h C2.00
Fire Integrity ≥3.00h C3.00

Parameters

Items

Grade A Steel

Insulated Fire Door

Grade B Steel

Insulated Fire Door

Grade C Steel

Insulated Fire Door
Fire Protection Time (H) 1.5 1.0 0.5
Code A1.50 A1.00 A0.50

Thickness of Door Leaf

(mm)

 55 45 45

Thickness of Door Frame

(mm)

 120 112 112
Thickness of Steel plate for Door Leaf (mm) 0.8 0.8 0.8
Thickness of Steel plate for Door Frame (mm) 1.2 1.2 1.2

Thickness of Fire Glass

(mm)

 32 24 24
Fire Prevention Board Available N/A N/A
Intumescent Seals Size(Width x Thickness)(mm) 15x2 15x2 15x2
Filled Material Perlite Fireproof Board Perlite Fireproof Board Perlite Fireproof Board

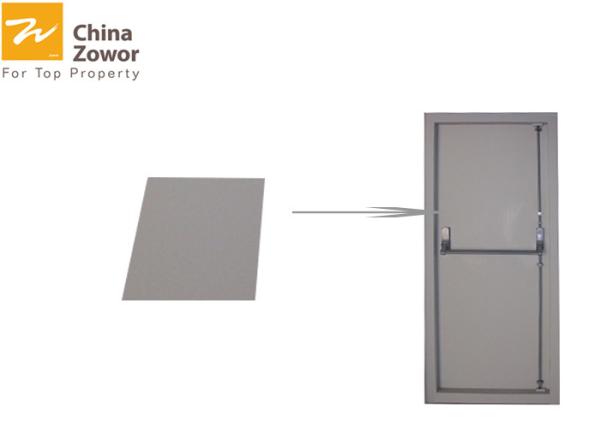

Finish

Powder Coating

All our UL steel fire doors are factory finished and most popular finish is powder coating. Colors of this finish is according to RAL swatch or upon request of customers.

Wood Grain

Wood grain doors combine the beautiful appearance of timber together with the strength and rigidity of steel. By default we provide you with rosewood, walnut wood, oak wood as popular wood grain options.
