UL Certified 1 Hour Rated Fire Safety Door Fire Exit Door With Vision Panel/ Customized Size
UL Certified 1 Hour Rated Fire Safety Door Fire Exit Door With Vision Panel/ Customized Size
UL Certified 1 Hour Rated Fire Safety Door Fire Exit Door With Vision Panel/ Customized Size
UL Certified 1 Hour Rated Fire Safety Door Fire Exit Door With Vision Panel/ Customized Size
UL Certified 1 Hour Rated Fire Safety Door Fire Exit Door With Vision Panel/ Customized Size
UL Certified 1 Hour Rated Fire Safety Door Fire Exit Door With Vision Panel/ Customized Size
UL Certified 1 Hour Rated Fire Safety Door Fire Exit Door With Vision Panel/ Customized Size
UL Certified 1 Hour Rated Fire Safety Door Fire Exit Door With Vision Panel/ Customized Size
UL Certified 1 Hour Rated Fire Safety Door Fire Exit Door With Vision Panel/ Customized Size
UL Certified 1 Hour Rated Fire Safety Door Fire Exit Door With Vision Panel/ Customized Size
Specifications
Brand Name :
ZHONGWO
Model Number :
ZW-SM07
Certification :
BS， WHI， UL, CCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
western union, moneygram,cash, l/c, t/t
Supply Ability :
600 Sets per Day
Delivery Time :
45 Days After Payment Received
Packaging Details :
Inside Bubble Bags+ Strong Carton
Material :
Galvanized Steel
Fire Rating :
30/60/90/120 min
Finish :
Prime Paint, Powder Coating
Thickness of Door Leaf :
40/45mm
Thickness of Steel Sheet For Door Leaf :
20-18-16 Ga.
Thickness of Steel Sheet For Door Frame :
18-16-14 Ga.
Infilling :
Perlite Board; Honeycomb Paper, Mineral Core
Glass :
UL listed Fireproof Glass
Opening Force :
66-68 N
Opening Type :
Swing Open
Description

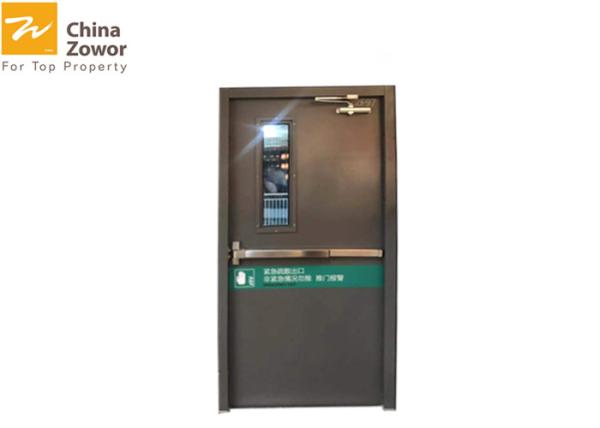

UL Certified 1 Hour Rated Fire Safety Door Fire Exit Door With Vision Panel/ Customized Size

Fire Safety Steel Door

Product Description

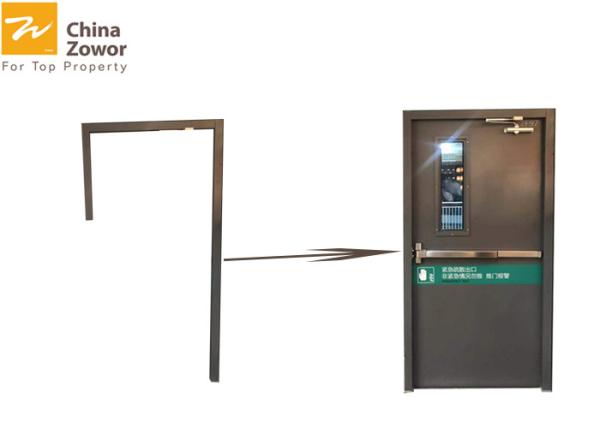

Zhongwo steel Fire door is widely used in all kinds of public Fire -proof areas because of its solid structure and simple shape. Inlaid with fire -proof expansion sealing pieces, the door frame is made of high quality galvanized steel strip, which is one-time rolled and formed through the special production line, without impact sound when closing. Beams are connected with mullions by 90° angle welding, and the large size door frame can be assembled with bolts. The door leaf adopts the process that high-quality cold-rolled galvanized steel sheet is bent by the bending machine precisely, and its interior is filled with green and perlite board which has characters of fireproof, heat & sound insulation and its surface adopts technology without welding spots, so that to get smooth appearance.

Technical Specification

Zhongwo steel fire doors are all tested in accordance with American or British Standard such as UL10(b) and UL10(c) and BS476:22 & EN1634:1. We can provide you with UL/WHI certificate or BS and EN certificates for various sizes and fire ratings.

Product Name Zhongwo Fire Rated Steel Doors
Fire Rating 20/30/60/90/150/180mins
Standard

NFPA,ANSI/UL 10B,UL10C

BS476-22, EN1634-1:2008
Material of Door Leaf Galvanized Steel Sheet
Material of Door Frame Galvanized Steel Sheet
Thickness of Steel Sheet of Door Leaf 20-18-16 Ga. (1.0/1.2/1.6 mm)
Thickness of Steel Sheet of Door Frame 18-16-14 Ga. (1.2/1.6/2.0mm)
Thickness of Door Leaf

US Standard Door: 40/45 mm

BS Standard Door: 45/50/55/64 mm
Frame Depth 120/130/160 mm
Weight 25-35Kg/㎡
Size

Single Door: 3’X7’; 4’X8’

Double Door: 6’X7’; 8’X8’

Or customized
Open Style Swing Open
Infilling Material

Standard: Fireproof Perlite Board

Options: Honeycomb Paper, Mineral Wool, Polyethylene Foam
Surface Treatment Prime Paint(UV/PU), Powder Coating, Wood Grain
Color Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request
Glass

Standard: American or British Standard Tested Clear or Wired Glass

Or Customized As Request
Fireproof Seal Strip

FPJ-B-20X 2

FPJ-A-15X 2

Or Customized
Warranty 2 years
Package PE Paper+Double Layer Strong Carton or wooden pallet
Delivery Time 45Days After Payment Received

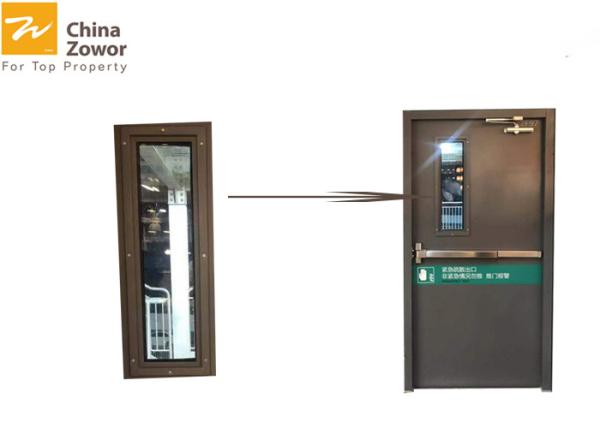

Glass

A. Reinforcement channel is provided.

B. Glass frame and glazing bead is steel.

C. Glass is UL listed glazing material.

D. Maximum allowable glass area:2 Hours, 100 sq. in. Per door leaf (Fire lite)

Color Options

Hardware

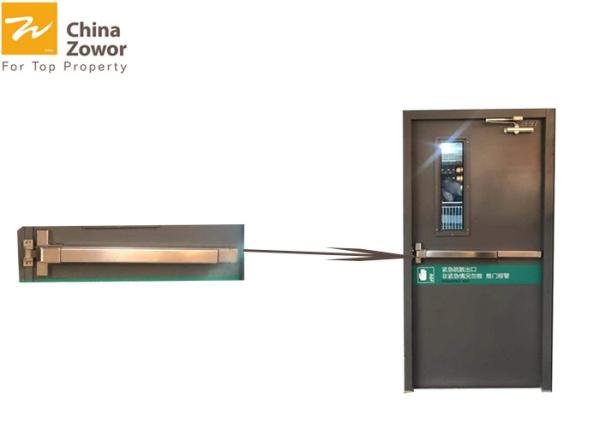

As standard we equip every door with galvanized steel hinges, locksets and high quality door closers. We can also send you panic push bar, fire bolts, magnetic door stoppers or other accessories as your request. Melting temperature of hardware installed in doors should be no less than 950℃.

Besides, we also have stainless steel hardware when you want.

Why Choose Us?

1. All of our fire doors are in top quality and at competitive prices.

2. Free pre-sales consult on any questions about fire doors.

3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.

4. All fire doors can be customized as your request.

5. Good after-sale service.

More than 20 years experience in fire door industry.
