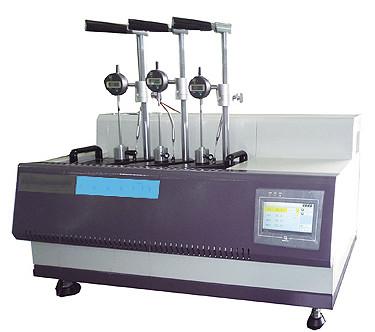

Heat Deflection Temperature Test Plastic Testing Equipment  ISO 306
Heat Deflection Temperature Test Plastic Testing Equipment  ISO 306
Heat Deflection Temperature Test Plastic Testing Equipment  ISO 306
Heat Deflection Temperature Test Plastic Testing Equipment  ISO 306
Specifications
Brand Name :
DAXIAN
Model Number :
DX8534
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability :
30 sets per month
Delivery Time :
30 days after order confirmed
Packaging Details :
Standard export wooden case
Certification :
ISO 306:1994, ISO75-2:2003, ISO 2507:1995
Volume (W×D×H) :
148 × 81 × 170 cm
Scope of application :
PLA & PHAs.
Weight :
490 kg
Control mode :
Button
Description
ISO 2507 HDT and Vicat Heat Deflection Temperature Testing Equipment for Plastic Products
Compliance with the standard:
ASTM-D648
JIS-K7191
ISO-2507
Scope of application:
Mainly applicable to the determination of plastic test pieces, thermal deformation HDT... Three-point loading under the bending stress deformation temperature and plastic Vicat softening temperature test method ... plastic samples under the specified conditions, the needle penetration phenomenon temperature.
According to the principle:
The test machine can choose to use compressor cooling or water cooling. Compressor cooling with high efficiency can achieve rapid cooling effect, and save water consumption during water cooling. All metal materials immersed in high-temperature heat transfer oil are alloy steels with low deformation coefficient, which minimizes high-temperature deformation of the material and improves the accuracy of test results.
Main features:
It has the functions of heating up, cooling down, and stirring automatic control, automatically displaying the measuring point temperature. The high-precision LVDT displacement sensor is used to measure the deformation of the indenter, and with the high-speed iron's self-developed deformation sensing amplifier, the high resolution and accurate sensing do not jump.
Technical Parameters:
test pieces 6 groups, 3 groups (optional)
deformation display LVDT, computer system display
deformation accuracy < ± 0.03% F.S
test methods HDT / VICAT
temperature range 20 °C ~ 300 °C (compressor cooling)
room temperature ~ 300 °C (water-cooled)
temperature accuracy ± 0.5 °C
heating rate 2 ± 0.2 °C / min or 50 ± 5 °C / hr
Cooling method water-cooled / compressor cooling (selection)
Volume (W×D×H) 148 × 81 × 170 cm
weight 490 kg
Power 1∮, AC220V, 50/60Hz, 25A (by country or designation)
