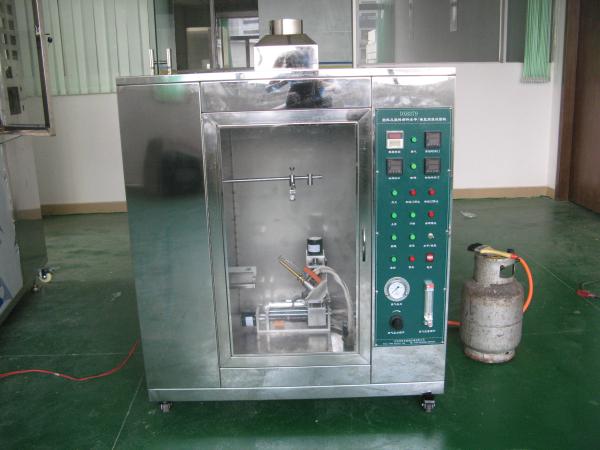

UL 94 ASTM D 635 Plastic Horizontal Flammability Tester Burning Rate Testing Equipment
UL 94 ASTM D 635 Plastic Horizontal Flammability Tester Burning Rate Testing Equipment
Specifications
Brand Name :
DAXIAN
Model Number :
DX8379
Certification :
CE , SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Supply Ability :
30 sets per month
Delivery Time :
15 work days
Packaging Details :
standard export wooden case
Angle :
90℃,45℃
Power Supply :
220V 50HZ
Usage :
Plastic Horizontal Burning Rate Test Apparatus
Test Chamber :
>0.5m3
Material :
Stainless Steel
Product Name :
Flammability Testing Equipment
Description

UL 94 ASTM D 635 Plastic Horizontal Flammability Burning Rate Testing Equipment

Introduction:

The horizontal and vertical flame test apparatus is designed according to UL94, IEC60695-11-4 and IEC60695-11-3. The fire hazard is evaluated by burning rate, after glow time, after flame time and damage length of the specimen. The horizontal and vertical flame test apparatus is applied to the V-0, V-1, V-2, HB and 5V materials, it is widely used in the R&D department, QC department and production department of lighting equipment, low-voltage apparatus, household appliance, motor and etc.. And also can be used in the industries of insulation material, plastic and other solid combustible material.

Standards:

ASTM D 635,UL94 V-0 V-1 V-2,GB/T 2408

Parameter:

1. Burner: Φ9.5mm ± 0.3mm bunsen burner

2. Dip angle:00, 200, 450 (manual adjustment)

3. Flame height: 20mm ± 2mm to 180mm±10mm (adjustable)

4. Flame time: 0-999.9s±0.1s (adjustable)

5. After flame time: 0-999.9s±0.1s (auto record, manual pause)

6. After glow time: 0-999.9s±0.1s (auto record, manual pause)

7. Fuel gas: 98% methane

8. Flow and pressure record: flowmeter and manometer

9. Test temperature range: 0-10000C

10. Flame temperature required: heat up from 1000C±50C to 7000C±30C within the time of 44s±2s and 54s±2s

11. Thermocouple: diameter of 0.5mm K type thermocouple (2 pieces)

12. Test background: black

13. Volume of chamber: 0.75 CBM

14. Dimension of apparatus: 1100mm(W)*700mm(D)*1300mm (H)

15. Power supply: AC220V, 50Hz, ≤500W
