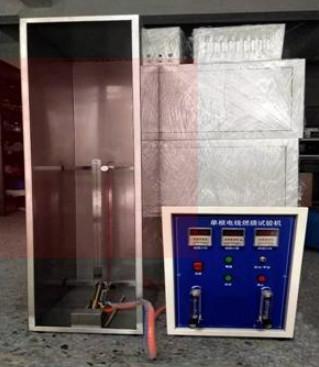

IEC60332-1 Flame Propagation Test For A Single Insulated Cable Test Equipment
IEC60332-1 Flame Propagation Test For A Single Insulated Cable Test Equipment
IEC60332-1 Flame Propagation Test For A Single Insulated Cable Test Equipment
IEC60332-1 Flame Propagation Test For A Single Insulated Cable Test Equipment
Specifications
Brand Name :
Daxian
Model Number :
DX8363
Certification :
IEC60332-2004、IEC60332- 2004、NE 50086-1-1994
Place of Origin :
China
MOQ :
one set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability :
15 sets per month
Delivery Time :
15work days
Packaging Details :
Wooden Case
Product name :
Single Cable Burning Fire Resistance Test
Standard :
IEC60332-2004、IEC60332- 2004、NE 50086-1-1994
Color :
Blank
Warranty :
12 months
Description
IEC60332-1 Flame Propagation Test for a Single Insulated Cable Fire Resistance Test Equipment

Detailed Product Description:
Material:
Stainless Steel
Standards:
IEC60332-2-1:2004, IEC60332-2-2:2004
Application:
Single Wire Or Cable Or Fiber Cable
Fuel:
Gas Methane
Scope of application:
Applicable to the flame retardation test of a single wire or cable or fiber cable under the specified flame conditions. At the same time, it can be used to test the burning of drip objects under flame conditions.
Standards:

IEC60332-2004
IEC60332- 2004
NE 50086-1-1994.
The main parameters:

1. Metal cover: all stainless steel box, internal cavity high 1200mm, width 300mm, deep 450mm, the front is open, the top and bottom closed.
2. Blow torch: GB/T18380.11-2008, GB/T18380.12-2008, GB/T18380.13-2008, IEC60332-1-1:2004, IEC60332-1-2:2004, IEC60332-1-3: 2004 uses a torch with a nominal power of 1kw. Meet the GB/T5169-14 standard. GB/T18380.21-2008, GB/T18380.22-2008, IEC60332-2-1:2004, IEC60332-2-2:2004 use propane torches (diffusion flame).
3. Set the burning time reaches the preset time, the machine will automatically stop the ignition.
4. Igniter: automatic high voltage ignition.
5. Fuel: gas methane, purity 95% (user-supplied)
6. Air flow meter: 10L/min, gas flowmeter 650mL/min one each
7. A set of temperature measuring device

IEC60332-1 Flame Propagation Test For A Single Insulated Cable Test Equipment
