AAMA 501.1 Construction Materials Testing Equipment Dynamic Water Penetration Test
AAMA 501.1 Construction Materials Testing Equipment Dynamic Water Penetration Test
AAMA 501.1 Construction Materials Testing Equipment Dynamic Water Penetration Test
AAMA 501.1 Construction Materials Testing Equipment Dynamic Water Penetration Test
Specifications
Brand Name :
DAXIAN
Model Number :
DX8684
Certification :
AAMA 501.1
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability :
30 sets per month
Delivery Time :
45 work days
Packaging Details :
Standard export wooden case
Name :
AAMA 501.1 Building External Windows And Doors Dynamic Water Penetration Testing Equipment ENV13050
Standards :
AAMA 501.1
Power :
AC380V, 3KW
Use space :
3000×3000×10000mm
Warranty :
12 months
Description
AAMA 501.1 Dynamic Water Penetration Test for Machine Building External Windows And Doors
AAMA 501.1 Construction Materials Testing Equipment Dynamic Water Penetration Test
【Test items】
This test method determines the equipment and procedures for detecting the water permeability of external windows, curtain walls and doors with dynamic pressure.
【Standard】:
- AAMA501
- ENV13050
- ASTME331
【Features】

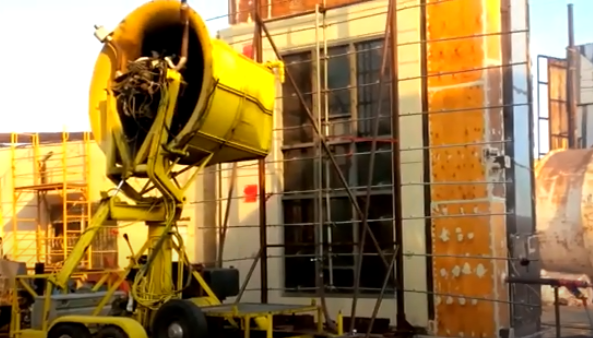

-Dynamic watertight performance of building curtain wall The axial flow fan detects that the axis of the airflow from the duct is horizontal and orthogonal to the outer surface of the sample.
-The fan is fixed on a frame device that can move the fan at a set speed in both vertical and horizontal directions to blow the controlled airflow to all places on the outer surface of the sample.
-The spray device sprays the specified amount of water evenly on the outdoor surface of the test piece, the nozzles are arranged uniformly, the spray volume of the device can be adjusted, and measures are taken to ensure the uniformity of the spray volume, which can be on the outer surface of the test piece A continuous and constant water film is formed on the surface.
Technical parameters:
Working environment: normal temperature and humidity
Temporary load rate 25%
Maximum wind speed 35m/s
The total weight of the unit 2800kg
Power 250kw
Power supply AC three-phase 380v
Equipment area 3000×3000×10000mm
Power AC380V, 3KW
AAMA 501.1 Construction Materials Testing Equipment Dynamic Water Penetration Test
