IEC68-2-1 Programmable Constant Temperature Humidity Test Machine / Climate Chamber 1250 x930 x 950mm
IEC68-2-1 Programmable Constant Temperature Humidity Test Machine / Climate Chamber 1250 x930 x 950mm
IEC68-2-1 Programmable Constant Temperature Humidity Test Machine / Climate Chamber 1250 x930 x 950mm
IEC68-2-1 Programmable Constant Temperature Humidity Test Machine / Climate Chamber 1250 x930 x 950mm
IEC68-2-1 Programmable Constant Temperature Humidity Test Machine / Climate Chamber 1250 x930 x 950mm
IEC68-2-1 Programmable Constant Temperature Humidity Test Machine / Climate Chamber 1250 x930 x 950mm
Specifications
Brand Name :
Daxian
Model Number :
DX8467
Certification :
IEC68-2-1
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Wooden case
Reference size of outer box :
1250 x930 x 950mm
Humidity range :
20 ~ 98% RH
The cooling time :
1 ~ 1.5 ºC / min
Standard :
IEC68-2-1、IEC 68-2-3、IEC68-2-2、IEC68-2-30
Description

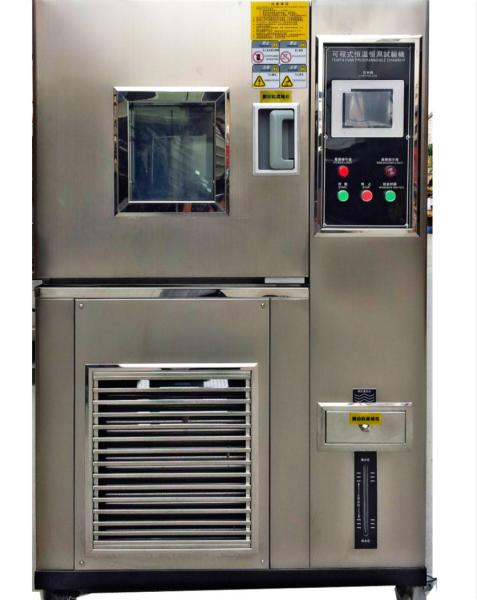

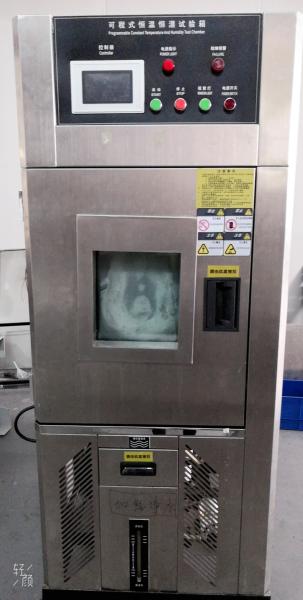

Programmable Constant Temperature Humidity Test Machine / Climate Chamber

Scope of application:
Applicable to the adaptability test for the storage, transportation and use of electrical, electronic, instrument and other products, parts and materials under the environment of high and low temperature alternating humidity and heat;It is a reliable testing equipment for various raw materials and components such as electronics, electricians, electrical appliances and plastics for cold, heat, humidity and dry resistance tests and quality control engineering.Especially suitable for high temperature, low temperature and humidity cycle test of optical fiber, LCD, crystal, inductance, circuit board, battery, computer, mobile phone, etc.

Standards:
Compliance with EIA, ASTM, JIS, GB, UL, VDE test standards.
GB2423.1-89: (IEC68-2-1) Low temperature test Aa, Ab;
GB2423.3-93 (IEC 68-2-3): Constant humidity and heat test Ca;
GB2423.34-86: Method of 1004.2 combined cycle test of temperature and humidity.
Basic environmental test code for electrical and electronic products test B: high temperature test method GB 2423.2-89 (IEC68-2-2)
Basic Environmental Test Rules for Electrical and Electronic Products Test Da: Alternating Humidity-Heat Test Method GB/T423.4-93 (IEC68-2-30)

Technical parameters:

Reference size of outer box 1250 x930 x 950mm
Temperature sensor adopt Taiwan P T-100 high precision sensor
Temperature range -65,-50,-40 ~ +130 ºC
Humidity range 20 ~ 98% RH
Temperature fluctuation degree ± 0.5 ºC
Temperature deviation 100 ~ +130 ºC, ≤± 1.5 ºC
Humidity deviation ± 3.0% RH (>75% RH ) ± 5.0% RH (≤ 75% RH )
The cooling time 1 ~ 1.5 ºC / min
Heating time RT ~ + 130 ºC for 60 minutes
