1 Station Fire Testing Equipment BS476-6 Fire Propagation Tests On Building Materials And Structures
1 Station Fire Testing Equipment BS476-6 Fire Propagation Tests On Building Materials And Structures
1 Station Fire Testing Equipment BS476-6 Fire Propagation Tests On Building Materials And Structures
1 Station Fire Testing Equipment BS476-6 Fire Propagation Tests On Building Materials And Structures
1 Station Fire Testing Equipment BS476-6 Fire Propagation Tests On Building Materials And Structures
1 Station Fire Testing Equipment BS476-6 Fire Propagation Tests On Building Materials And Structures
1 Station Fire Testing Equipment BS476-6 Fire Propagation Tests On Building Materials And Structures
1 Station Fire Testing Equipment BS476-6 Fire Propagation Tests On Building Materials And Structures
Specifications
Brand Name :
Daxian
Model Number :
DX8298
Certification :
BS476-6
Place of Origin :
China
MOQ :
one set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability :
15 sets per month
Delivery Time :
15work days
Packaging Details :
Wooden Case
Warranty :
1 Year
Product name :
BS476-6 Fire propagation Tests on Building materials and structures
Standard :
BS476-6
Intake Pressure :
0.1 ~ 0.2MPa
Impact Height :
0-15mm (Adjustable)
Weight :
120kg
Description

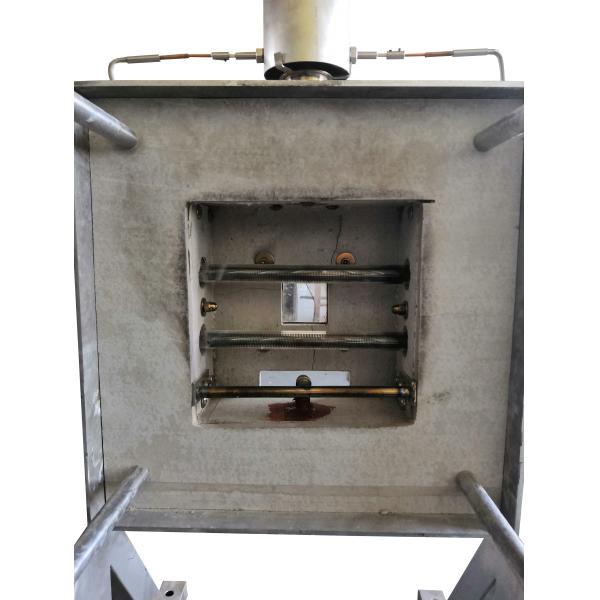

BS476-6 Fire propagation Tests on Building materials and structures
Model: DX8298

Meet the standards:

BS476-6
GB / T 17658-1999: Fire Test of Fire Retardant Wood "Fire Test Method"
Scope of application:
Determination of the fire test performance of products used as internal linings in buildings.
BS 476-6: Fire performance of wall and ceiling products is assessed by flame propagation index size.A thermocouple was used to continuously record the difference between the temperature in the chimney and the room temperature, and the results (the curve of temperature difference and time) were compared with the calibration curve, which was measured in the same way with a specified density of asbestos-cement slabs.
BS 476-6 scope of application:
1. Indoor wall materials; 2. Thermal insulation materials; 3. Ceiling materials
Descriptors:
Construction systems parts, Fire safety in buildings, Comparative tests, Specimen preparation, Ceilings, Test equipment, Ceiling linings, Structural fire protection, Test specimens, Fire-test classifications, Testing conditions, Walls, Mathematical calculations, Fire tests, Construction materials, Wall linings, Calibration, Fire propagation.
Features:

1. Stainless steel cabinet support frame;
2. Calcium Silicate Board Burner;
3. All three samples are wrapped in stainless steel;
4, 2 sets of 1000 W quartz radiation device, to provide thermal radiation for the sample;
5. T-type burner provides flame combustion for the sample;
6. The thermocouple continuously records the temperature and room temperature difference in the chimney;
7. Automatically control the output power according to the time test;
8. The computer automatically processes the data and prints the test report.
Technical parameters:
Ambient temperature operation 10 ℃ to 35 ℃
Natural gas supply The gas supply standard specified in the standard is the standard test gas G112, as specified by BS 4947
Gas flow rate The gas flow rate of the burner can be adjusted from 0 to 5 n / min
Voltage 230V, 10A
Weight 120kg
Pressure 1 kpa
Our products:
1. Fire Testing Equipment
2. Building Material Fire Tester
3. Wire and Cable Fire Tester
4. Environmental Test Chamber
5. Textile Testing Equipment
6. Plastic Testing Equipment
7. Tensile Testing Machine
