ASTM D2303 Rubber Testing Equipment High Voltage Tracking Index Tester
ASTM D2303 Rubber Testing Equipment High Voltage Tracking Index Tester
ASTM D2303 Rubber Testing Equipment High Voltage Tracking Index Tester
ASTM D2303 Rubber Testing Equipment High Voltage Tracking Index Tester
ASTM D2303 Rubber Testing Equipment High Voltage Tracking Index Tester
ASTM D2303 Rubber Testing Equipment High Voltage Tracking Index Tester
ASTM D2303 Rubber Testing Equipment High Voltage Tracking Index Tester
ASTM D2303 Rubber Testing Equipment High Voltage Tracking Index Tester
Specifications
Brand Name :
Daxian
Model Number :
DX8427
Certification :
IEC60587-2007, ASTM D2303
Place of Origin :
China
MOQ :
One set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Wooden case
Usage :
Silicone rubber Corrosion resistance testing machine
Standards :
IEC60587-2007, ASTM D2303
Power :
AC 220V/50HZ
Drop Height :
30mm ~ 40mm Adjustable
Warranty :
12 Months
Test Voltage :
100~6000V Adjustable
Description

DX8427 Electrical Insulating Materials Tracking An...

IEC60587 ASTMD2303 Electrical Tracking Mechanism

Model: DX8427

Technical Description:

The mechanism of electrical impingement on the epoxy resin insulating material using a high voltage of 3.5 kV AC with a frequency of 50 Hz causes the surface of the epoxy resin insulating material to burn.

Standard:


IEC60587-2007, ASTMD2303.



Parameters:

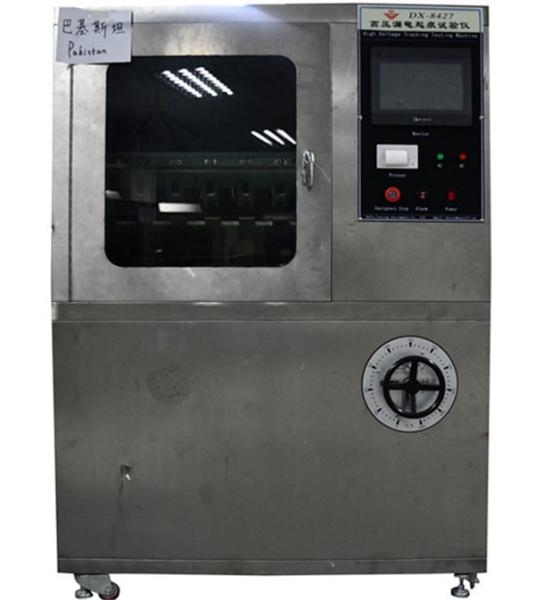

Name DX8427 High Voltage Tracking Index Tester

Box

≥ 0.5 cubic meters

Drop size

44 to 50 drops / cm3

Power supply

AC 220V, 50Hz

Drip height

30mm ~ 40mm adjustable

Electrode Pressure

1.00N±0.05N

Performance Index:
a. Instrument Dimensions: 1500L*1050W*2000H (mm);
b. Operationg Room Size: 1100L*900W*950H (mm);
c. Electrode: thickness: 0.5mm; material: stainless steel;
d. Gape of Electrade: 50.0mm±0.1；
e. Testing Voltage: AC: 0V-6000V no rate adjustable;
DC: 0V-8400V no rate adjustable;
f. Testing Voltage power: 6000W;
g. Liquid Flow Range: 0.0016-1.5ml/min optional setting;
h. Dropping liquid Precision: 0.5%;
i. Stop droping liquid and turn off the Voltage Output if the loop current is more than 60mA;
g. Testing time: 0-10 hours, setting freely;

ASTM D2303 Rubber Testing Equipment High Voltage Tracking Index Tester
