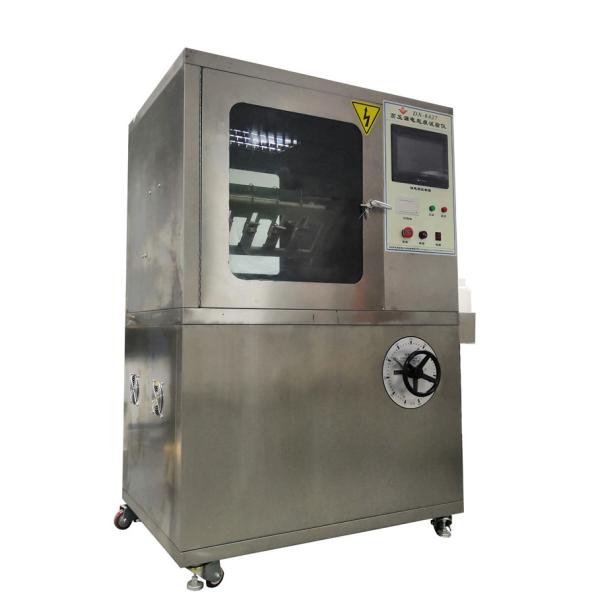

Insulating Materials Plastic Testing Equipment AC 220V 50HZ Tracking Erosion Tester
Insulating Materials Plastic Testing Equipment AC 220V 50HZ Tracking Erosion Tester
Insulating Materials Plastic Testing Equipment AC 220V 50HZ Tracking Erosion Tester
Insulating Materials Plastic Testing Equipment AC 220V 50HZ Tracking Erosion Tester
Insulating Materials Plastic Testing Equipment AC 220V 50HZ Tracking Erosion Tester
Insulating Materials Plastic Testing Equipment AC 220V 50HZ Tracking Erosion Tester
Insulating Materials Plastic Testing Equipment AC 220V 50HZ Tracking Erosion Tester
Insulating Materials Plastic Testing Equipment AC 220V 50HZ Tracking Erosion Tester
Specifications
Brand Name :
Daxian
Model Number :
DX8427
Certification :
ASTM D2303, IEC60587-2007
Place of Origin :
China
MOQ :
One set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Wooden case
Usage :
Silicone rubber Corrosion resistance testing machine
Standards :
IEC60587-2007, ASTM D2303
Power :
AC 220V/50HZ
Test time :
6h
Test Voltage :
100~6000V Adjustable
Warranty :
12 Months
Description

IEC60587 Testing Equipment Insulating Materials Liquid-Contaminant, Inclined-Plane Tracking And Erosion Test Machine

Model: DX8427

Scope:
These test methods cover the evaluation of the relative tracking and erosion resistance of insulating solids using the liquid-contaminant, inclined-plane test.2 The following test methods also can be used to evaluate the tracking resistance of materials: D2132 (contaminants: dust and fog) and D3638 (contaminant: conductive liquid drops).

Standard:


IEC60587-2007, ASTMD2303.



Parameters:

Name DX8427 High Voltage Tracking Index Tester

Box

≥ 0.5 cubic meters

Drop size

44 to 50 drops / cm3

Power supply

AC 220V, 50Hz

Drip height

30mm ~ 40mm adjustable

Electrode Pressure

1.00N±0.05N

Performance Index:

Testing Voltage power 6000W
Instrument Dimensions 1500L*1050W*2000H (mm)
Operationg Room Size 1100L*900W*950H (mm)
Electrode thickness: 0.5mm; material: stainless steel
Gape of Electrade 50.0mm±0.1
Liquid Flow Range 0.0016-1.5ml/min optional setting
Testing time 0-10 hours, setting freely



1. Testing Voltage: AC: 0V-6000V no rate adjustable;
DC: 0V-8400V no rate adjustable;

2. Dropping liquid Precision: 0.5%;
3. Stop droping liquid and turn off the Voltage Output if the loop current is more than 60mA;
