Thermal Stability Testing Machine For The Insulation And Sheath Test Of Polyvinyl Chloride Mixture
Thermal Stability Testing Machine For The Insulation And Sheath Test Of Polyvinyl Chloride Mixture
Thermal Stability Testing Machine For The Insulation And Sheath Test Of Polyvinyl Chloride Mixture
Thermal Stability Testing Machine For The Insulation And Sheath Test Of Polyvinyl Chloride Mixture
Specifications
Brand Name :
Daxian
Model Number :
DX8485
Certification :
GB/T2951.7
Place of Origin :
China
MOQ :
One set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability :
15 sets per month
Delivery Time :
15 work days
Packaging Details :
Wooden Case
Standard :
GB/T2951.7、UL758、 UL1581、 UL62、 ASTM、 GB-1690、IEC811、VDE0281
Temperature range :
room temperature ~ 250°C
Temperature resolution :
0.1°C
Timer :
0~99H
Working power supply :
AC220V/50Hz
Heater power :
3.5KW
Description

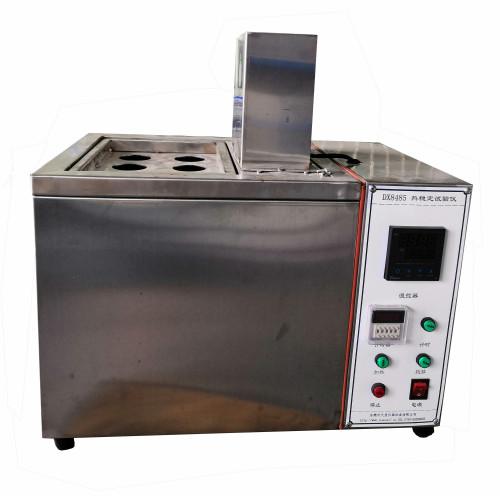

DX8485 Thermal Stability Tester

Thermal Stability Testing Machine For The Insulation And Sheath Test Of Polyvinyl Chloride Mixture

Standards: Made in accordance with GB/T2951.7 "Thermal Stability Test of Insulation and Sheathing", in line with UL758, UL1581, UL62, ASTM, GB-1690, IEC811, VDE0281 test standards.

Scope of application: It is mainly used for the insulation and sheath test of polyvinyl chloride mixture for wires and cables.

Technical Parameters:

1. Temperature range: room temperature ~ 250°C.

2. Temperature resolution: 0.1°C

3. Timer: 0~99H.

4. Working power supply: AC220V/50Hz

5. Heater power: 3.5KW

6. Test oil: 2# lubricating oil and insulating oil are used. (Bring your own)

7. Outer carton size: 350 (length), × 300 (width), × 250 mm (height)

8. Inner size: 27L

9. Glass tube: 110mm long, 5mm outer diameter, 4mm inner diameter sealed at one end

10. PH value test strip: 1~7PH
