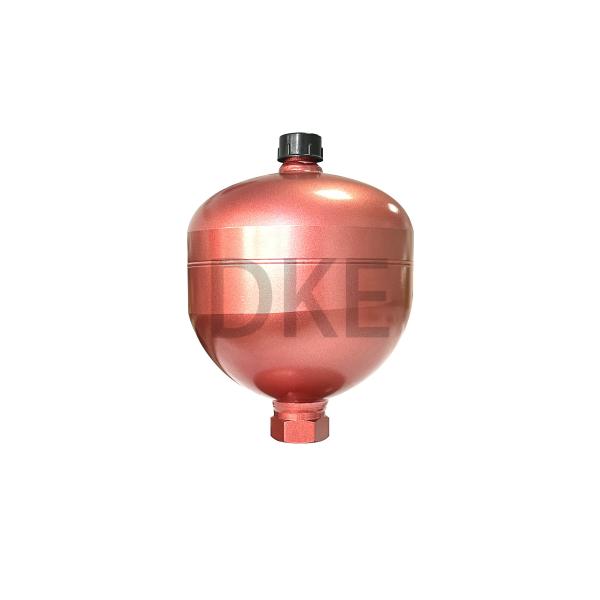

HYDAC SBO-210-0.5 Adjustable Pre Charge Pressure Diaphragm Accumulators SBO 210 Series
HYDAC SBO-210-0.5 Adjustable Pre Charge Pressure Diaphragm Accumulators SBO 210 Series
HYDAC SBO-210-0.5 Adjustable Pre Charge Pressure Diaphragm Accumulators SBO 210 Series
HYDAC SBO-210-0.5 Adjustable Pre Charge Pressure Diaphragm Accumulators SBO 210 Series
HYDAC SBO-210-0.5 Adjustable Pre Charge Pressure Diaphragm Accumulators SBO 210 Series
HYDAC SBO-210-0.5 Adjustable Pre Charge Pressure Diaphragm Accumulators SBO 210 Series
Specifications
Brand Name :
HYDAC
Model Number :
SBO-210-0.5
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiation
Delivery Time :
1-7Work Days After Payment
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000PCs per month
Material – fluid port :
Carbon Steel
Series :
SBO 210
Pre-charge pressure adjustable :
Yes
Preferred models :
Yes
Material Accumulator shell :
Carbon Steel
Connection type (fluid) :
Female Thread
Type :
Non-Repairable, Welded, Rechargeable
Material Diaphragm :
NBR
Description

HYDAC SBO-210-0.5

Adjustable Pre-charge Pressure Diaphragm Accumulators

Product Description:

HYDAC diaphragm accumulators utilize nitrogen gas to store hydraulic energy. This is necessary because fluids are not compressible on their own. The accumulator uses a diaphragm to separate the gas and fluid sides.

When pressure increases, fluid is drawn into the accumulator and compresses the gas. As pressure decreases, the gas expands and returns energy to the hydraulic circuit.

A poppet is included in the diaphragm to prevent it from being pushed through the fluid port.

HYDAC produces two types of diaphragm accumulators: welded (non-repairable) and threaded (repairable). They are commonly used in industrial and mobile applications for energy storage, pressure maintenance, leakage compensation, and vehicle hydraulic systems (such as brakes and suspension).

Features:

Compact Design

The diaphragm accumulator boasts a compact design that allows for easy integration into hydraulic systems, making it a versatile choice for a variety of applications.

Low Weight

Thanks to its lightweight construction, the diaphragm accumulator is an ideal option for mobile applications where weight is a crucial factor.

Flexible Mounting Positions

The diaphragm accumulator can be mounted in various positions, providing flexibility in design and installation.

Extremely Quick Shock Response

The diaphragm accumulator is known for its exceptionally fast shock response, making it efficient in mitigating sudden pressure spikes and protecting the system from damage.

Low Cost

The diaphragm accumulator is a cost-effective solution compared to other accumulator types, making it a popular choice for budget-conscious applications.

Low Lubricity Fluids, like Water

This type of accumulator is compatible with low lubricity fluids, including water, making it a suitable option for use in various industries.

Two Types of Diaphragm Accumulators

There are two types of diaphragm accumulators available: non-repairable (welded) and repairable (threaded).

Non-Repairable (Welded) Diaphragm Accumulators

These types of accumulators cannot be repaired and are instead welded shut during the manufacturing process.

Repairable (Threaded) Diaphragm Accumulators

As the name suggests, these types of accumulators can be repaired if necessary, thanks to their threaded design.

Diaphragm accumulators have a proven track record of successful application in both industrial and mobile settings, providing essential functions such as:

  • Reducing pump capacity and electrical energy consumption
  • Providing auxiliary hydraulic power in emergencies
  • Limiting pressure fluctuations caused by temperature changes in closed hydraulic loops
  • Compensating for leakage in the system
  • Minimizing pump pulsations
  • Absorbing shocks to protect the system

Technical Parameters:

Type Non-Repairable, Welded, Rechargeable
Series SBO 210
Material – fluid port Carbon Steel
Material Diaphragm NBR
Connection type (fluid) Female Thread
Preferred models Yes
Material Accumulator shell Carbon Steel
Pre-charge pressure adjustable Yes
Features Energy accumulator, Diaphragm Accumulators, Precision Filter Elements

HYDAC SBO-210-0.5 Adjustable Pre Charge Pressure Diaphragm Accumulators SBO 210 SeriesHYDAC SBO-210-0.5 Adjustable Pre Charge Pressure Diaphragm Accumulators SBO 210 Series

Applications:

Some Common Applications of Diaphragm Accumulators:

Diaphragm accumulators have a wide range of uses in various industries. Some common applications include:

  • Agricultural Machinery & Equipment
  • Forestry Equipment
  • Machine Tools
  • Mining Machinery & Equipment
  • Mobile & Construction Equipment
  • Off-Road Equipment

Packing and Shipping:

Packaging and Shipping
Packaging:

The Precision Filter Elements are packaged in high quality cardboard boxes with foam padding to protect the product during shipping. Each filter element is individually wrapped in plastic to prevent any damage or contamination during transport.

Shipping:

The Precision Filter Elements are shipped via air or sea freight, depending on the customer's preference and order quantity. For smaller orders, we offer express shipping options for faster delivery. The shipping cost and estimated delivery time will be provided upon request.

FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is HYDAC.
  • Q: What is the model number of this product?
    A: The model number of this product is SBO-250-0.075.
  • Q: Where is this product manufactured?
    A: This product is manufactured in China.
  • Q: Is this product certified?
    A: Yes, this product is certified with CE.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 1.
  • Q: Can the price of this product be negotiated?
    A: Yes, the price of this product can be negotiated.
  • Q: How long is the delivery time for this product?
    A: The delivery time for this product is 1-7 work days after payment.
  • Q: What are the payment terms for this product?
    A: The payment terms for this product are T/T, Western Union, and Paypal.
  • Q: What is the supply ability for this product?
    A: The supply ability for this product is 5000 PCs per month.
