SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series
SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series
SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series
SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series
SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series
SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series
Specifications
Brand Name :
SMC
Model Number :
KKA4P-02F KKA Series
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000 pieces/1Month
Delivery Time :
1-7Work Days After Payment
Packaging Details :
Plastic bag, Box, Carton, Pallet
Operating Pressure Range(MPa) :
0.1-1MPa
Pipe Connection Bore Dia. :
Rc1/4
Operating Temperature Range(°C) :
-5～150
Applicable Fluid :
Water / Air
Size of Body :
1/4
Guaranteed Proof Pressure :
10MPa
Description

KKA Series SS316 (KKA4P-02F) Type Plug (P) Female Thread Type S Coupler

Configured Specifications

Type Standard Joint Type Female Threaded Tapped
Male/Female Plug Body Material SUS304
Seal Material [NBR] 00011 Applicable Fluid Water / Air
Operating Environment, Applications Standard Operating Temperature Range(°C) -5～150
Operating Pressure Range(MPa) 0～1 Size of Body 1/4
Pipe Connection Bore Dia. Rc1/4 With or Without Check Valve Y

S Coupler KKA Series Stainless Steel Type Plug (P) Female Thread Type Specifications

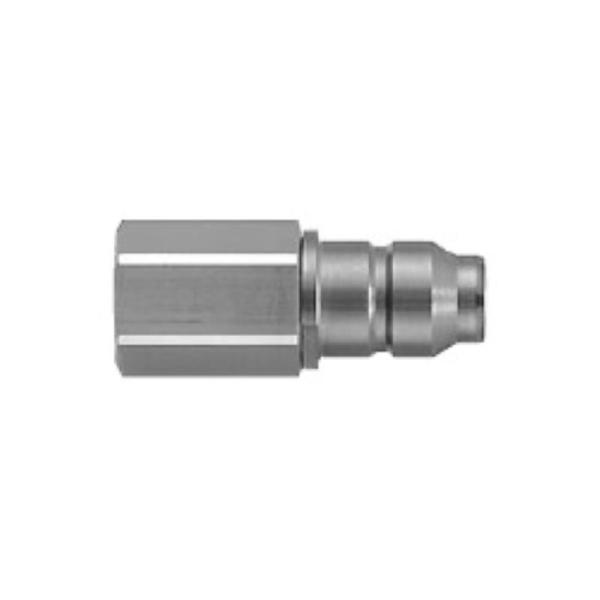

Without, check valve, plug, female thread type external appearance

SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series

JIS symbols for the KKA series

SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series

Characteristics of Models With Check Valve on Both Sides

Body Size Liquid Dripping Amount (cm³ per instance) Aeration Amount (cm³ per instance)
KKA3 0.02 0.1
KKA4 0.04 0.1
KKA6 0.06 0.2
KKA7 0.14 0.5
KKA8 0.27 0.9
KKA9 0.77 2.7
  • "Liquid dripping amount" refers to the amount of internal water that is lost when the plug socket is disengaged.
  • "Aeration amount" refers to the amount of external air that is entrained when the plug and socket are connected.
Working Fluid Water, air
Operating Pressure Range*1 KKA3: -100 kPa to 1 MPa
KKA4, KKA6, KKA7, KKA8, KKA9: 0 to 1 MPa
Guaranteed Proof Pressure 10 MPa
Ambient Temperature and Working Fluid Temperature Range -5 to +150℃ (no freezing)
*Cannot be used for steam.
Non-greased Specification Does not use grease.
(Rubber and metal sliding parts: fluorine coating)
Material Metal parts: SUS304; rubber parts: fluoroelastomer (special FKM)

*1: Do not use with a leak tester or for vacuum retention as zero leakage cannot be guaranteed.

Performance

  • Plug connection method: single-action connection and release
  • Check valve: check valve built-in to both plug and socket sides, without check valve

*The KKA series cannot be connected to the KK series or the KKH series.

Structural Drawing

SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series

Plug structural drawing

SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series

KKA series structural drawing

Number Part Name Material Note
1 Plug body SUS304 Fluorine coating
2 Plug rear body SUS304 -
3 Plug valve SUS304 -
4 Valve O-ring Special FKM Fluorine coating
5 Plug body O-ring Special FKM Fluorine coating
6 Plug valve spring Equivalent to SUS304 KKA3
SUS304 KKA4, KKA6, KKA7, KKA8, KKA9

  • Dimensions: Plug (P)

    With Check Valve

    SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series

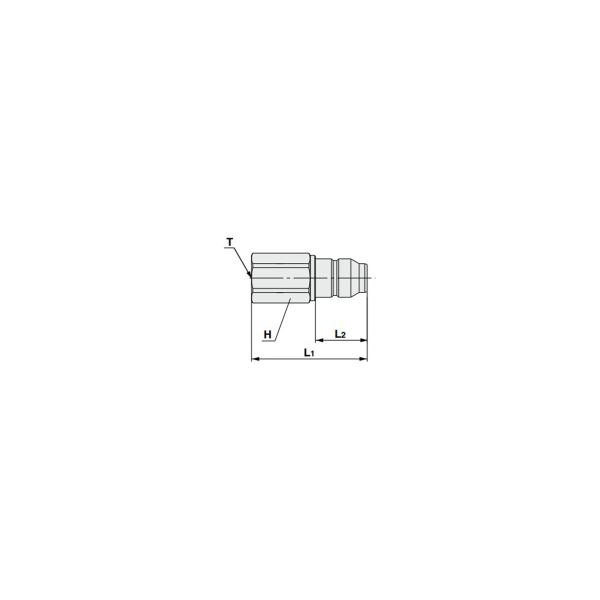

    With check valve, female thread type dimensional drawing

Body Size Model T
Connection Port Diameter		 H
Width Across Flats		 L1 L2 Minimum Hole Diameter Effective Cross-sectional Area
mm2		 Weight
g
1/8 KKA3P-01F Rc 1/8 14 36.0 16.0 5.6 17.4 20.2
KKA3P-02F Rc 1/4 17 39.6 31.8
KKA3P-03F Rc 3/8 19 40.4 35.8
1/4 KKA4P-02F Rc 1/4 17 43.4 18.9 6.9 26.4 36.1
KKA4P-03F Rc 3/8 19 44.4 40.2
KKA4P-04F Rc 1/2 24 48.6 69.7
1/2 KKA6P-03F Rc 3/8 48.7 20.4 10.0 54.2 84.1
KKA6P-04F Rc 1/2 52.9 79.7
KKA6P-06F Rc 3/4 30 54.6 123.8
3/4 KKA7P-04F Rc 1/2 32 67.7 27.6 13.5 99.6 217.1
KKA7P-06F Rc 3/4 69.4 196.8
KKA7P-10F Rc 1 41 72.4 325.9
1 KKA8P-06F Rc 3/4 82.0 35.6 17.5 168.3 420.5
KKA8P-10F Rc 1 85.0 391.3
KKA8P-12F Rc1 1/4 50 87.3 552.8
1 1/4 KKA9P-10F Rc 1 55 107.8 49.1 24.6 332.1 986.9
KKA9P-12F Rc1 1/4 110.1 925.6
KKA9P-14F Rc1 1/2 110.1 848.2
