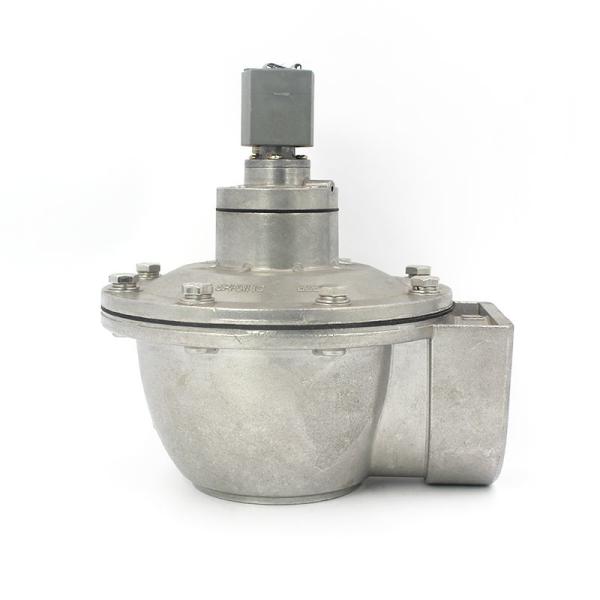

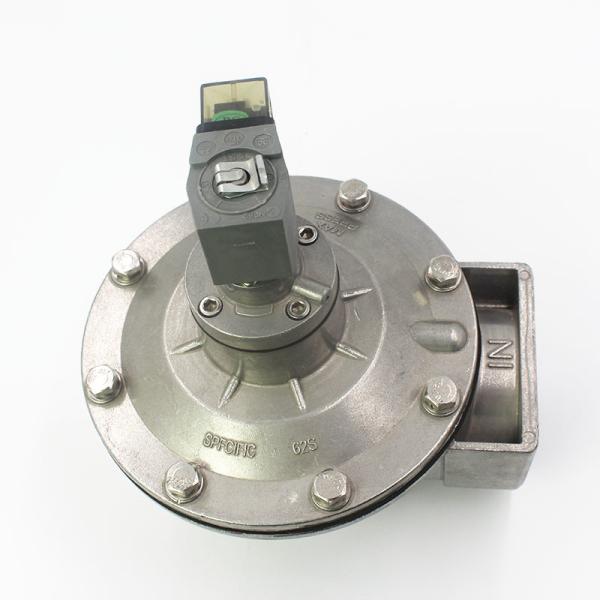

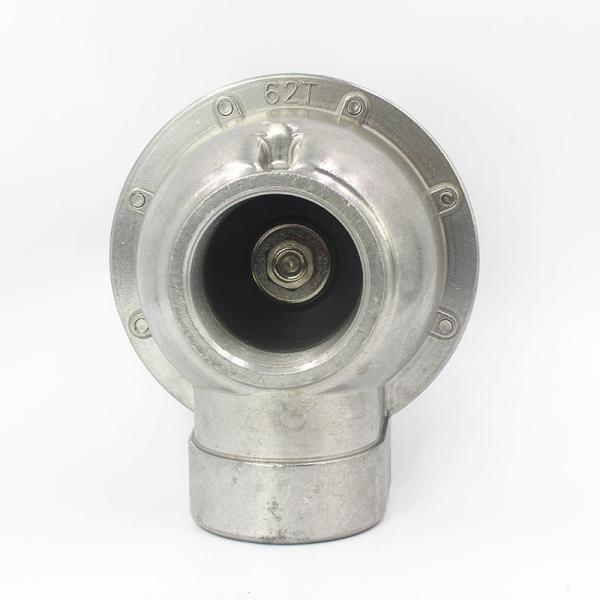

2-1/2'' Goyen Type Solenoid Electromagnetic Dust Pulse Valve CA62T

Dust Collector Pulse Jet Valve is controlled by solenoid coil, so the quality of the coil and the proper use of the coil will determine the operation of the valve. The main reasons for the Solenoid Valve Coil to burn out is that the coil temperature is too high, and there are several reasons:

1: The actual voltage fluctuation is too large and exceeds the rated voltage range.

2: The starting power of the coil is not enough, so that the Solenoid Valve is always open, the coil heats up for a long time, the temperature rises, and finally the coil is burnt.

Overall dimension of CA62T 2 1/2 Inch Pulse Jet Valve:

Technical parameters of T Series Goyen Type Solenoid Valves:

Main Material of CA62T Goyen Replacement Diaphragm Valve:

Operating Diagram of T Series Goyen Type Diaphragm Valve:

Brief introduction of pulse jet valve in dust collector:
According to the direction of the gas input end and the output end: right angle type, the angle between the input end and the output end is 90°, the input end is connected with the gas distribution box, the output end is connected with the dust collector blow pipe; the submerged type is directly It is installed on the gas distribution box and connected to the gas distribution box at the input end, and the output end is connected with the dust spray pipe by the connecting pipe; the straight-through type, the center line of the input end and the output end are the same straight line, and the input end is connected with the gas distribution box. Connected, the output is connected to the dust collector blow pipe.

When the pulse solenoid valve is opened, the air in the air bag enters the blow pipe through the pulse valve, and is sprayed to the filter bag, so that the dust bag is rapidly expanded, and the dust on the dust bag is shaken off, the dust bag is clean and the air permeability is improved, and the dust remover is cleaned. continue working. For the case that the valve opening is only closed for a short time, the normally open pulse solenoid valve should be used. When used in short-term work and large batch sizes, special orders can be made to reduce power consumption.

Controlled by the output signal of the pulse blowing controller, the filter bags are cleaned one by one, the large particles fall directly into the ash bucket, and the small particles adhere to the filter bag. When the dust on the filter bag is too much, the gas permeability is not good. The negative pressure of the precipitator is too large, the differential pressure controller gives a signal to the PLC, then the PLC automatically starts the pulse valve, the pulse valve will automatically open, and the filtered static air enters the upper tank to discharge, so that the resistance of the precipitator remains at the set Within the scope to ensure the processing capacity and dust collection efficiency of the dust collector.
