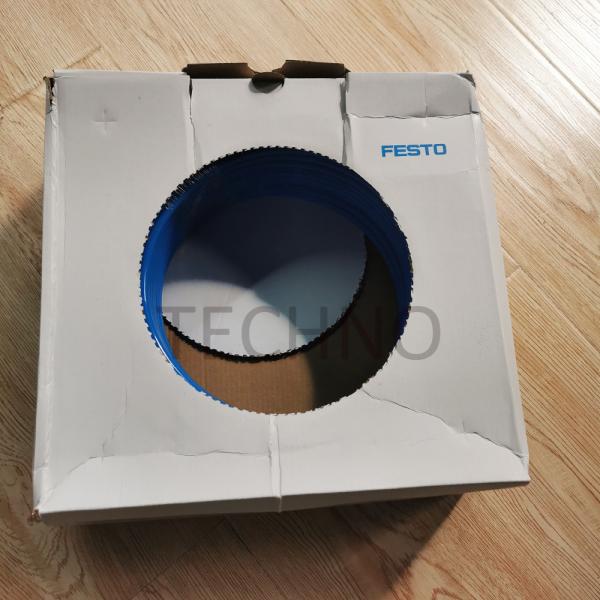

FESTO Polyurethane Pneumatic PU Tube PUN-H-8X1,25-BL Pneumatic Hose Pipe
FESTO Polyurethane Pneumatic PU Tube PUN-H-8X1,25-BL Pneumatic Hose Pipe
FESTO Polyurethane Pneumatic PU Tube PUN-H-8X1,25-BL Pneumatic Hose Pipe
FESTO Polyurethane Pneumatic PU Tube PUN-H-8X1,25-BL Pneumatic Hose Pipe
FESTO Polyurethane Pneumatic PU Tube PUN-H-8X1,25-BL Pneumatic Hose Pipe
FESTO Polyurethane Pneumatic PU Tube PUN-H-8X1,25-BL Pneumatic Hose Pipe
FESTO Polyurethane Pneumatic PU Tube PUN-H-8X1,25-BL Pneumatic Hose Pipe
FESTO Polyurethane Pneumatic PU Tube PUN-H-8X1,25-BL Pneumatic Hose Pipe
FESTO Polyurethane Pneumatic PU Tube PUN-H-8X1,25-BL Pneumatic Hose Pipe
FESTO Polyurethane Pneumatic PU Tube PUN-H-8X1,25-BL Pneumatic Hose Pipe
FESTO Polyurethane Pneumatic PU Tube PUN-H-8X1,25-BL Pneumatic Hose Pipe
FESTO Polyurethane Pneumatic PU Tube PUN-H-8X1,25-BL Pneumatic Hose Pipe
Specifications
Brand Name :
FESTO
Model Number :
PUN-H-8X1,25-BL
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negociation
Payment Terms :
Western Union, T/T,paypal
Supply Ability :
5000 Pieces Per Month
Delivery Time :
1-7 Work Days After Payment
Packaging Details :
Carton /According To Client Requirements
Operating pressure :
-0.95 ~ +10bar
Operating temperature :
-35~+60°C
Media :
Compressed air, vacuum, water
Material :
Sheath: polyurethane
material :
PU
type :
Pneumatic
Description

FESTO PU Tubings PUN-H-8X1,25-BL

FESTO PU Tubings PUN-H-8X1,25-BL Covers 80% Of Your Automation Tasks Environmental Influences Transparent Versions

Tubing PUN-H and push-in fitting QS are the perfect combination for many applications.

They ensure the optimal, trouble-free operation of your systems at all times, are resistant

to hydrolysis and can be used in environments with high moisture levels.

Reliable compressed air supply

Tubing PUN-H is suitable for standard applications and in wet areas, or when in contact with water at up to 50°C.

Thanks to the use of a modified material it won't crack through hydrolysis.

Short installation time thanks to proven plug and work

Connecting and releasing is made really simple by the push-in fittings QS in the standard Festo quality with the proven sealing and release principle.

Highly versatile

Not only is the kink-resistant PUN-H easy to install, its resistance to hydrolysis and microbes makes it perfect for use in the food industry*. In addition, the black version is UV-resistant and can thus be used outdoors.

Transparency for greater safety

The transparent versions make it easy to detect particles, moisture and oil in the tubing. This provides an easy and effective way of monitoring the condition of any potential risks to your system

Feature Tubing
PUN-H		 Push-in fitting
QS(M)		 One-way flow control valve
GRLA-D
Material Sheath: polyurethane Housing: PBT/nickel-plated brass Die-cast zinc
　 Calibration: external Sealing ring: NBR NBR
Releasing ring: POM POM
Tubing retainer mechanism: stainless
steel		 Stainless steel
Feature
Tubing O.D. [mm] 2, 3, 4, 6, 8, 10, 12, 14, 16 2, 3, 4, 6, 8, 10, 12, 16, 22 3, 4, 6, 8, 10, 12
PUN-H colours Blue, black, silver, green, red,
yellow		 　 　
Colours: transparent versions
of PUN-H-T (for Ø 4 – 12 mm)		 Blue, natural, green, red, yellow,
black		 　 　
Thread 　 M, G and R threads
M3 – M7, 1/8 to 3/4		 G thread
M5, 1/8 to 1/2
Area of application
Operating pressure [bar] -0.95 ~+10 -0.95 ~ +14 -0.2~ +10
Operating temperature [°C] -35~ +60 -10~ +80 -10 ~ +60
Resistance and suitability**
Resistant to chemicals + + 　
Hydrolysis-resistant ++ +++ 　
Food-grade* FDA listed material - -
Media Compressed air, vacuum, water*** Compressed air, vacuum, water Air

* See extended material information

** +++ Highly suitable ++ Suitable + Limited suitability – Not suitable

*** As per the manufacturer’s declaration

PUN-H can be very flexible used in standard applications.

However, Festo also offers other reliable combinations tailored to your requirements for applications with environmental influences.
