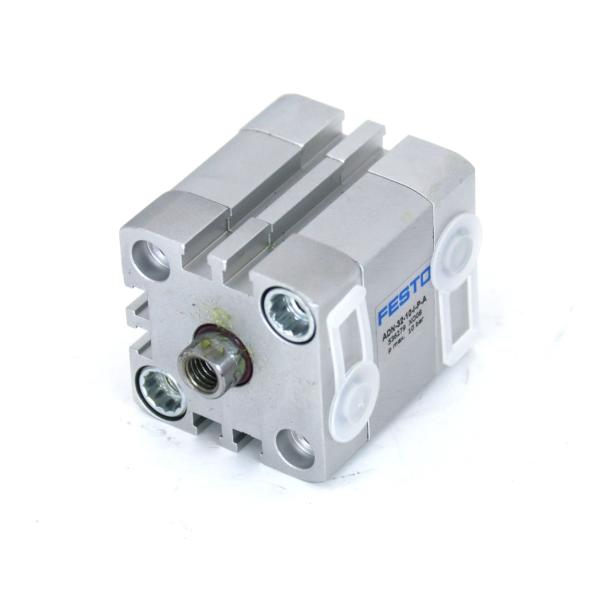

Compact Pneumatic Cylinder ADN-32-40-I-P-A Festo Pneumatic Cylinder ADN-32-5/10/15/20/25/30/40/50/60/80-I-P-A Double Acting
Compact Pneumatic Cylinder ADN-32-40-I-P-A Festo Pneumatic Cylinder ADN-32-5/10/15/20/25/30/40/50/60/80-I-P-A Double Acting
Compact Pneumatic Cylinder ADN-32-40-I-P-A Festo Pneumatic Cylinder ADN-32-5/10/15/20/25/30/40/50/60/80-I-P-A Double Acting
Compact Pneumatic Cylinder ADN-32-40-I-P-A Festo Pneumatic Cylinder ADN-32-5/10/15/20/25/30/40/50/60/80-I-P-A Double Acting
Compact Pneumatic Cylinder ADN-32-40-I-P-A Festo Pneumatic Cylinder ADN-32-5/10/15/20/25/30/40/50/60/80-I-P-A Double Acting
Compact Pneumatic Cylinder ADN-32-40-I-P-A Festo Pneumatic Cylinder ADN-32-5/10/15/20/25/30/40/50/60/80-I-P-A Double Acting
Specifications
Brand Name :
FESTO
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiation
Packaging Details :
Carton /As The Clients Require
Delivery Time :
1-7Work Days After Payment
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000 pieces/1Month
Model Number :
ADN-32-40-I-P-A
Operating pressure :
0.12 MPa ... 1 MPa
Ambient temperature :
-20 °C ... 80 °C
Material dynamic seals :
NBR TPE-U(PU)
Design :
Piston Piston Rod
Material cylinder barrel :
Wrought Aluminium Alloy
Piston-rod end Weight Weight :
Male Thread
Description

Product Description:

More than the standard

The compact cylinders comply with or are based on the ISO 21287 standard, depending on the piston diameter. The ADN/AEN is characterized by its compact design and wide range of application thanks to the large number of variants. The variants can be configured using a modular product system.

Powerful

The compact cylinders comply with or are based on the ISO 21287 standard, depending on the piston diameter. The ADN/AEN is characterized by its compact design and wide range of application thanks to the large number of variants.

  • Integrated cushioning for absorbing residual energy
  • Long service life thanks to exceptional cushioning characteristics and low friction values
Convenient

Easy to mount with a comprehensive range of mounting accessories for just about every type of installation. Highly flexible thanks to the wide range of variants. Contactless position sensing using proximity switches.

Reliable

Optimized manufacturing methods, patented technology, and more than 40 years of experience in the field of cylinders make Festo and ADN/AEN a great partner.

Compact Pneumatic Cylinder ADN-32-40-I-P-A Festo Pneumatic Cylinder ADN-32-5/10/15/20/25/30/40/50/60/80-I-P-A Double ActingCompact Pneumatic Cylinder ADN-32-40-I-P-A Festo Pneumatic Cylinder ADN-32-5/10/15/20/25/30/40/50/60/80-I-P-A Double ActingCompact Pneumatic Cylinder ADN-32-40-I-P-A Festo Pneumatic Cylinder ADN-32-5/10/15/20/25/30/40/50/60/80-I-P-A Double Acting
ADN-12-5-I-P-A 536211 ADN-12-5-A-P-A 536204
ADN-12-10-I-P-A 536212 ADN-12-10-A-P-A 536205
ADN-12-15-I-P-A 536213 ADN-12-15-A-P-A 536206
ADN-12-20-I-P-A 536214 ADN-12-20-A-P-A 536207
ADN-12-25-I-P-A 536215 ADN-12-25-A-P-A 536208
ADN-12-30-I-P-A 536216 ADN-12-30-A-P-A 536209
ADN-12-40-I-P-A 536217 ADN-12-40-A-P-A 536210
ADN-16-5-I-P-A 536226 ADN-16-5-A-P-A 536219
ADN-16-10-I-P-A 536227 ADN-16-10-A-P-A 536220
ADN-16-15-I-P-A 536228 ADN-16-15-A-P-A 536221
ADN-16-20-I-P-A 536229 ADN-16-20-A-P-A 536222
ADN-16-25-I-P-A 536230 ADN-16-25-A-P-A 536223
ADN-16-30-I-P-A 536231 ADN-16-30-A-P-A 536224
ADN-16-40-I-P-A 536232 ADN-16-40-A-P-A 536225
ADN-16-50-I-P-A 536341 ADN-16-50-A-P-A 536331
ADN-20-5-I-P-A 536242 ADN-20-5-A-P-A 536234
ADN-20-10-I-P-A 536243 ADN-20-10-A-P-A 536235
ADN-20-15-I-P-A 536244 ADN-20-15-A-P-A 536236
ADN-20-20-I-P-A 536245 ADN-20-20-A-P-A 536237
ADN-20-25-I-P-A 536246 ADN-20-25-A-P-A 536238
ADN-20-30-I-P-A 536247 ADN-20-30-A-P-A 536239
ADN-20-40-I-P-A 536248 ADN-20-40-A-P-A 536240
ADN-20-50-I-P-A 536249 ADN-20-50-A-P-A 536241
ADN-20-60-I-P-A 536362 ADN-20-60-A-P-A 536352
ADN-25-5-I-P-A 536259 ADN-25-5-A-P-A 536251
ADN-25-10-I-P-A 536260 ADN-25-10-A-P-A 536252
ADN-25-15-I-P-A 536261 ADN-25-15-A-P-A 536253
ADN-25-20-I-P-A 536262 ADN-25-20-A-P-A 536254
ADN-25-25-I-P-A 536263 ADN-25-25-A-P-A 536255
ADN-25-30-I-P-A 536264 ADN-25-30-A-P-A 536256
ADN-25-40-I-P-A 536265 ADN-25-40-A-P-A 536257
ADN-25-50-I-P-A 536266 ADN-25-50-A-P-A 536258
ADN-25-60-I-P-A 536383 ADN-25-60-A-P-A 536373
ADN-32-5-I-P-A 536278 ADN-32-5-A-P-A 536268
ADN-32-10-I-P-A 536279 ADN-32-10-A-P-A 536269
ADN-32-15-I-P-A 536280 ADN-32-15-A-P-A 536270
ADN-32-20-I-P-A 536281 ADN-32-20-A-P-A 536271
ADN-32-25-I-P-A 536282 ADN-32-25-A-P-A 536272
ADN-32-30-I-P-A 536283 ADN-32-30-A-P-A 536273
ADN-32-40-I-P-A 536284 ADN-32-40-A-P-A 536274
ADN-32-50-I-P-A 536285 ADN-32-50-A-P-A 536275
ADN-32-60-I-P-A 536286 ADN-32-60-A-P-A 536276
ADN-32-80-I-P-A 536287 ADN-32-80-A-P-A 536277
ADN-40-5-I-P-A 536299 ADN-40-5-A-P-A 536289
ADN-40-10-I-P-A 536300 ADN-40-10-A-P-A 536290
ADN-40-15-I-P-A 536301 ADN-40-15-A-P-A 536291
ADN-40-20-I-P-A 536302 ADN-40-20-A-P-A 536292
ADN-40-25-I-P-A 536303 ADN-40-25-A-P-A 536293
ADN-40-30-I-P-A 536304 ADN-40-30-A-P-A 536294
ADN-40-40-I-P-A 536305 ADN-40-40-A-P-A 536295
ADN-40-50-I-P-A 536306 ADN-40-50-A-P-A 536296
ADN-40-60-I-P-A 536307 ADN-40-60-A-P-A 536297
ADN-40-80-I-P-A 536308 ADN-40-80-A-P-A 536298
ADN-50-5-I-P-A 536320 ADN-50-5-A-P-A 536310
ADN-50-10-I-P-A 536321 ADN-50-10-A-P-A 536311
ADN-50-15-I-P-A 536322 ADN-50-15-A-P-A 536312
ADN-50-20-I-P-A 536323 ADN-50-20-A-P-A 536313
ADN-50-25-I-P-A 536324 ADN-50-25-A-P-A 536314
ADN-50-30-I-P-A 536325 ADN-50-30-A-P-A 536315
ADN-50-40-I-P-A 536326 ADN-50-40-A-P-A 536316
ADN-50-50-I-P-A 536327 ADN-50-50-A-P-A 536317
ADN-50-60-I-P-A 536328 ADN-50-60-A-P-A 536318
ADN-50-80-I-P-A 536329 ADN-50-80-A-P-A 536319
ADN-63-10-I-P-A 536342 ADN-63-10-A-P-A 536332
ADN-63-15-I-P-A 536343 ADN-63-15-A-P-A 536333
ADN-63-20-I-P-A 536344 ADN-63-20-A-P-A 536334
ADN-63-25-I-P-A 536345 ADN-63-25-A-P-A 536335
ADN-63-30-I-P-A 536346 ADN-63-30-A-P-A 536336
ADN-63-40-I-P-A 536347 ADN-63-40-A-P-A 536337
ADN-63-50-I-P-A 536348 ADN-63-50-A-P-A 536338
ADN-63-60-I-P-A 536349 ADN-63-60-A-P-A 536339
ADN-63-80-I-P-A 536350 ADN-63-80-A-P-A 536340
ADN-80-10-I-P-A 536363 ADN-80-10-A-P-A 536353
ADN-80-15-I-P-A 536364 ADN-80-15-A-P-A 536354
ADN-80-20-I-P-A 536365 ADN-80-20-A-P-A 536355
ADN-80-25-I-P-A 536366 ADN-80-25-A-P-A 536356
ADN-80-30-I-P-A 536367 ADN-80-30-A-P-A 536357
ADN-80-40-I-P-A 536368 ADN-80-40-A-P-A 536358
ADN-80-50-I-P-A 536369 ADN-80-50-A-P-A 536359
ADN-80-60-I-P-A 536370 ADN-80-60-A-P-A 536360
ADN-80-80-I-P-A 536371 ADN-80-80-A-P-A 536361
ADN100-10-I-P-A 536384 ADN100-10-A-P-A 536374
ADN-100-15-I-P-A 536385 ADN-100-15-A-P-A 536375
ADN-100-20-I-P-A 536386 ADN-100-20-A-P-A 536376
ADN-100-25-I-P-A 536387 ADN-100-25-A-P-A 536377
ADN-100-30-I-P-A 536388 ADN-100-30-A-P-A 536378
ADN-100-40-I-P-A 536389 ADN-100-40-A-P-A 536379
ADN-100-50-I-P-A 536390 ADN-100-50-A-P-A 536380
ADN-100-60-I-P-A 536391 ADN-100-60-A-P-A 536381
ADN-100-80-I-P-A 536392 ADN-100-80-A-P-A 536382

Applications:

Application

For small loads, low speeds, and a small cushioning capacity, this product is ideal. It efficiently absorbs and dissipates impact forces in such scenarios.

However, for larger loads and higher speeds, a greater cushioning capacity is required. This product is still suitable, but it may not be as effective in minimizing the impact forces.

Therefore, if you want to ensure maximum protection for your larger loads that are moving at high speeds, we recommend selecting a product with a larger cushioning capacity that can better absorb and dissipate impact forces.

Support and Services:

The Piston Pneumatic Cylinder is a mechanical device that uses the power of compressed gas to produce force in a reciprocal linear motion.

Our product technical support and services for the Piston Pneumatic Cylinder include:

  • Expert technical assistance to help troubleshoot any issues or answer questions
  • Custom design and engineering services to meet specific application requirements
  • Fast and reliable repair and maintenance services to ensure optimal performance and longevity of your equipment
  • Extensive inventory of replacement parts and accessories to minimize downtime
  • Training and educational resources to improve your understanding of the Piston Pneumatic Cylinder and its application

Our commitment to quality and customer satisfaction is unmatched in the industry. Contact us today for more information on our Piston Pneumatic Cylinder product technical support and services.

Packing and Shipping:

Product Packaging:

  • The Piston Pneumatic Cylinder is carefully packed in a sturdy cardboard box
  • The cylinder is wrapped in a protective foam layer to prevent any damage during transportation
  • All necessary accessories and installation instructions are included in the package

Shipping:

  • The product will be shipped within 1-2 business days after receiving the order
  • We offer free standard shipping to all locations within the continental United States
  • Express shipping options are available at an additional cost for faster delivery
  • We also offer international shipping to select countries. Please contact us for more information
