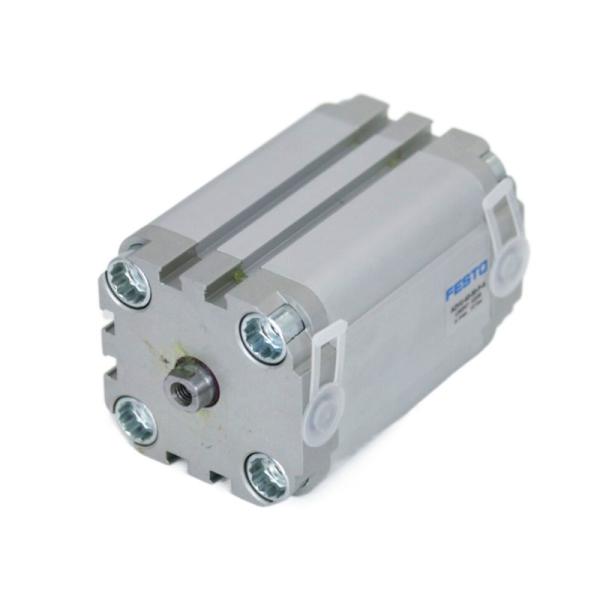

ADVU-50-15-A-P-A Air Cylinder with Aluminum Barrel for Industrial Environments
ADVU-50-15-A-P-A Air Cylinder with Aluminum Barrel for Industrial Environments
ADVU-50-15-A-P-A Air Cylinder with Aluminum Barrel for Industrial Environments
ADVU-50-15-A-P-A Air Cylinder with Aluminum Barrel for Industrial Environments
Specifications
Brand Name :
FESTO
Model Number :
ADVU-50-15-A-P-A
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiation
Packaging Details :
Carton /As The Clients Require
Delivery Time :
1-7Work Days After Payment
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000 pieces/1Month
Operating pressure :
0.12 MPa ... 1 MPa
Design :
Piston Piston Rod
Material cylinder barrel :
Wrought Aluminium Alloy
Piston-rod end Weight Weight :
Male Thread
Ambient temperature :
-20 °C ... 80 °C
Connection Method :
G1/8
Description

Product Description:

The FESTO Cylinder ADVU Series

The FESTO cylinder ADVU series is highly regarded in the fields of automation and industrial control, offering a range of features suitable for a wide range of application scenarios. The main attributes of the ADVU series cylinder are as follows:

1. Structural Features

The ADVU series cylinder is designed using a modular structure, providing a compact and flexible installation method. The piston of the cylinder has a magnetic ring, and a magnetic switch is installed directly onto the cylinder barrel, eliminating the need for additional stroke valves or stroke switches to control reciprocating motion.

2. Performance Parameters
  • Stroke: The stroke of the ADVU series cylinder varies from 40mm to 100mm, with specific models such as ADVU-100-80-P-A having an 80mm stroke.
  • Piston diameter: The piston diameter of the ADVU series ranges from 32mm to 100mm, with specific models such as ADVU-32-40-A-P-A featuring a piston diameter of 32mm, and ADVU-100-80-P-A featuring a piston diameter of 100mm.
  • Working pressure: The working pressure of the ADVU series ranges from 0.6 bar to 10 bar. ADVU-100-80-P-A, for example, has a working pressure range of 0.6 bar to 10 bar1.
  • Buffer device: Elastic buffer plates/rings are present at both ends of the cylinder, reducing impact and absorbing residual energy.
3. Application Scenarios

The FESTO compact cylinder ADVU series finds extensive use in automation control, robotics, semiconductor manufacturing, and printing, owing to its compact structure, easy installation, and reliable performance.

4. Technical Parameters
  • Theoretical force value: For instance, ADVU-63-30-A-P-A has a theoretical force value of 1870 n3 at 6 bars.
  • Buffer device: Elastic buffer rings/pads at both ends help minimize vibration and impact.
5. Installation and Maintenance

The FESTO cylinder is easy to install and comes with complete installation accessories. Regular checks of the seals and buffer devices are enough to keep it properly maintained.

Technical Parameters:

Festo thin cylinder Air Cylinder
Design Piston Piston Rod
Connection Method G1/8
Operating Pressure 0.12 MPa ... 1 MPa
Piston-rod end Male Thread
Ambient Temperature -20°C ... 80°C
Material Cylinder Barrel Wrought Aluminium Alloy
Weight ---

Applications:

Product Application Occasions and Scenarios for FESTO ADVU-12 Piston Pneumatic Cylinder

The FESTO ADVU-12 Piston Pneumatic Cylinder is a type of compact cylinder that is widely used as a pneumatic actuator in various industrial applications. The cylinder is designed with a piston and piston rod, which work together to provide linear motion in a controlled manner. It is made from high-quality materials and is certified with CE, ensuring that it meets the necessary safety and quality standards.

The ADVU-12 is suitable for use in a wide range of applications, including:

  • Industrial Automation: The ADVU-12 is commonly used in industrial automation systems, where it is used to control the movement of various components such as valves, gates, and mechanical arms. Its compact design and high operating pressure make it ideal for use in confined spaces.
  • Assembly and Material Handling: The ADVU-12 can be used in assembly and material handling systems to provide controlled linear motion for pick-and-place operations, sorting, and packaging. Its high operating pressure and fast response time make it ideal for use in high-speed applications.
  • Machine Tools: The ADVU-12 can be used in machine tools such as lathes, mills, and grinders to provide precise linear motion for cutting, drilling, and shaping operations. Its compact design and high operating pressure make it ideal for use in CNC machines and other automated systems.
  • Medical and Pharmaceutical: The ADVU-12 can be used in medical and pharmaceutical applications where precise and controlled linear motion is required. Its compact design and high operating pressure make it ideal for use in confined spaces, such as in medical devices and laboratory equipment.

The ADVU-12 is designed with a male thread connection method, making it easy to install and use in a wide range of applications. It is made from wrought aluminium alloy, which provides a lightweight and durable construction. The cylinder barrel is designed to withstand high operating pressures, ranging from 0.12 MPa to 1 MPa, making it suitable for use in a wide range of applications.

The ADVU-12 is available for purchase with a minimum order quantity of 1, with pricing available upon negotiation. It comes packaged in a carton or as required by the client and has a delivery time of 1-7 work days after payment. Payment can be made via T/T, Western Union, or PayPal, and the cylinder has a supply ability of 5000 pieces per month.

Packing and Shipping:

Product Packaging:

  • The Piston Pneumatic Cylinder will be securely wrapped in bubble wrap to prevent any damage during shipping.
  • The cylinder will be placed in a sturdy cardboard box with packing material to prevent any movement during transit.
  • The box will be labeled with the product name and any necessary handling instructions.

Shipping:

  • Shipping will be handled by our trusted shipping partner.
  • The shipping cost will be calculated based on the shipping address and the weight of the package.
  • Customers will receive a tracking number via email once the package has been shipped.
  • Delivery times may vary depending on the destination, but we will do our best to ensure timely delivery.
