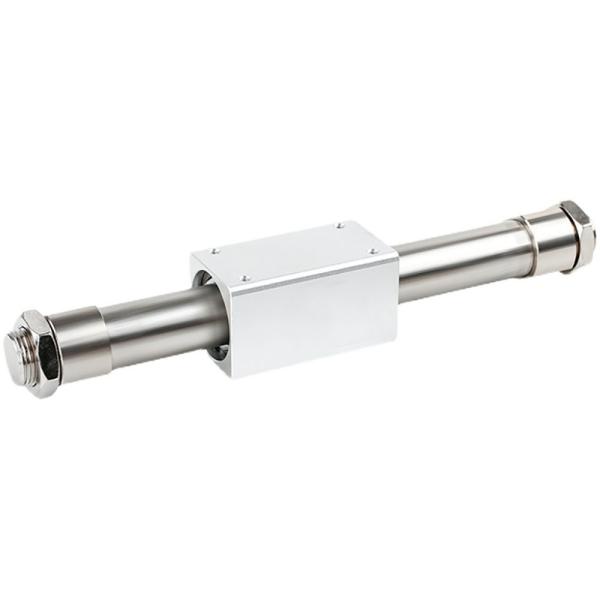

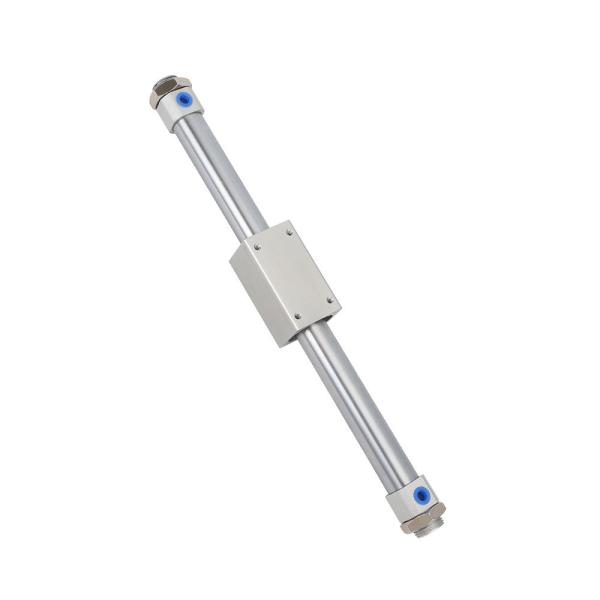

Product Description:

The CY1B rodless cylinder comes in various cylinder diameters that include 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm.

The standard travel range of the CY1B rodless cylinder is from 50mm to 1000mm, with a maximum travel of 6ml for cylinder diameters of 50mm and 63mm.

For operating temperature, the CY1B rodless cylinder can be used within a temperature range of 5-60 ℃.

In terms of piston speed, the CY1B rodless cylinder has a piston speed range of 50~400mm/s 1.

Additionally, the usage pressure range for the CY1B rodless cylinder is between 0.18-0.7MPa.

Features:

Technical Parameters:

Applications:

The CY1B series rodless cylinder is an innovative pneumatic product designed to meet the needs of modern industrial processes. With its small size, the cylinder requires less installation space, making it perfect for applications where space is limited. Furthermore, the cylinder has a unique design that allows for direct installation of loads, thus making installation easy and convenient.

One of the unique features of the CY1B series rodless cylinder is its long stroke. Because there is no piston rod, the cylinder has a longer movable stroke compared to other types of cylinders. This makes it particularly suitable for applications that require long strokes, such as those found in the automation industry.

In addition to its size and stroke length, the CY1B series rodless cylinder has a high holding force. This special structure ensures that the cylinder can hold a large load securely, making it suitable for demanding industrial applications that require high holding force.

The cylinder also has a good buffering effect due to the rubber at both ends. The rubber provides a soft and smooth cushion that relieves buffering, ensuring a smooth and stable operation. With these features, the CY1B series rodless cylinder is an excellent choice for a wide range of industrial applications.

Packing and Shipping:

Product Packaging:

• The piston pneumatic cylinder will be packed securely in a sturdy cardboard box.
• The cylinder will be wrapped in bubble wrap or other protective material to prevent damage during shipping.
• All necessary instructions and documentation will be included in the package.

Shipping:

• The package will be shipped via a reliable courier service, such as FedEx or UPS.
• The shipping cost will depend on the destination and speed of delivery chosen by the customer at checkout.
• The estimated delivery time will also depend on the chosen shipping method and the destination.
• The customer will receive a tracking number once the package has been shipped.
