Industrial Grade Piston Pneumatic Cylinder CY1B10 - 100/200/300/400/500
Industrial Grade Piston Pneumatic Cylinder CY1B10 - 100/200/300/400/500
Industrial Grade Piston Pneumatic Cylinder CY1B10 - 100/200/300/400/500
Industrial Grade Piston Pneumatic Cylinder CY1B10 - 100/200/300/400/500
Industrial Grade Piston Pneumatic Cylinder CY1B10 - 100/200/300/400/500
Industrial Grade Piston Pneumatic Cylinder CY1B10 - 100/200/300/400/500
Industrial Grade Piston Pneumatic Cylinder CY1B10 - 100/200/300/400/500
Industrial Grade Piston Pneumatic Cylinder CY1B10 - 100/200/300/400/500
Specifications
Brand Name :
FESTO
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiation
Packaging Details :
Carton /As The Clients Require
Delivery Time :
1-7Work Days After Payment
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000 pieces/1Month
Model Number :
CY1B10 - 100/200/300/400/500
Ambient and fluid temperature :
–10 To 60°C
Fluid :
Air
Lubrication :
Non-lube
Proof pressure :
1.05 MPa
operating pressure :
0.18-0.7MPA
Piston speed Weight Weight :
50 To 400 Mm/s
Description

Product Description:

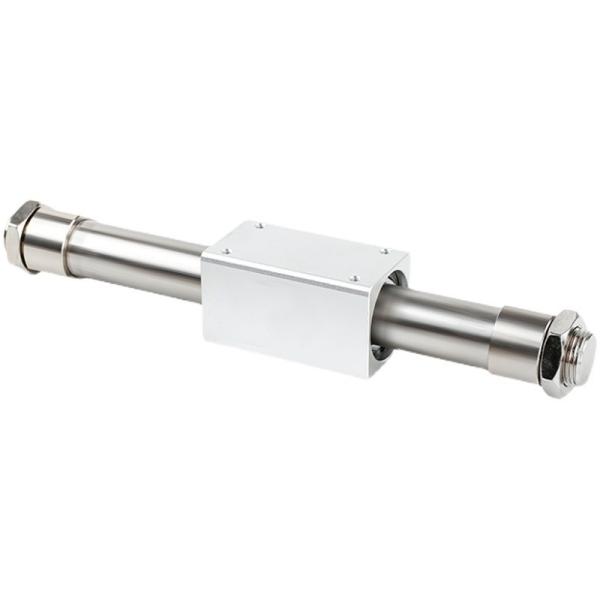

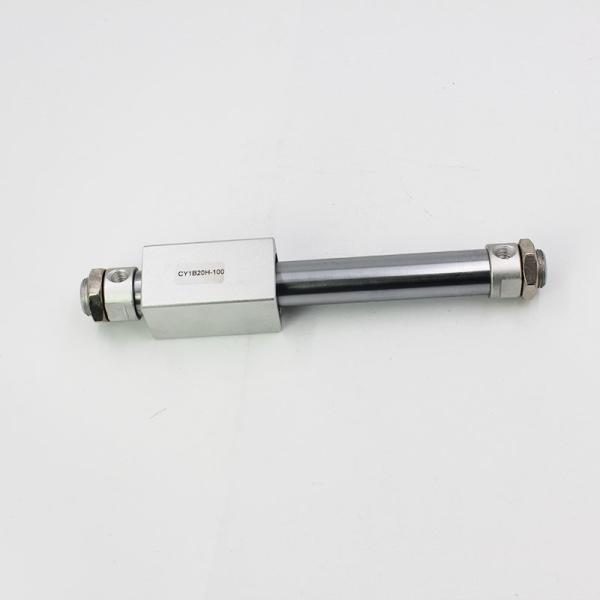

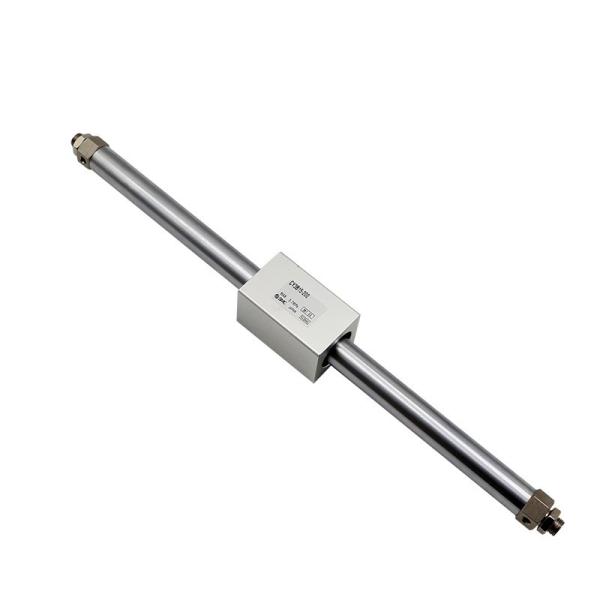

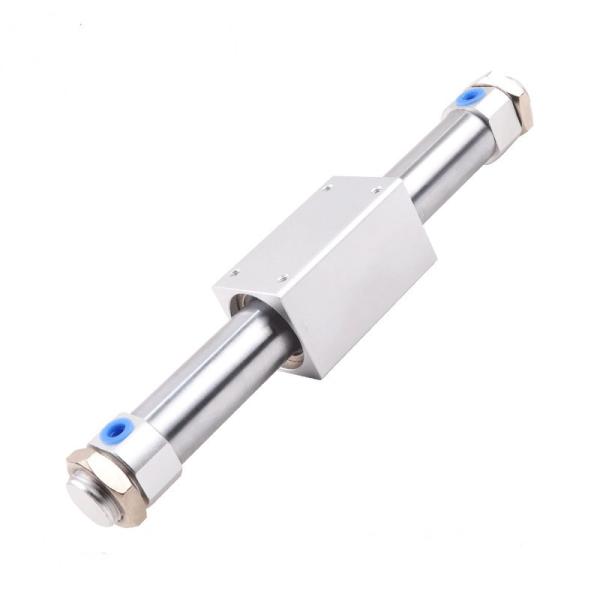

CY1B Rodless Cylinder Specifications

The CY1B rodless cylinder boasts a range of cylinder diameters to suit your needs. The available cylinder diameters are 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm.

The standard travel for the CY1B rodless cylinder is between 50-1000mm. However, if you choose a cylinder diameter of 50mm or 63mm, you can enjoy travel of up to 6ml.

The cylinder is designed to operate within a temperature range of 5-60 ℃, making it suitable for a wide range of applications.

The piston speed for the CY1B rodless cylinder ranges from 50 to 400mm/s, ensuring efficient and smooth operation.

The usage pressure range for the cylinder is 0.18-0.7MPa, which provides a reliable range for your pressure requirements.

Features:

The CY1B rodless cylinder operates with a unique working principle. It involves installing a powerful set of high-strength magnetic rings on the piston to create a magnetic field. These magnetic lines pass through the thin-walled cylinder and interact with another set of magnetic rings outside. The interaction between the two sets of magnets creates strong suction force.

When the air pressure inside the cylinder pushes the piston, the magnetic force drives the magnetic ring sleeve outside the cylinder to move seamlessly in tandem with the piston. The suction force of the magnetic ring has to be adjusted to suit the thrust of the cylinder piston.

Technical Parameters:

Product Attribute Value
Product Name CY1B rodless cylinder
Product Type CY1B magnetic coupling rodless cylinder
Pneumatic Type CY1B rodless cylinder pneumatic magnetic coupling type
Operating Pressure 0.18-0.7 MPa
Proof Pressure 1.05 MPa
Lubrication Non-lube
Piston Speed 50 to 400 mm/s
Ambient and Fluid Temperature -10 to 60°C
Fluid Air

Applications:

Looking for a compact cylinder that can save on installation space, while still allowing for a direct load installation? Try the CY1B series rodless cylinder, which boasts a small size and easy installation.

One of the standout advantages of rodless cylinders is their ability to offer a longer stroke, thanks to the absence of a piston rod. This makes them an excellent choice in application scenarios where a long stroke is required.

Need a cylinder with a powerful holding force? The special structure of rodless cylinders provides just that, with a large holding force that can tackle even the toughest tasks.

Finally, the CY1B is also characterized by its excellent buffering effect. Both ends of the cylinder are equipped with rubber, providing a smooth and manageable control method.

Packing and Shipping:

Product Packaging:

  • The piston pneumatic cylinder will be securely packed in a cardboard box.
  • The box will be filled with packing material to prevent any damage during shipping.
  • A user manual will be included in the box.

Shipping:

  • The product will be shipped via standard ground shipping.
  • Shipping times may vary depending on the destination.
  • A tracking number will be provided once the product has shipped.
  • Shipping costs will be calculated at checkout.
