JA160-30-200 SMC Tapped Flange Floating Joints For Hydraulic Cylinders JA Series
JA160-30-200 SMC Tapped Flange Floating Joints For Hydraulic Cylinders JA Series
JA160-30-200 SMC Tapped Flange Floating Joints For Hydraulic Cylinders JA Series
JA160-30-200 SMC Tapped Flange Floating Joints For Hydraulic Cylinders JA Series
JA160-30-200 SMC Tapped Flange Floating Joints For Hydraulic Cylinders JA Series
JA160-30-200 SMC Tapped Flange Floating Joints For Hydraulic Cylinders JA Series
Specifications
Brand Name :
SMC
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiation
Packaging Details :
Carton /As The Clients Require
Delivery Time :
1-7Work Days After Payment
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000 pieces/1Month
Model Number :
JA160-30-200
type :
Fittings
Color :
Black
Connection Type Cylinder Side :
Tapped
Series :
JA Series
Connection :
Flange
Cylinder Used :
Air Cylinder / Hydraulic Cylinders
Description

Product Description:

Design Features:

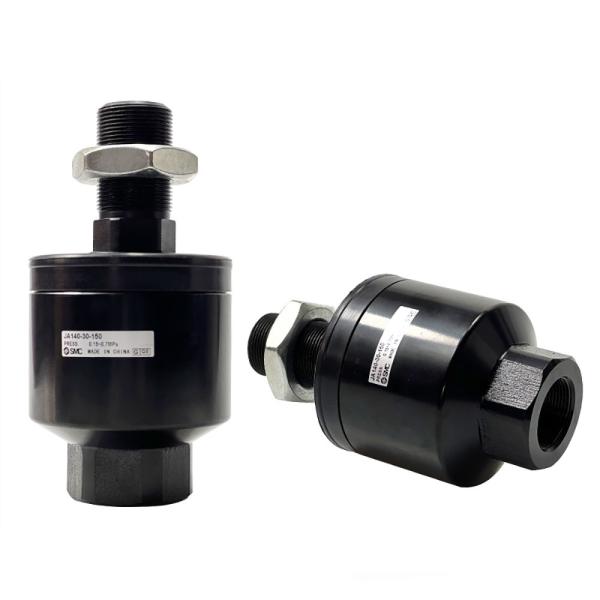

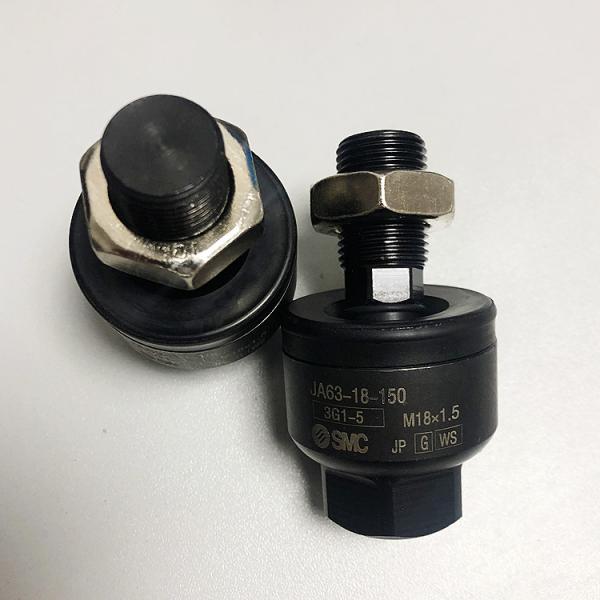

The floating joint design is capable of absorbing eccentricity between the passive body and cylinder, as well as insufficient accuracy of parallelism without the need for axis alignment. This design simplifies installation process.

In addition, this design is built to handle high temperature environments ranging from -5 ℃ to 60 ℃, making it perfect for extreme temperature applications. Lastly, the floating joint can handle high loads up to 28000 N of maximum applied tensile force on both its compression and tension sides, demonstrating excellent load bearing capacity.

Technical specifications:

Installation form: Basic type, providing a stable connection through method 2.

It is suitable for use with cylinders that have a diameter of 100mm.

The standard thread specification of M26X1.5 makes it easy to connect with cylinders and other pneumatic components.

Allowing a certain eccentricity of 0.5mm, the swing angle can reach up to ± 5 °, providing greater flexibility and adaptability.

It is capable of operating within a pressure range of 0.05-1 MPa, making it suitable for multiple applications that operate under various pressure levels. Lastly, it is built to withstand a wide range of environmental and fluid temperature conditions, from -5~60 ℃.

Technical Parameters:

Connection Flange
Color Black
Connection Type Cylinder Side Tapped
Type Fittings
Series JA Series
Cylinder Used Air Cylinder / Hydraulic Cylinders
Applicable Cylinder Thread Size SMC JA Series Floating Joints
Connection SMC floating joint
JA6-3-050 JA80-20-150
JA10-4-070 JA80-20-250
JA15-5-080 JA80-22-150
JA15-6-100 JA100-24-300
JA20-8-100 JA100-26-150
JA20-8-125 JA100-27-150
JA20-8-150 JA100-27-200
JA25-10-150 JA125-27-200
JA30-10-125 JA140-30-150
JA32-10-100 JA160-30-200
JA40-12-125 JA160-33- 200
JA40-12-150 JA160-36-150
JA40-12-175 JA160-36-200
JA40-14-125 JA180-40-150
JA40-14-150 JA180-40-200
JA63-16-150 JA180-42-150
JA63-16-200 JA180-42-200
JA63-18-150

Applications:

Pneumatic and hydraulic systems require efficient connection solutions for cylinders and hydraulic cylinders. In situations where eccentricity and parallelism need to be absorbed, a floating joint is suitable.

Automated machinery relies on stable operation to function properly. For this reason, a floating joint is commonly used to ensure a stable connection between cylinders and driven bodies.

The handling system benefits greatly from a stable connection between cylinders, as this improves handling efficiency. A floating joint is an ideal solution for ensuring stable operation of cylinders in the handling system.

SMC's JA series floating joints are an excellent choice for connecting pneumatic systems due to their efficient design and performance. This product is widely used in the field of industrial automation as it offers a flexible and reliable connection solution.

Users of SMC's JA series floating joint have given it high praise for its ability to absorb eccentricity and insufficient parallelism. The product also has a high temperature tolerance and can respond well under high load, making it a reliable choice for pneumatic connection needs.

In conclusion, SMC's JA series floating joints are an efficient and reliable solution for connecting pneumatic and hydraulic systems. They offer an excellent design and performance that satisfies the needs of industrial automation.
