High Performance Chip Array Resistor 1m Ohm Resistor 0402 / 0603 For Print PCB
High Performance Chip Array Resistor 1m Ohm Resistor 0402 / 0603 For Print PCB
High Performance Chip Array Resistor 1m Ohm Resistor 0402 / 0603 For Print PCB
High Performance Chip Array Resistor 1m Ohm Resistor 0402 / 0603 For Print PCB
Specifications
Brand Name :
WS
Model Number :
WS-TFA-Res
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic reel + carton
Product name :
Chip Array Resistor
Material :
Thick Film
Size :
0402-0603
Resistance :
10R~1MR
Resistance Tolerance :
+/-5%; +/-1%
Precision :
High Precision
Shipping :
By DHL, FEDEX, TNT ,UPS,EMS ect.
Description

High Performance 0402 0603 8P4R / 4P2R SMD / Chip Array Resistor​


We can make un-common product per customers requirements.

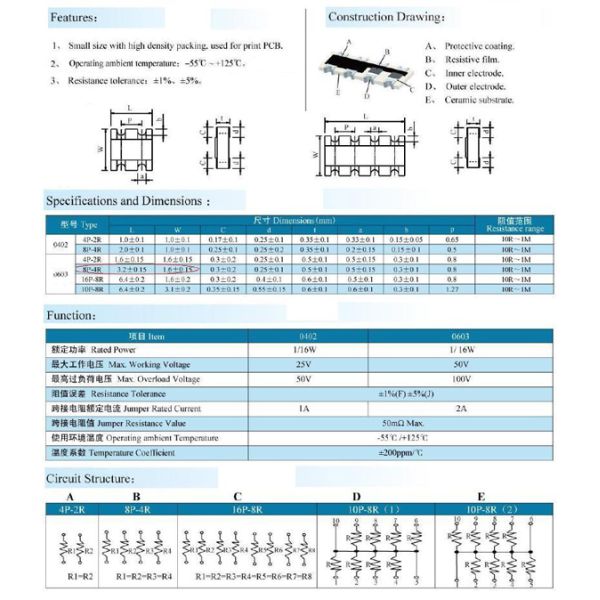

Features:

Small size with high density packing. Used for print PCB.
Operating ambient temperature: -55`C to +125`C
Resistance tolerance: ± 1%. ± 5%
Size: 0402,0603
0402: 4P-2R, 8P-4R
0603: 4P-2R, 8P-4R, 10P-8R, 16P-8R

Tolerance: ± 1%. ± 5%
Range: 10R-1M

Test Item Test Condition Performance

Temperature coefficient ±200ppm/

Short time overload R≤±(2%R0+0.1R)

Resistance to soldering heat R≤±(1% R0+0.05R)

Solerability The soldering area is over 95%

Temperature cycling R≤±(0.5% R0+0.05R)

Load life in humidity R≤±(3% R0+0.1R)

Load life in heat R≤±(3% R0+0.1R)

Bending strength R≤±(1% R0+0.05R)

Description Size Tolerance Range

RCM

Chip Array Resistors

0402:4P-2R 8P-4R

0603: 4P-2R 8P-4R 10P-8R 16P-8R

 ±5% ±1% 10R-1M

GRA

Array Resistors

 1/8W: 4P-14P ±5% ±2% ±1% 10R-1M


Performance Test:

Test Item Test Condition Performance
Temperature coefficient Test the resistance value at normal temperature and normal temperature added 100℃,calculate per℃ resistance value change rate . ±100ppm/℃
Short time overload 2.5 × rated voltage or Max.overload voltage (get the lower) for 5 seconds. ΔR≤±(0.5%R0+0.05Ω)
Pulse overload At 4 × rated voltage or Max. pulse overload voltage (get the lower) cycle 10000±200 times(1 second on, 25 seconds off ). ΔR≤±(1%R0+0.05Ω)
Resistance to soldering heat Immerge into 350±10℃ tin stove for 2~3 seconds. ΔR≤±(0.5%R0+0.05Ω)
Solderability Immerge into 245±3℃ tin stove for 2~3 seconds. The area of soldering is over 95%
Temperature cycling At -55℃ for 30 min, then at +25℃ for 10~15 min, then at +125℃ for 30 min, then at +25℃ for 10~15 min, total 5 cycles. ΔR≤±(0.5%R0+0.05Ω)
Load life in humidity Overload rated voltage or Max.working voltage (get the lower) for 1000 hours (1.5 hours on and half-hour off ) at the 40±2℃ and 90~95% relative humidity. ΔR≤±(2%R0+0.05Ω)
Load life in heat Overload rated voltage or Max.working voltage (get the lower ) for 1000 hours (1.5 hours on and hal
