General Size 1206 SMD Resistor , Simple Structure Chip Fixed Resistor For Medical
General Size 1206 SMD Resistor , Simple Structure Chip Fixed Resistor For Medical
General Size 1206 SMD Resistor , Simple Structure Chip Fixed Resistor For Medical
General Size 1206 SMD Resistor , Simple Structure Chip Fixed Resistor For Medical
Specifications
Brand Name :
WS
Model Number :
WS-TFC-Res1206
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
5000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic reel + carton
Color :
Gray
Reliability :
High
Size :
1206
Resistance :
0.1 ~100M Ω
Resistance Tolerance :
5%; 1%
Package :
SMD
Delivery :
Fast
Description

1206 / 3216, 1/4W General size High Stability Thick Film SMD Chip Fixed Resistor


We can make un-common product per customers requirements.


Features:

* Size: 1206 / 3216
* Resistance Range: 0.1 ~100M ohm
* Resistance Tolerance: ±5%; ±1%
* General size, Simple structure, Low TCR - for reflow
* Temperature Coefficient ± 100, ± 200
* Operating Temperature -55 degree~125 degree
* Packing: 5000PCS/reel, tape and reel
* Miniature and Light weight
* Suit for reflow and wave flowsolder
* Stable electrical capability. High reliability.
* Low assembly cost, suit for automatic SMT equipment
* Superior mechanical and frequency characteristics
* RoHS compliant


Applications:
Widely and largely used in the Electronic, Electronical and Information Industries.
Telecommunication equipments. Radio and Tape recorders
TV tuners, Video cameras, Watches
Pocket calculators, Automotive Industry (Indicator)
Computers, Instruments
Medical and Military
Equipments etc...

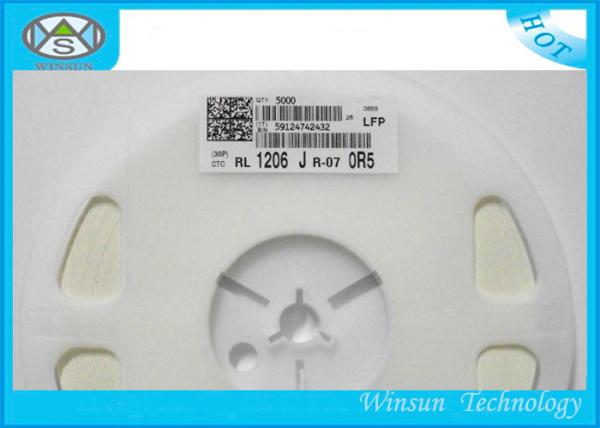

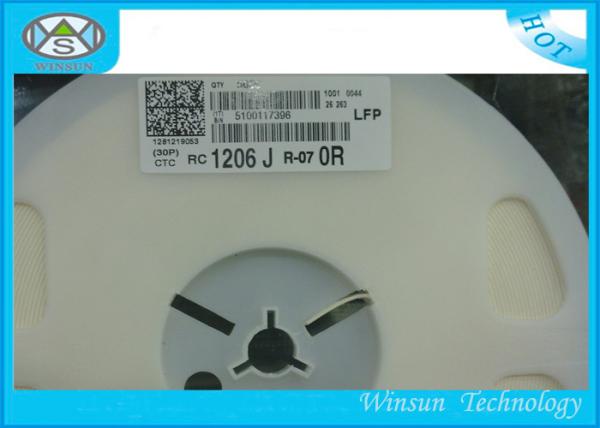

Packing:

TYPE TAPING QTY/REEL A±0.5 B±0.5 C±0.5 D±1 M±2 W±1
0201 PAPER 10,000PCS 2.0 13.0 21.0 60.0 178 10
0402 PAPER 10,000PCS 2.0 13.0 21.0 60.0 178 10
0603 PAPER 5,000PCS 2.0 13.0 21.0 60.0 178 10
0805 PAPER 5,000PCS 2.0 13.0 21.0 60.0 178 10
1206 PAPER 5,000PCS 2.0 13.0 21.0 60.0 178 10
1210 PAPER 5,000PCS 2.0 13.0 21.0 60.0 178 10
2010 PAPER OR EMBOSSED 4,000PCS 2.0 13.0 21.0 60.0 178 13.8
2512 EMBOSSED 4,000PCS 2.0 13.0 21.0 60.0 178 13.8



Performance Test:

Test Item Test Condition Performance
Temperature coefficient Test the resistance value at normal temperature and normal temperature added 100℃,calculate per℃ resistance value change rate . ±100ppm/℃
Short time overload 2.5 × rated voltage or Max.overload voltage (get the lower) for 5 seconds. ΔR≤±(0.5%R0+0.05Ω)
Pulse overload At 4 × rated voltage or Max. pulse overload voltage (get the lower) cycle 10000±200 times(1 second on, 25 seconds off ). ΔR≤±(1%R0+0.05Ω)
Resistance to soldering heat Immerge into 350±10℃ tin stove for 2~3 seconds. ΔR≤±(0.5%R0+0.05Ω)
Solderability Immerge into 245±3℃ tin stove for 2~3 seconds. The area of soldering is over 95%
Temperature cycling At -55℃ for 30 min, then at +25℃ for 10~15 min, then at +125℃ for 30 min, then at +25℃ for 10~15 min, total 5 cycles. ΔR≤±(0.5%R0+0.05Ω)
Load life in humidity Overload rated voltage or Max.working voltage (get the lower) for 1000 hours (1.5 hours on and half-hour off ) at the 40±2℃ and 90~95% relative humidity. ΔR≤±(2%R0+0.05Ω)
Load life in heat Overload rated voltage or Max.working voltage (get the lower ) for 1000 hours (1.5 hours on and hal


STORAGE:
THE PRODUCTS SHOULD BE PLACED IN THE DRY AND VENTILATION WITH
15~35℃ AND LOWER THAN 25~75%RH,AND PREVENT IT FROM PRESSING AND HUMIDITY.
THE GUARANTEED PERIOD OF PRODUCT PERFORMANCE IS WITHIN ONE YEAR FROM
SHIPMENT BY THE COMPANY, PROVIDED THAT THE ABOVE-MENTIONED STORAGE
CONDITIONS HAVE BEEN SATISFIED.
