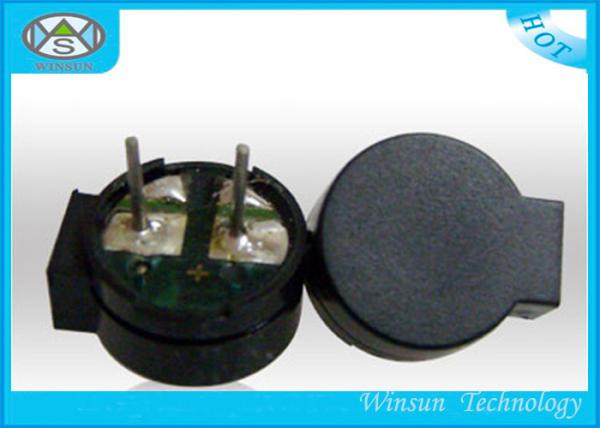

5v Piezo Buzzer D12 x H6.0mm , Sound From Side Magnetic Simple Electronic Buzzer
5v Piezo Buzzer D12 x H6.0mm , Sound From Side Magnetic Simple Electronic Buzzer
5v Piezo Buzzer D12 x H6.0mm , Sound From Side Magnetic Simple Electronic Buzzer
5v Piezo Buzzer D12 x H6.0mm , Sound From Side Magnetic Simple Electronic Buzzer
Specifications
Brand Name :
WS
Model Number :
WS-1206
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
Bublle carton
Other Name :
Magnetic Buzzer
Rated voltage :
3v 5v 12v
Sound Output :
80dB
weight :
1.5g
size :
D12XH6.0mm
Frenquency :
2731Mhz
Rated Current :
80mA
Description

3V 5V 12V Sound from side Electromagnetic Buzzer D12xH6.0mm external Drive Without Circuit

We also can make customizd products

Features:
* Operating Voltage: 1~6V
* Max Rated Current: 80mA
* Sound Output : 85dB

* Small Size
* Highly efficient
* Shot lead time & Low Price.

Applications:
* Children's toys
* Alarm Medical equipments
* Telecommunication
* Security
* Household appliances
* Audio and Video Products



Typical Specificatons:

Type Unit 1206CRA01B 1206CRA03B 1206CRA05B
Rated Voltage V 3 5 12
Operating Voltage V 1-5 3-7 7-15
Rated Current(max) mA 80 60 60
Sound Output at 10cm dB 85 85 85
Rated Frequency Hz 2731
Coil Resistance Ω 5.5±1 25±1 40±4
Operating Temperature °c -20~+70
Storage Temperature °c -30~+80
Housing material NORYL

Reliability Test:

After any following tests the part shall meet specifications without any degradation in

appearance and performance except SPL. SPL shall not deviate more than -10 dB

from the initial value

1. Ordinary Temperature Life Test

The part shall be subjected to 96 hours at 25±10℃. Input rated voltage

Resonant frequency, 1/2 duty Square wave.

2. High Temperature Test

The part shall be capable of with standing a storage temperature of +85℃ for 96 hours.

3. Low Temperature Test

The part shall be capable of with standing a storage temperature of ­-40℃ for 96 hours.

4. Humidity Test

Temperature:+40℃±3℃ Relative Humidity:90%～95% Duration: 48 hours

and expose to room temperature for 6 hours

5. Temperature Shock Test

Temperature:70℃ /1hour→ 25℃/3hours→-30℃/1hour→ 25℃/3hours (1cycle)

Total cycle: 10 cycles

6. Drop Test

Standard Packaging From 1.2m(Drop on hard wood or board of 5cm thick,

three sides, six plain.)

7. Vibration Test

Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes

Note:

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.
