Combined Type Ultra High Capacity Capacitors , 0.47F - 30F High Power Capacitors
Combined Type Ultra High Capacity Capacitors , 0.47F - 30F High Power Capacitors
Combined Type Ultra High Capacity Capacitors , 0.47F - 30F High Power Capacitors
Combined Type Ultra High Capacity Capacitors , 0.47F - 30F High Power Capacitors
Specifications
Brand Name :
WS
Model Number :
WS-SE/SP-5R5
Certification :
CE
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/day
Packaging Details :
plastic+carton box
Mounting type :
Wire lead
Capacitance :
0.47F to 30F
Type :
Combined
Color :
Blue or black
Structure :
Model series
Rated Voltage :
5.4V / 5.5V
Description

5.4V / 5.5V Combined type Ultra capacitor / Farad Super Capacitor high power from 0.47F to 30F


Application:
Working current greater than 100mA, working hours microseconds to a few minutes;
Can be used for gas meter, water meter, heat meter power shut valve, meter reading system
etc.


Features:
Rated Voltage: 5.4v / 5.5v
Capacitance: 0.47F to 30F
Low internal resistanc
long life:up to 1000,000 cyles
Internal tandem structure , low internal resistance; Comply with ROHS standards, no Cd, Pb and other pollutants;
Long charge-discharge cycle life; Ultra-low leakage current, suitable for use with battery;
Whole sealing products suitable for use in damp environmen;


Specification

Product SpecificationsRated Voltage VRated Capacitance FCapacitance Tolerance %ESR(AC,max,1kHz) mΩLeakage C
urrent(30min)
uA		L×W×H
±1.0
mm		Dimension errors mmΦd
±0.1
mm		L1
±1
mm		F
±0.5
mm
WS-5R5L473FA5.50.040-+80%90010011×6×13±10.5277
WS-5R5L104FA5.50.1±20%100010011×6×13±10.5277
WS-5R5L224FA5.50.220-+40%80010013×7×14±10.5279
WS-5R5L334FA5.50.330-+40%80015017×9×15±10.62912
WS-5R5L474FA5.50.470-+40%60015017×9×15±10.62912
WS-5R5L105FA5.51.0±20%28030017×9×21±10.62912
WS-5R5L105FB5.51.0±20%28030021×10×21±10.62915
WS-5R5L155FA5.51.5±20%20050017×9×21±10.62912
WS-5R5L205FA5.52.00-+40%14080026×13×22±10.62718
WS-5R5L255FA5.52.5±20%14080021×10×21±10.62915
WS-5R5L305FA5.53.0±20%14080021×10×21±10.62915
WS-5R5L405FA5.54.0±20%100120026×13×22±10.62718
WS-5R5L505FA5.55.0±20%100150026×13×27±10.62918
WS-5R5L106FA5.510.0±20%50300033×17×28±20.82924
WS-5R5L156FA5.515.0±20%50350033×17×35±20.82924
WS-7R5L104FA7.50.10-+80%120010019.5×7×14±10.52710
WS-7R5L334FA7.50.330-+80%60015025×9×15±10.62913.5
WS-7R5L105FA7.51.0±20%30050025×9×21±10.62913.5
WS-7R5L155FA7.51.50-+40%21080039×13×22±10.62721
WS-R5L155FB7.51.50-+40%21080031×10×21±10.62916
WS-R5L205FA7.52.0±20%21080031×10×21±10.62716
WS-7R5L255FA7.52.5±20%150120039×13×22±10.62721
WS-5R5L405FO5.54.0±20%90150017×9×34±10.62912
WS-5R5L405FQ5.54.0±20%110150021×10×21±10.62915
WS-5R5L505FO5.55.0±20%130170021×10×26±10.62915



Product SpecificationsRated Voltage VRated Capacitance FCapacitance Tolerance %ESR(AC,max,1kHz) mΩLeakage C
urrent(30min)
uA		L×W×H
mm		Dimension errors mmΦd± 0.1
mm		L1
±1.0
mm		F± 0.5
mm
WS-5R5L474FG5.50.470-+80%18020021×10×21±10.6295.3
WS-5R5L474FH5.50.470-+40%60015017×9×15±10.6295
WS-5R5L474FJ5.50.470-+80%40015017×9×15±10.6295
WS-5R5L105FD5.51.0±20%28030017×9×21±10.6295
WS-5R5L155FC5.51.5±20%20050017×9×21±10.6295
WS-5R5L205FB5.52.00-+40%14080026×13×22±10.6277.5
WS-5R5L505FP5.55.0±20%130170021×10×26±10.6295.3

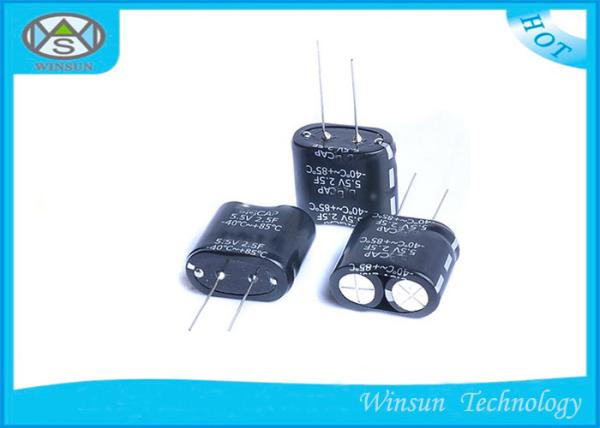

Shape of standard product:
Combined Type Ultra High Capacity Capacitors , 0.47F - 30F High Power Capacitors

Wire lead at mid
