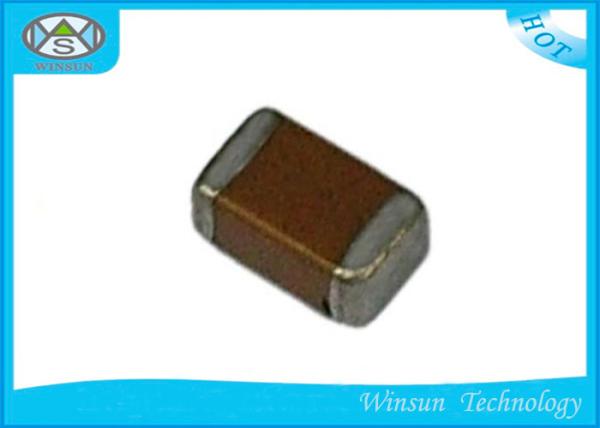

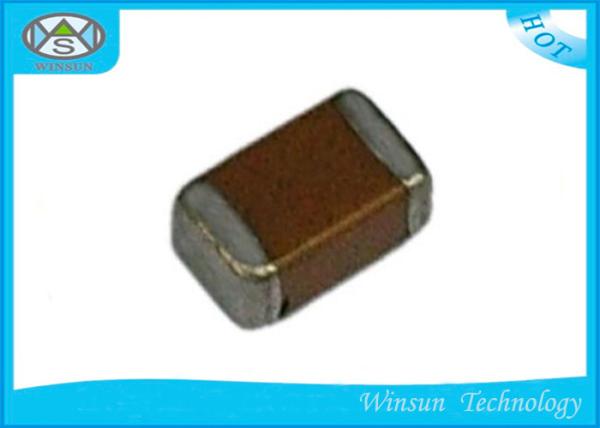

High Reliability Ceramic Capacitor 0.5pF - 10uF Gray 1206 / 3216 Soldering Resistance
High Reliability Ceramic Capacitor 0.5pF - 10uF Gray 1206 / 3216 Soldering Resistance
High Reliability Ceramic Capacitor 0.5pF - 10uF Gray 1206 / 3216 Soldering Resistance
High Reliability Ceramic Capacitor 0.5pF - 10uF Gray 1206 / 3216 Soldering Resistance
Specifications
Brand Name :
WS
Model Number :
WS-1206-Chip Cap
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
4000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic reel + carton
Color :
Yellow , Gray
Capacitance range :
0.5pF - 10uF
Rated Voltage :
6.3v - 1000v
Size :
1206 / 3216
Lead time :
3 - 5 days
Compliant :
ROHS
Shipping :
By DHL, FEDEX, TNT ,UPS,EMS ect.
Description

High Reliability 1206 / 3216 MLCC Chip / SMD Multilayer Ceramic Capacitor

Capacitor Selection:
The choice of dielectric is largely determined by the temperature stability required:

1. NPO(COG)
Ultra stable Class I dielectric, with predictable change of electrical properties on temperature, voltage, frequency and time. Used in circuits requiring stable performance.

2. X7R
Stable Class II dielectric, with predictable change of properties with temperature, voltage, frequency and time. Used as blocking, coupling, by-passing and frequency discriminating elements. This dielectric is ferroelectric and offers higher capacitance ranges than class I.

3. Y5V(Z5U)
General purpose Class II dielectric with highest dielectric constant and greater variation of properties with temperature and test conditions. Very high capacitance per unit volume and suited for application as well as filtering, transient suppression blocking, and charge storage application.

Features:

* Size :1206 / 3216
* Capacitance Range: 0.5PF~10uF
* Voltage range: 6.3V ~1000V

* Capcitance Tolerance: +/-5%; +/-10% ; +/-20% ; +80/-20%

* RoHS Compliant, Lead free

* It has multi-layer nonolithic structure, has high reliability.

* It has good solderability and soldering resistance, suitable for flow soldering/reflow soldering.

Applications:

* It is for General purpose etc...

Size 1206 / 3216
Capacitance Range 0.5PF~10uF
Voltage range 6.3V ~1000V

Dimension Size:

Type Dimensions(mm)
British expression Metric expression L W T WB
0201 0603 0.6±0.03 0.3±0.03 0.3±0.03 0.15±0.10
0402 1005 1.00±0.05 0.50±0.05 0.50±0.05 0.25±0.10
0603 1608 1.60±0.10 0.80±0.10 0.80±0.10 0.30±0.10
0805 2012 ≤0.55
2.00±0.20 1.25±0.20 0.80±0.20 1.00±0.20 0.50±0.20
1.25±0.20
1206 3216 0.80±0.20
3.20±0.30 1.60±0.30 1.00±0.20 1.25±0.20 0.60±0.30
1.60±0.30
1210 3225 3.20±0.30 2.50±0.30 ≤2.80 0.60±0.30
1808 4520 4.50±0.40 2.00±0.20 ≤2.20 0.60±0.30
1812 4532 4.50±0.40 3.20±0.30 ≤3.50 0.60±0.30
2220 5750 5.70±0.40 5.00±0.40 ≤3.50 0.60±0.30
2225 5763 5.70±0.50 6.30±0.50 ≤6.20 0.60±0.30
3012 7632 7.60±0.50 3.20±0.30 ≤8.10 0.60±0.30
3035 7690 7.60±0.50 9.00±0.50 ≤8.10 0.60±0.30
Note:We can design according to customer special requirements

Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect



High Reliability Ceramic Capacitor 0.5pF - 10uF Gray 1206 / 3216 Soldering Resistance
