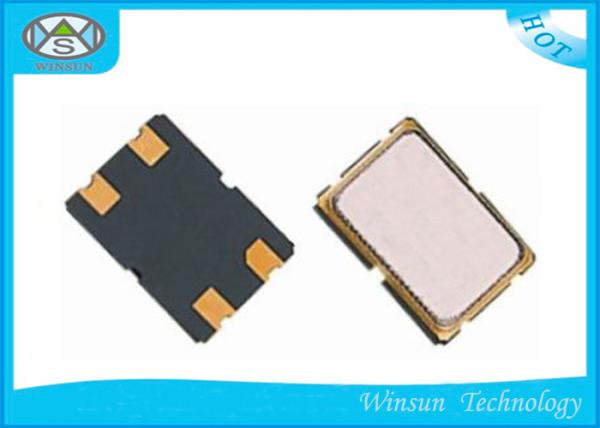

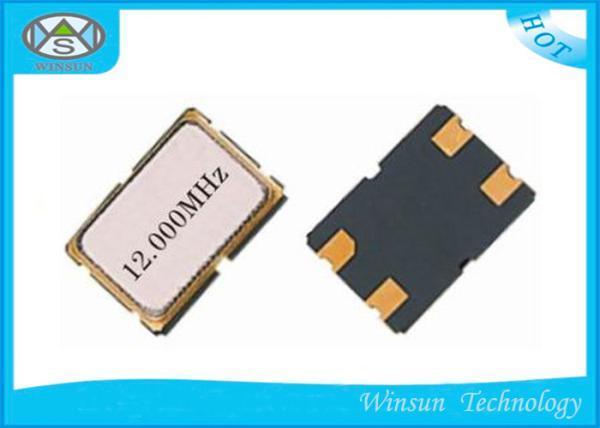

SMD 3225 Ceramic Resonator 3.2 X 2.5mm, High Steady Small Size 4 Pin Resonator
SMD 3225 Ceramic Resonator 3.2 X 2.5mm, High Steady Small Size 4 Pin Resonator
SMD 3225 Ceramic Resonator 3.2 X 2.5mm, High Steady Small Size 4 Pin Resonator
SMD 3225 Ceramic Resonator 3.2 X 2.5mm, High Steady Small Size 4 Pin Resonator
Specifications
Brand Name :
WS
Model Number :
WS-3225
Certification :
SGS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/day
Packaging Details :
plastic bag+carton box
Other Name :
Xtal Resonator
Frequency :
25Mhz
Temperature :
-40~+85C
Aging :
±5PPM max
rive Lavel :
0.01uW~100uW
Load Capacitance :
8PF~33PF
Description

25.000 Mhz SMD 3225 Quartz Crystal resonator High Stability Wide temperature

Advantage:
High Quality Produce with SGS ,ROHS(JDS OR OEM ) ;
High production capacity;
Professional Electronics Components supplier and over 17 experience TECH
Advanced production line and test equipment from USA,JP,etc
Own 200 experienced technical specialists
Urgent component sourcing
Flexible payment terms and professional exporter
Cost down solutions & Long-term supply
One-stop purchase solutions for electronic components
Door to door service is available
Quality Service,immediately feedback



Technical Support :
Drive Level Dependence
Temperature-Frequency Characteristics of AT-Type Slice
Spurious Response
Notes on Operation of Quartz Crystal Resonator
Oscillation Circuit
Notes for Ordering
Equivalent Circuit of Crystal Oscillation Circuit
Load Capacitance
Equivalent Circuit

Frequency-Temperature Characteristics

Feature:

High precise and steady;
No Lead match with Green environmental protection;
Reflow soldering(Oven) and Taping PKG;

4pin Resonator, small size.
Surface Mounted Technology (SMT)
Lead-free production and RoHS compliance

Applications:

Digital products

Communication equipments

Automobile

Instrument ect.

Typical Specificatons:

Parameter Characteristic
Package SMD 3.2 x 2.50 x0.65mm
Frequency Range 12.000~50.000 MHZ
Frequency Tolerance ±10PPM,±20PPM,±30PPM
Frequency Temperature Stability ±10PPM,±20PPM,±30PPM,±50PPM
Operating Temperature 0~+70C,-10~+60C,-20~+70C,-40~+85C
Storage Temperature .-40~+85C
Load Capacitance 8PF~33PF
Shunt Capacitance 3PF max
Drive Lavel 0.01uW~100uW
Aging ±5PPM max
Resistance Series Resonance 10~20MHZ 150ohm max;20~30MHZ 80ohm max
30~40MHZ 100ohm max;40~50MHZ 80ohm max

SMD 3225 Ceramic Resonator 3.2 X 2.5mm, High Steady Small Size 4 Pin Resonator

Contact Details:
Contact: Angel Sun
Tel: +86-13528847020
Email: Admin@winsunhk.cn
Skype: Angelsun618
Whatsapp: 13528847020
Wechat: 13528847020
QQ: 553695308
