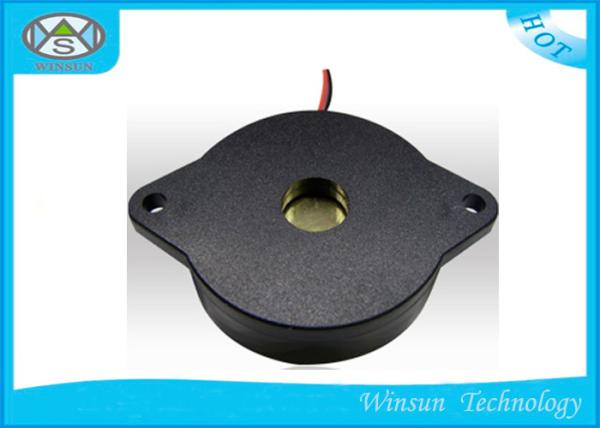

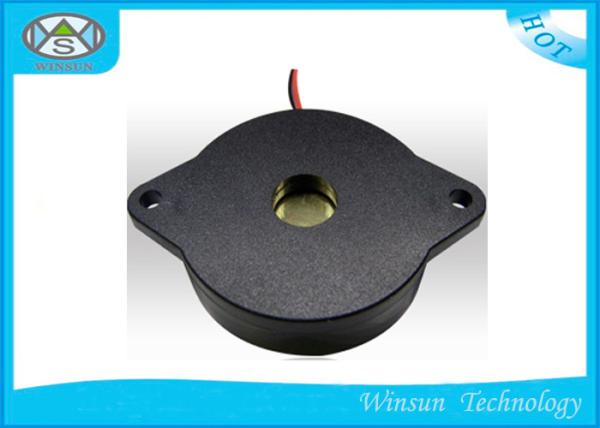

Big Size Micro Piezo Buzzer Waterproof Loud Sound With ABS Housing Material
Big Size Micro Piezo Buzzer Waterproof Loud Sound With ABS Housing Material
Big Size Micro Piezo Buzzer Waterproof Loud Sound With ABS Housing Material
Big Size Micro Piezo Buzzer Waterproof Loud Sound With ABS Housing Material
Specifications
Brand Name :
WS
Model Number :
WS-3055CYW
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
Bubble + carton
Size :
D44XH14MM
Sound Output :
85dB
Rated voltage :
12V
Frenquency :
1000 ± 300Hz
operating Voltage :
1-30V
weight :
10g
Rated current :
3mA
Description

12V Lead Wire Piezoelectric / Piezo Buzzer D44xH14mm external Drive Without Circuit​

We also can make Customized products


Typical Specificaton

Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45%～85%R.H., Atmospheric pressure: 860 ～1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure.

Type Unit 4414CY1012W
Rated Voltage(square wave) Vp-p 12
Operating Voltage Vp-p 1~30
Rated Current(max) mA 3
Min Sound Output at 1kHz/10cm dB 85
Rated Frequency Hz 1000±300
Capacitance at 120Hz pF 77000±30%
Coil resistance ohm 20±5
Lead Wire/Pin Material UL1095 AWG28
Operating Temperature ℃ -20~+60
Storage Temperature ℃ -30~+70
Housing Material ABS
weight g 10

Features:
* Big Size
* High efficient
* Short lead time & Low Price.
* Rated Voltage: 12V
* Max Rated Current: 3mA
* Sound Output at 30cmt: 85dB


Applications:
* Children's toys
* Alarm Medical equipments
* Telecommunication
* Security
* Household appliances

* Audio and Video Products
* Etc.......

Big Size Micro Piezo Buzzer Waterproof Loud Sound With ABS Housing Material

Payment and Shipping:

1, Lead time about 3~5 days.

2, Payment: T/T; Western union; Paypal .

3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect


Big Size Micro Piezo Buzzer Waterproof Loud Sound With ABS Housing Material
