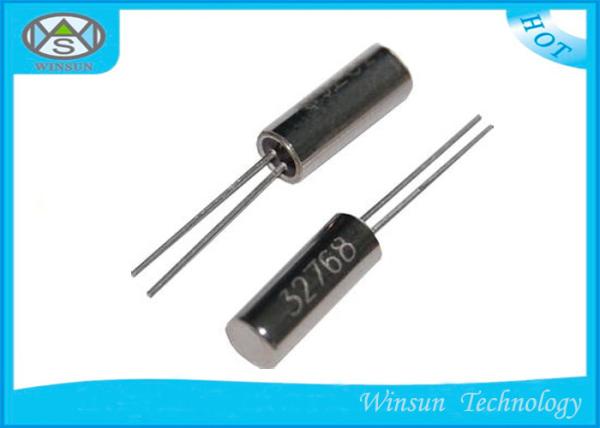

Column Quartz Resonator 32.768 Khz D3 X H8mm With High Shock Tolerance
Column Quartz Resonator 32.768 Khz D3 X H8mm With High Shock Tolerance
Column Quartz Resonator 32.768 Khz D3 X H8mm With High Shock Tolerance
Column Quartz Resonator 32.768 Khz D3 X H8mm With High Shock Tolerance
Specifications
Brand Name :
WS
Model Number :
WS-0308
Certification :
SGS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/day
Packaging Details :
plastic bag+carton box
Size :
D3XH8mm
Frequency :
32.768 Khz
Package :
DIP
Temperature :
-40-85°c
Shipment :
By air
Aging :
± 5ppm / year Max
Description

32.768 Khz D3XH8mm Column Quartz Crystal resonator High Stability Wide temperature

Feature:

1. Wide Frequency range

2. High shock tolerance

3. Small size

4. Reliable frequency stability

Applications:

Digital products

Communication equipments

Automobile

Instrument ect.

ELECTRICAL Specificatons:

Frequency

32.768KHz

Frequency Tolerance (at 25°C)

±20ppm or specify

ESR

32KHz-40KHz: 40Kohm Max

40KHz-60KHz: 30Kohm Max

60KHz-70KHz: 25Kohm Max

70KHz-200KHz: 22Kohm Max

200KHz-3500KHz: 20Kohm Max

Turnover Temperature

25 ± 5°C

Frequency Temperature Curve

-0.034(±0.006)ppm/°C²

Storage Temperature Range

-55 °C to +125 °C

Operable Temperature Range

-20+70’C or specify

Shunt Capacitance (C0)

2.0pF Typ

Dynamic Capacitance (C1)

4.0pF Typ

Driver Level (Typical)

1 µW Max

Load Capacitance(CL)

12.5pF or specify

Aging @25°C 1st year (Max)

±3ppm/year

REMARK: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM

WITH OUR SALES ENGINEER.

Frequency VS Temperature Curve

Column Quartz Resonator 32.768 Khz D3 X H8mm With High Shock Tolerance

Column Quartz Resonator 32.768 Khz D3 X H8mm With High Shock Tolerance

Payment and Shipping:

1, Lead time about 3~5 days.

2, Payment: T/T; Western union; Paypal .

3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect

Contact Details:
Contact: Angel Sun
Tel: +86-13528847020
Email: Admin@winsunhk.cn
Skype: Angelsun618
Whatsapp: 13528847020
Wechat: 13528847020
QQ: 553695308
