Industrial Micro Piezo Buzzer 12v External Drive 20 ohm Coil Resistance Without Circuit
Industrial Micro Piezo Buzzer 12v External Drive 20 ohm Coil Resistance Without Circuit
Industrial Micro Piezo Buzzer 12v External Drive 20 ohm Coil Resistance Without Circuit
Industrial Micro Piezo Buzzer 12v External Drive 20 ohm Coil Resistance Without Circuit
Specifications
Brand Name :
WS
Model Number :
WS-1275DYP
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
Bubble + carton
Size :
D12XH7.5MM
Sound Output :
min.80dB
Rated voltage :
12V
Frenquency :
4000±500Hz
Rated Current :
Max 5mA
weight :
1g
operating voltage :
1-25v
Description

Piezoelectric / Micro Piezo Buzzer 12v Pin type D12xH7.5mm external Drive Without Circuit

We also can make uncommon product per customers requirements.

Features:
* small size
* High efficient
* Short lead time & Low Price.
* Rated Voltage: 12v
* Max Rated Current: 5mA
* Sound Output at 30cmt: min.80dB


Applications:
* Children's toys
* Alarm Medical equipments
* Telecommunication
* Security
* Household appliances

* Audio and Video Products
* Etc.......


Typical Specificaton

SPECIFICATION:

Model NO 12075CY4012P
sound Pressure level(dB/)at4.0K/10cm Min. 80dB
Resonant Frequency 4000±500Hz
Capacitance at 1KHz 10000pF±30%
Rated Voltage 12.0Vp-p
Rated Current Max 5.0mA
Coil resistance 20±5 ohm
Operating Voltage 1.0～25.0 Vp-p
Operating Temperature -20 ℃~+70 ℃
Storage Temperature -30 ℃~+80 ℃

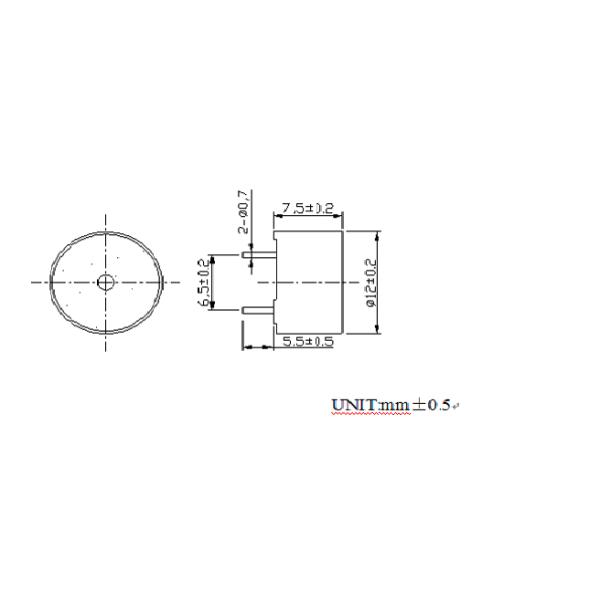

Apperiance Drawing:

Industrial Micro Piezo Buzzer 12v External Drive 20 ohm Coil Resistance Without Circuit

Industrial Micro Piezo Buzzer 12v External Drive 20 ohm Coil Resistance Without Circuit
