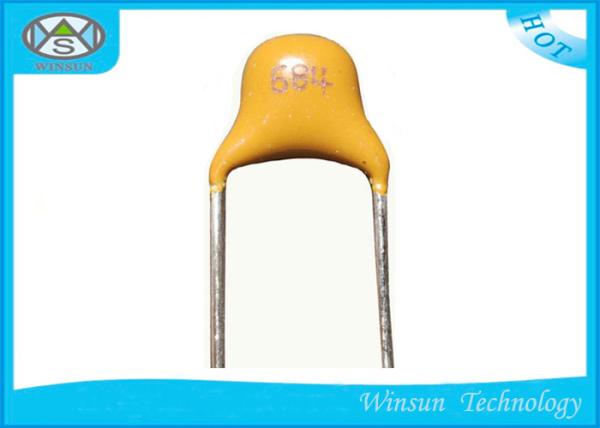

Yellow Monolithic Ceramic Capacitor Good Insulation For Micro Electronic Devices
Yellow Monolithic Ceramic Capacitor Good Insulation For Micro Electronic Devices
Yellow Monolithic Ceramic Capacitor Good Insulation For Micro Electronic Devices
Yellow Monolithic Ceramic Capacitor Good Insulation For Micro Electronic Devices
Specifications
Brand Name :
WS
Model Number :
WS-MLCM-Cap
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
500pcs
Price :
Lowest price
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic bag + carton
Color :
Yellow
Material :
Ceramic
Rated Voltage :
4v-100v
Package :
DIP
Quality :
High quality
Delivery :
Fast
Shipping :
By DHL, FEDEX, TNT ,UPS,EMS ect.
Description

Multilayer Ceramic Capacitor / High Quality WS-MLCM Series Monolithic Capacitor

Product Discription:

Using ceramics as a medium, copper or tin-plated steel wire as the lead wire, coated with epoxy resin.
Features:Disc type, one-way leads to the wire; high withstand voltage , good insulation, low-loss
Range of Applications:Widely used in electronic precision instruments, all sorts of small electronic equipment can be used in resonance, coupling, filter, and bypass.

Capacitance Range: 1pF~1uf
Operating Temperature: -55~+125°C(Y5V:-25~+85°C)
Rated Voltage: 4V~100V

Capacitance Precision: +/-1%;+/-5%;+/-10%;+/-20%;+80/-20%
Insulation Resistance: ≥ 1000MΩ or ≥ 100Ω • F
The Loss Tangent: ≤0.025 (Y5V: ≤0.05)
Temperature Characteristic: NPO: 0±30ppm/°C,X7R:≤ ±15%
Rate of Change of Capacitance : ≤±15%; Q/D.F.:≤0.07;I.R.:≥1000MΩ or ≥500•F

Applications:
Small and micro electronic devices(such as liquid crystal watches and micro-equipment)
Electronic precision instruments
Mainly used in the circuit of bypass, filter , coupling etc .


Specifications:

item test standard
NP0(CH) X7R(B) Z5U(E) Y5V(F)
capacitance(C) 25ºC,1MHz,1.0Vrms 25ºC,1KHz,1.0Vrms,C≥10uF,120Hz,0.5Vrms
in the tolerrance
dissipation factor(DF) C≥30P,Q≥1000;
C<30P,Q≥400+20*C		 C<0.033uF,DF≤3.5%,
C≥0.033uF,DF≤5.0%		 ≤5% C≥220NF<7.0%;
C<220NF,≤5.0%
insulation resistance(IR) Ur<500V,TV=Ur;
Ur≥500V,TV=500V;
C≤10nF,IR≥10000MΩ,
C>10nF,R*C≥100S		 C≤25nF,IR≥4000MΩ;
C>25nF,R*C≥100S
withstanding voltage Ur≤100V,TV=2.5Ur;
200V≤Ur≤1000V,TV=1.5Ur;
Ur>1000V,TV=1.2Ur;

Yellow Monolithic Ceramic Capacitor Good Insulation For Micro Electronic Devices
